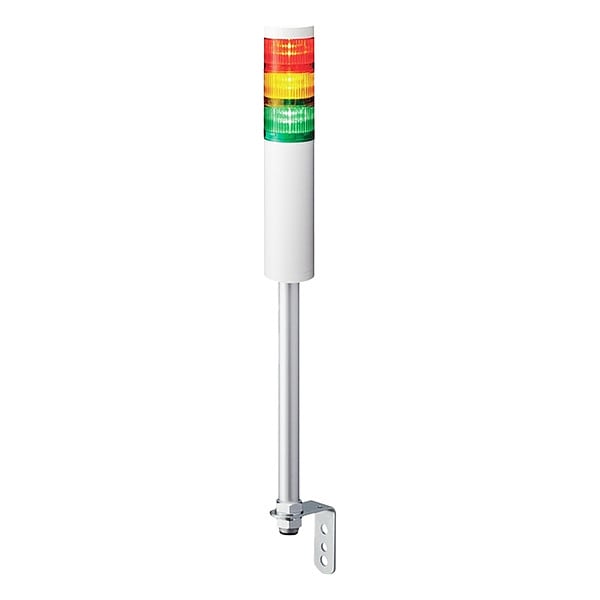

Tower Light Assemblies
Mfr # LR6-3M2LJNW-RYG
Zoro # G712481323
product price:Â $267.99
/ea
Free Shipping & Returns
Key Features
Standards
UL 508, CSA-C22.2 No. 14EMC Directive (EN 61000-6-4, EN 61000-6-2)RoHS Directive (EN IEC 63000)FCC Part 15 Subpart B Class A
Voltage
100 to 240V AC
Overall Diameter
60 mm
Number of Light Tiers
3
Mounting Mechanism
Bracket
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- LR6-3M2LJNW-RYG
- Zoro #
- G712481323
- UPC #
- -
- Country of Origin
- Indonesia
Dimensions
- Overall Diameter
- 60 mm
Details
- Item
- Tower Light Assembly
- Standards
- UL 508, CSA-C22.2 No. 14EMC Directive (EN 61000-6-4, EN 61000-6-2)RoHS Directive (EN IEC 63000)FCC Part 15 Subpart B Class A
- Voltage
- 100 to 240V AC
- Number of Light Tiers
- 3
- Mounting Mechanism
- Bracket
- Housing Color
- Off White
- Wattage
- 1.3 W
- Operating Temperature - Minimum
- -20 Degrees C
- Includes Sounder Tier
- No Sounder Tier
- Operating Temperature - Maximum
- 50 Degrees C
- Light Tier Color
- Amber, Green, Red
- Connection Type
- Wire Leads
- Operating Current
- Max. 0.135 A, Typ. 0.12A
- NEMA Rating
- NEMA 13, NEMA 4X
- For Location
- Indoor
- Light Source
- LED
- Control Protocol
- Direct Wire
- Light Intensity
- 2,000 mcd
- Water Resistance
- Water Resistant
- Includes Mounting Hardware
- Mounting Hardware Included
- IP Rating
- IP54
- Operating Voltage
- 100 to 240V AC
Description
NEMA Rating NEMA 13, NEMA 4X, Not Applicable Flashes per Minute, Standards UL 508, CSA-C22.2 No. 14EMC Directive (EN 61000-6-4, EN 61000-6-2)RoHS Directive (EN IEC 63000)FCC Part 15 Subpart B Class A, Tower Light Assembly
