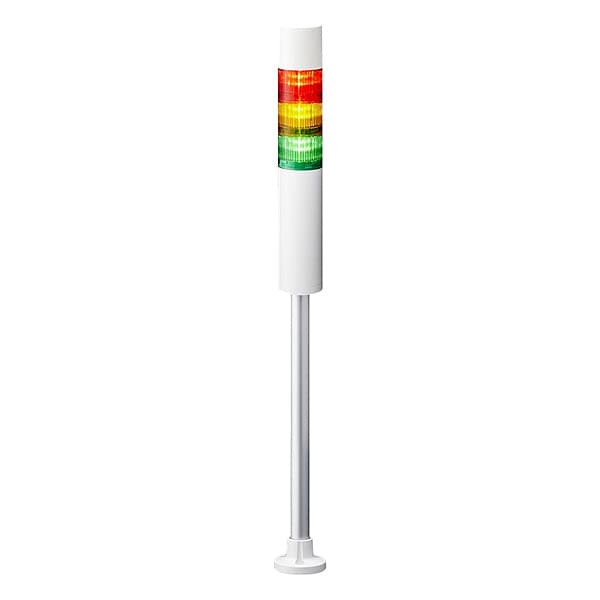

Patlite Tower Light Assemblies LR6-3M2PJBW-RYG - main

Tower Light Assemblies

  • Mfr # LR6-3M2PJBW-RYG

  • Zoro # G812481346

product price:  $330.99
/ea
Free Shipping & Returns

Key Features

Standards
UL 508, CSA-C22.2 No. 14EMC Directive (EN 61000-6-4, EN 61000-6-2)RoHS Directive (EN IEC 63000)FCC Part 15 Subpart B Class AKC (KN 61000-6-4, KN 61000-6-2)Low Voltage Directive(IEC/EN60947-5-1,EN62471)
Voltage
100 to 240V AC
Overall Diameter
60 mm
Flashes per Minute
60
Includes Sounder Tier
Sounder Tier Included
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LR6-3M2PJBW-RYG
Zoro #
G812481346
UPC #
-
Country of Origin
Indonesia

Dimensions

Overall Diameter
60 mm

Details

Item
Tower Light Assembly
Standards
UL 508, CSA-C22.2 No. 14EMC Directive (EN 61000-6-4, EN 61000-6-2)RoHS Directive (EN IEC 63000)FCC Part 15 Subpart B Class AKC (KN 61000-6-4, KN 61000-6-2)Low Voltage Directive(IEC/EN60947-5-1,EN62471)
Voltage
100 to 240V AC
Flashes per Minute
60
Includes Sounder Tier
Sounder Tier Included
Light Intensity
2,000 mcd
Light Source
LED
Housing Color
Off White
Connection Type
Wire Leads
Number of Light Tiers
3
Operating Current
Max. 0.385 A, Typ. 0.16 A
Light Tier Color
Amber, Green, Red
Operating Temperature - Minimum
-20 Degrees C
For Location
Indoor
Includes Mounting Hardware
Mounting Hardware Included
Water Resistance
Water Resistant
Wattage
1.3 W
Mounting Mechanism
Bracket
Sound Style
Buzzer
Control Protocol
Direct Wire
Operating Temperature - Maximum
50 Degrees C
Sound Volume - Maximum
88 dB
Light Operating Mode
Flashing, Steady
IP Rating
IP65
NEMA Rating
NEMA 13, NEMA 4X
Sound Operating Mode
Steady, Intermittent
Operating Voltage
100 to 240V AC

Description

NEMA Rating NEMA 13, NEMA 4X, 60 Flashes per Minute, Standards UL 508, CSA-C22.2 No. 14EMC Directive (EN 61000-6-4, EN 61000-6-2)RoHS Directive (EN IEC 63000)FCC Part 15 Subpart B Class AKC (KN 61000-6-4, KN 61000-6-2)Low Voltage Directive(IEC/EN60947-5-1,EN62471), Tower Light Assembly
