Shop FEDERAL SIGNAL

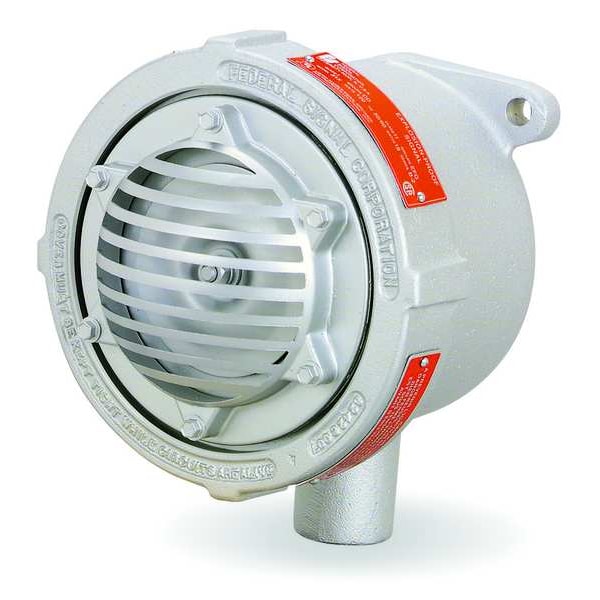

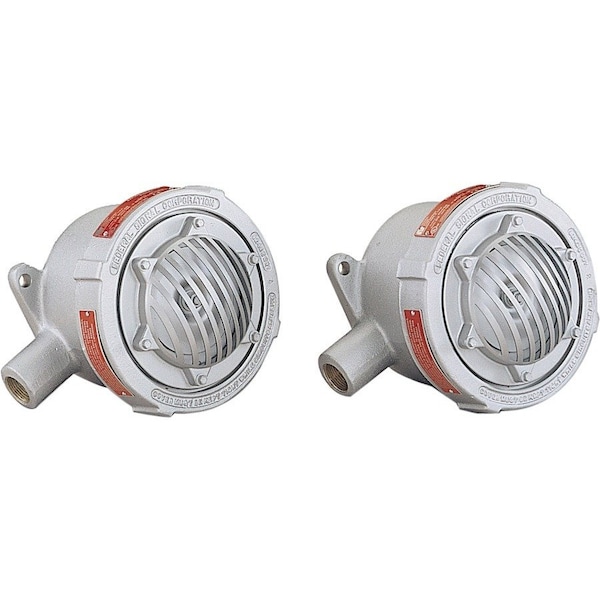

Vibrating Horn, Horn, Continuous, 120V AC, 100 dB, Aluminum, Gray, Conduit Mount

  • Mfr # 31X-120-3

  • Zoro # G1953427

product price:
$
1,320.99
/ea
Free Shipping & Returns

Key Features

Housing Material
Aluminum
Mounting
Conduit
Amps
0.20 AC
Diameter
6.5 in
Color
Gray
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
31X-120-3
Zoro #
G1953427
UPC #
782979225706
Country of Origin
United States

Dimensions

Diameter
6.5 in
Height
7.625 in
Depth
6.5 in
Width
6.5 in
Overall Width
6 1/2 in
Overall Depth
6 1/2 in
Overall Length
7 5/8 in
Overall Diameter
6 1/2 in
Wire Rope Length
7 5/8 in
Length
7 5/8 in

Details

Item
Vibrating Horn
Housing Material
Aluminum
Mounting
Conduit
Amps
0.20 AC
Color
Gray
Audible Alarm Type
Horn
Voltage
120V AC
Standards
CSA Certified, cUL Listed, UL Listed
Indoor/Outdoor
Indoor
Decibels
100 dB
Sound Pattern
Continuous
Hazardous Division
1
Vibrating
Yes
Operating Temp.
-35 Degrees to 150 Degrees F
Visual Indicator Type
No Visual Indicator
Hazardous Class
I
Power Source
Wire
Includes
Stainless Steel Diaphragms
Alarm Type
Audible
Input Voltage
120 V AC
Features
Corrosion Resistant Vibrating Horns
Rating
NEMA 4X
Product Type
Horn
Material
Aluminum
For Location
Indoor
Control Protocol
Direct Wire
Sound Continuity
Continuous
Alarm Volume @ 10 ft - Maximum
100 dBA
Sound Style
Horn
Volume Selection
Fixed Volume
Connection Type
Wire Leads
For Hazardous Location
Class I, Division 1, Class II, Division 1
Operating Temperature - Maximum
104 Degrees F
NEMA Rating
NEMA 4X
Operating Temperature - Minimum
-13 Degrees F
Vibration
Vibrating
Mounting Style
Surface Mount
IP Rating
NEMA 4X
Operating Current
0.20 A
Sound Principle
Vibrating
Legend
Non applicable
Alarm Volume @ 1 m - Maximum
110 dBA
Operating Voltage
120V AC
Power Source - TS Only
Wire
Power Source - old
Wire

Description

FEDERAL SIGNAL 31X-120-3 is an audible vibrating horn for indoor installations. It produces a continuous horn signal at 120V AC and features an aluminum housing in a gray finish. The unit uses conduit mounting with wire lead connection and is rated for hazardous locations, including Class I, Division 1 and Class II, Division 1.

Key Features:

  • Alarm type: Audible horn with continuous sound pattern
  • Sound output: 100 dB at 10 ft; maximum 110 dBA at 1 m
  • Voltage/current: 120V AC operating voltage, 0.20 A operating current
  • Construction: Aluminum housing with stainless steel diaphragms
  • Mounting/connection: Conduit mount, surface mount style, wire leads, direct wire control
  • Protection rating: NEMA 4X
  • Hazardous location rating: Class I, Division 1; Class II, Division 1
  • Operating temperature: -35 degrees to 150 degrees F
  • Size: 7.625 in H x 6.5 in W x 6.5 in D
  • Additional feature: Aluminum housing with stainless steel diaphragms
  • Standards: CSA Certified, cUL Listed, UL Listed
