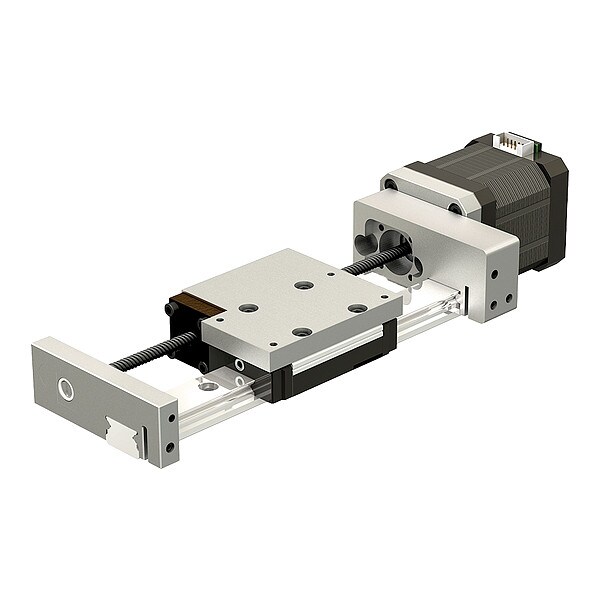

Compact Linear Actuator, 5,590 N, Ball
Mfr # CSLSM06AGXR3A1-2SN-0200-0
Zoro # G509769122
product price:Â
$
1,012.99
/ea
Free Shipping & Returns
Key Features
Overall Height
67.8 mm
Rail System Type
Profile Rail
Bearing Load Capacity
5,590 N
Speed
4,200 mm/sec
Motor Mount Option
NEMA 17 Single Stack
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- CSLSM06AGXR3A1-2SN-0200-0
- Zoro #
- G509769122
- UPC #
- -
- Country of Origin
- United States
- Item
- Compact Linear Actuator
- Rail System Type
- Profile Rail
- Bearing Load Capacity
- 5,590 N
- Speed
- 4,200 mm/sec
- Motor Mount Option
- NEMA 17 Single Stack
- Carriage Type
- Profile Rail
- Drive End Option
- PBC Linear Integrated Motor Screw
- Lubricant
- Oil Based Lithium Soap Grease
- Motor Type
- Stepper Motor
- Nut Type
- Anti-Backlash
- Carriage Bearing Moment Load Capacity
- 13.1 Nm (My), 13.1 Nm (Mz), 20.2 Nm (Mx)
- Bearing Type
- Ball
- Screw Type
- Lead Screw
- Number of Carriages Included
- 1
- Cover Type
- No Cover
- Drive Input Speed
- 3,000 RPM
- Voltage Rating
- 24V
- Acceleration
- 50 m/sq sec
- Repeatability
- 0.02 mm
- Travel Speed
- 4,200 mm/sec
- Lubricant Type
- Oil Based Lithium Soap Grease
- Maximum Acceleration
- 50 m/sq sec
Description
Compact Linear Actuator, Carriage Type Profile Rail, Rail System Type Profile Rail, Screw Diameter 6 mm, Lead Diameter 6 mm, Repeatability 0.02 mm, Motor Mount Option NEMA 17 Single Stack, Drive End Option PBC Linear Integrated Motor Screw, Nut Type Anti-Backlash, Number of Carriages Included 1, Cover Type No Cover, Stroke Length 10 mm, Rail Length 200 mm, Overall Height 67.8 mm, Bearing Type Ball, Bearing Load Capacity 5,590 N, Motor Type Stepper Motor, Maximum Acceleration 50 m/sq sec
