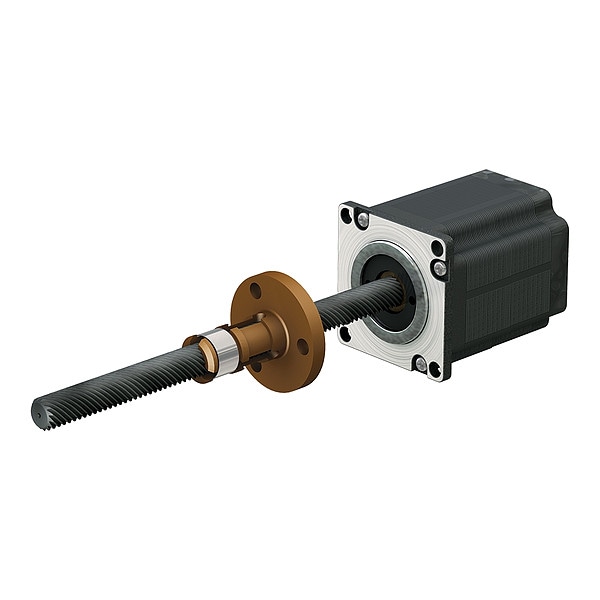

Precion Lead Screw, 0.003 in/ft Lead
Mfr # LSR1605T-0500-RCF-231-NNN-N
Zoro # G109788554
product price:Â $384.99
/ea
Free Shipping & Returns
Key Features
Nut Material
Stainless Steel
Screw Material Grade
300
Travel per Step
0.025 mm
Motor IP Rating
IP40
Step Accuracy
+/-5%
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- LSR1605T-0500-RCF-231-NNN-N
- Zoro #
- G109788554
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Nut Mounting Hole Diameter
- 5.6 mm
- Nut Bolt Circle Diameter
- 44.5 mm
- Motor Size
- NEMA 23
- Nut Length
- 49.5 mm
- Lead Length
- 5 mm
- Nut Diameter
- 20.3 mm
- Nut Flange Thickness
- 6.4 mm
- Nut Flange Diameter
- 54 mm
- Motor Length
- 79.0 mm
- Screw Diameter
- 16 mm
- Screw Length
- 500 mm
Description
Precision Lead Screw, Nut Type Anti-Backlash, Coating Material PTFE, Screw Material Stainless Steel, Screw Material Grade 300, Frame NEMA 23, Nut Shape Round, Insulation Class B, Screw Diameter 16 mm, Lead Length 5 mm, Screw Length 500 mm, Nut Length 49.5 mm, Nut Flange Diameter 54 mm, Motor Length 79.0 mm, Rated Current 2.2 A, Steps per Revolution 200, Motor IP Rating IP40, Phase 2, Motor Maximum Operating Temperature 50 Degrees C, Motor Minimum Operating Temperature -20 Degrees C
