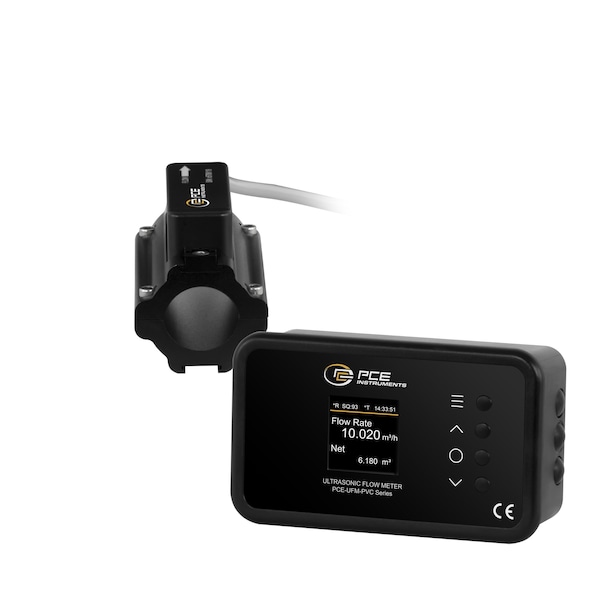

Clamp-on ultrasonic flow meter, 0.03-5 m/s for DN20 PVC with PoE and Ethernet
Mfr # PCE-UFM 20PVC
Zoro # G922432597
product price:Â
$
1,637.99
/ea
Free Shipping & Returns
Key Features
Pipe Material
PVC
Length
2.56 in
Measured Medium
Water
Includes
1 x Flow Meter PCE-UFM 20PVC, 1 x Sensor with Ethernet cable 9 m, 1 x PoE network cable 2 m, 1 x Ultrasonic contact gel, 1 x Silicone seal 1 m, 4 x Coupling pad, 1 x Allen key, 1 x User manual
Pipe Size
DN20 (21 to 29 mm)
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- PCE-UFM 20PVC
- Zoro #
- G922432597
- UPC #
- -
- Country of Origin
- China
Dimensions
- Length
- 2.56 in
- Pipe Size
- DN20 (21 to 29 mm)
- Width
- 4.37 in
Details
- Pipe Material
- PVC
- Measured Medium
- Water
- Includes
- 1 x Flow Meter PCE-UFM 20PVC, 1 x Sensor with Ethernet cable 9 m, 1 x PoE network cable 2 m, 1 x Ultrasonic contact gel, 1 x Silicone seal 1 m, 4 x Coupling pad, 1 x Allen key, 1 x User manual
- Resolution
- 0.01-m/s
- Accuracy (%)
- ±2 % of Rd (0.3 to 5-m/s)
- For Use With
- Measurements on PVC pipes with a diameter between 21 and 29 mm
- Repeatability
- 0.20%
- Flow Range
- 0.03 to 5-m/s
Description
Our ultrasonic flow test instrument offers the capability to measure flow rates from +/-0.1 m/s to +/-5 m/s using ultrasonic technology. This flow meter is suitable for small pipes with a diameter of DN25 / 1 in and is compatible with various pipe materials such as steel, copper, aluminum, and plastics. Due to its compact design, it can be quickly and easily mounted on the pipe. The flow meter's display provides information on flow velocity, date, and time. In another view, it also displays the volume flow rate for the day, month, and year. Additionally, the flow meter can output the measurement value as an analog signal (4 ... 20mA) and digitally via an RS485 interface. With a power supply range of 9 ... 36 V DC, the ultrasonic flow test instrument is highly versatile and can be used in a wide range of applications. It comes with a 2m connection cable and coupling pads for improved signal transmission. This flow meter can be used in various applications, including heating systems, cooling water systems, and industrial processes where flow monitoring and control are necessary.
