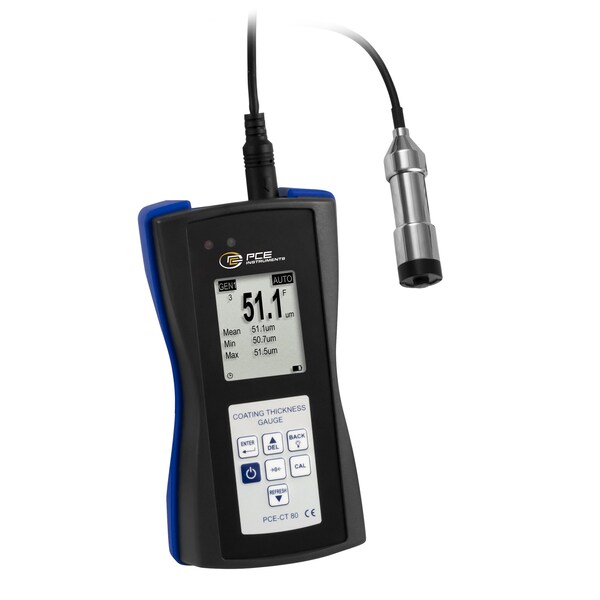

Coating thickness meter for Fe/NFe substrates, measures 0-3000 micron with +/-2% accuracy
Mfr # PCE-CT 80-FN3
Zoro # G722432261
product price:Â $1,243.99
/ea
Free Shipping & Returns
Key Features
Measuring Range
Fe: 0 to 5000 µm; NFe: 0 to 3000 µm
Measurable Materials
For Measurements On Iron/Steel and Non-Ferrous Metals
Data Transfer
USB 2.0
Includes
3 x AAA batteries, 1 x Instruction manual, 1 x Carrying case, 1 x Set of standard foils, 1 x Calibration plates (Fe and NFe)
Memory
DIR (volatile) + 4 GEN groups, max. 2000 readings
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
MFR #
PCE-CT 80-FN3
Zoro #
G722432261
UPC #
-
Country of Origin
Germany
Dimensions
Min. Radius Of Curvature Concave
25 mm / 0.98 in
Width
2.8 in
Min. Radius Of Curvature Convex
5 mm / 0.19 in
Min. Substrate Thickness
0.2 mm / 0.008 in (on magnetic materials); 0.05 mm / 0.002 in (on non-magnetic materials)
Length
5.6 in
Details
Measuring Range
Fe: 0 to 5000 µm; NFe: 0 to 3000 µm
Measurable Materials
For Measurements On Iron/Steel and Non-Ferrous Metals
Data Transfer
USB 2.0
Includes
3 x AAA batteries, 1 x Instruction manual, 1 x Carrying case, 1 x Set of standard foils, 1 x Calibration plates (Fe and NFe)
Memory
DIR (volatile) + 4 GEN groups, max. 2000 readings
Accuracy
±(2 % of reading + 1 µm)
Min. Measuring Surface
Ø17 mm / 0.67"
For Use With
For the non-destructive measurement of coatings (varnishes, paints, plastics ) on steel / iron and non-ferrous metals
Alarm
Display when adjustable upper/lower alarm limit exceeded
Resolution (In./mm)
0.1 µm (<100 µm); 1 µm (>100 µm)
Calibration
Multi-point 1–4 points per group, Zero calibration
Statistics
Count, Mean, Min, Max, Standard Deviation
Application
For the non-destructive measurement of coatings (varnishes, paints, plastics ) on steel / iron and non-ferrous metals
Units
µm, mm, mils
Probe Mode
Auto (Fe+NFe); Magnet (Fe); Eddy current (NFe)
Description
The thickness meter is a measuring device for the non-destructive measurement of coatings (varnishes, paints, plastics ...) on steel / iron and non-ferrous metals. Thanks to the externally connected sensor on the coating thickness gauge, measuring points that are difficult to access can also be easily reached. The menu navigation of the coating thickness gauge allows easy adjustment and setting to new parameters and makes this handy coating thickness gauge an indispensable measuring device for control measurements in production, workshop and quality assurance. The thickness meter is also ideal for immediately determining and assessing accident damage to vehicles, for example, but the coating thickness gauge can also be used optimally in the industrial sector for incoming and outgoing inspection and material testing in production. The ergonomically designed thickness meter with external sensor allows you to rapidly determine measurement results with high accuracy. The coating thickness gauge measures non-magnetic layers such as paint, plastic, chrome, copper, zinc, enamel, etc. on steel/iron, as well as non-conductive layers such as paint, plastic, enamel, paper, glass, rubber, etc. on copper, aluminum , brass and stainless steel, as well as anodized aluminum.
