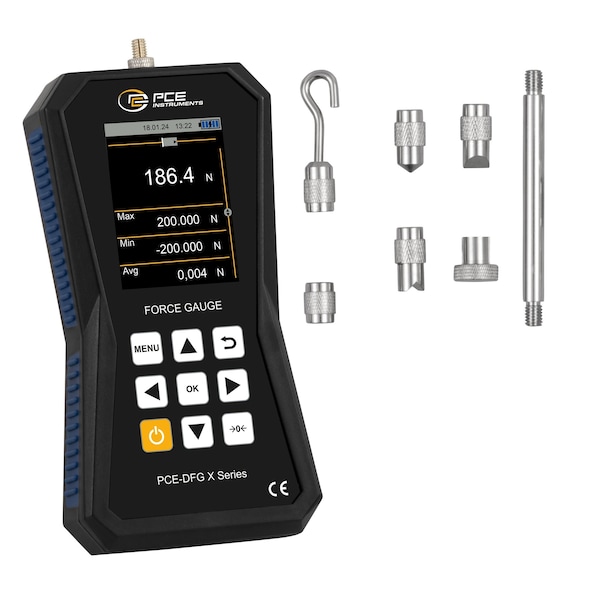

Force gauge for tension and compression, measures 200 N / 44.96 lbf with high resolution
Mfr # PCE-DFG 200 X
Zoro # G822432345
product price:Â $1,182.99
/ea
Free Shipping & Returns
Key Features
Memory Interval Up To
7200 Hz
Memory Medium
Internal memory
Display Size
2.8 in
Automatic Switch-Off Adjustable
1 to 15 min.
For Use With
To measure both tensile and compressive forces
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- PCE-DFG 200 X
- Zoro #
- G822432345
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Display Size
- 2.8 in
- Width
- 3.35 in
- Length
- 6.5 in
Details
- Memory Interval Up To
- 7200 Hz
- Memory Medium
- Internal memory
- Automatic Switch-Off Adjustable
- 1 to 15 min.
- For Use With
- To measure both tensile and compressive forces
- Operating Time
- 13 Hrs
- Adjustable Measurement Rate
- 1 to 7200 Hz
- Includes
- 1 x Adapter set, 1 x Suitcase, 1 x USB-C cable, 1 x PC software, 1 x User manual
- Measuring Range
- 0 to 200 N
- Measuring Units
- N, kg, t, kN, Pa, kPa, Nm, Ncm, lb, ft, g
- Application
- To measure both tensile and compressive forces
- Memory Interval Of
- 1 Hz
- Storage Capacity
- 32 GB
- Resolution
- 0.1 N
- Accuracy
- ± 0.05 % F.S
- Alarm Modes
- Inside, Outside, Crack, Switch off
- Alarm
- Optical, acoustic
- Automatic Switch-Off Can Be Deactivated
- Yes
Description
The Force Gauge / Digital Force Gauge can be used to measure both tensile and compressive forces with high accuracy. Tensile and compressive forces are often measured in the test laboratory. For example, to determine the yield point, the tear-off force or the force required to actuate buttons or switches. The Force Gauge / Digital Force Gauge has an internal measuring cell and can measure forces up to 200 N / 45 lbf. Various eyelets or hooks with M6 threads can be attached to the measuring cells. It is also possible to attach your own devices to the measuring cell using these threads. The internal memory of 32 GB offers space for 30 million measuring points. This allows measurement logs to be created, saved and exported. The Force Gauge / Digital Force Gauge has a USB-C interface that can be used to read the measurement data into the PC software. The Force Gauge / Digital Force Gauge is equipped with a graphic LCD that displays the measured values both numerically and graphically. In addition, a bar chart shows the measured value in the selected measuring range. Various force test stands are available for adapting the Force Gauge / Digital Force Gauge.
