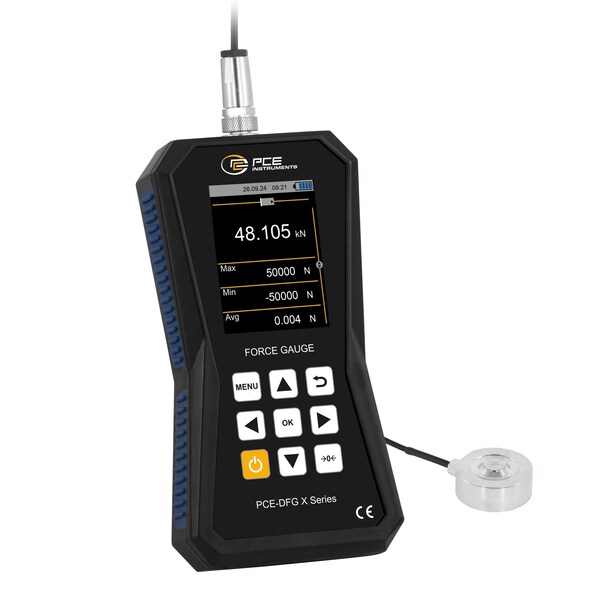

Force gauge for tension and compression, measures 50,000 N / 11,240 lbf with high resolution
Mfr # PCE-DFG 50K XF
Zoro # G522432393
product price: $2,616.99
/ea
Free Shipping & Returns
Key Features
Application
For measuring compressive forces at hard-to-reach measuring points
Storage Interval To
7200 Hz
Display Size
2,8 in
Display
LCD with backlight
Measuring Units
N, kg, g, t, kn, Pa, kPa, Nm, Ncm, lb, ft
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
MFR #
PCE-DFG 50K XF
Zoro #
G522432393
UPC #
-
Country of Origin
Germany
Dimensions
Display Size
2,8 in
Width
3.35 in
Length
6.5 in
Details
Application
For measuring compressive forces at hard-to-reach measuring points
Storage Interval To
7200 Hz
Display
LCD with backlight
Measuring Units
N, kg, g, t, kn, Pa, kPa, Nm, Ncm, lb, ft
Interface
USB-C
Storage Interval From
1 Hz
Adjustable Measuring Rate
1 to 7200 Hz
Storage Capacity
32 GB
Automatic Power-Off Can Be Deactivated
Yes
For Use With
For measuring compressive forces at hard-to-reach measuring points
Operating Time
13 Hrs
Accuracy
±0.05 % FS
Includes
1 x Pressure cell PCE-DFG 50K XF load cell, 1 x PC software, 1 x Suitcase, 1 x USB-C cable, 1 x Quick Start Guide
Resolution
5 N
Storage Medium
Internal memory
Measurement Range
0 to 50 kN
Description
The Tension Dynamometer / Tension Load Cell with an external pressure load cell is designed for measuring compressive forces at measuring locations that are difficult to access. The Tension Dynamometer / Tension Load Cell or rather the pressure load cell has several threaded holes at the bottom that allow it to be mounted securely. The load cell is connected to the Tension Dynamometer / Tension Load Cell via an approx. 3 m / 9.8 ft long sensor cable and, thanks to the compact cell dimensions, it can be used for a wide range of applications. The internal memory of 32 GB can hold 30 million measuring points. This allows measurement protocols to be created, saved and exported. The Tension Dynamometer / Tension Load Cell has a USB-C interface that can be used to import the measurement data into the PC software. The device is equipped with a graphic LCD that displays the measured values both numerically and graphically. In addition, a bar chart shows the measured value within the selected measurement range. The measuring cell is IP67 protected and can therefore also be used in rough industrial environments.
