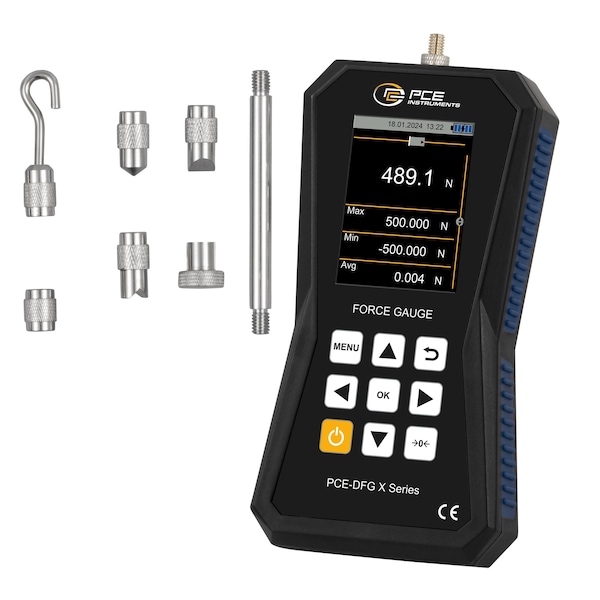

Force gauge for tension and compression, measures 500 N / 112.4 lbf with high resolution
Mfr # PCE-DFG 500 X
Zoro # G122432441
product price:Â $1,236.99
/ea
Free Shipping & Returns
Key Features
Includes
1 x Adapter set, 1 x Suitcase, 1 x USB-C cable, 1 x PC software, 1 x User manual
Width
3.35 in
Automatic Switch-Off Adjustable
1 to 15 min
Length
6.5 in
Display Size
2.8 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- PCE-DFG 500 X
- Zoro #
- G122432441
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Width
- 3.35 in
- Length
- 6.5 in
- Display Size
- 2.8 in
Details
- Includes
- 1 x Adapter set, 1 x Suitcase, 1 x USB-C cable, 1 x PC software, 1 x User manual
- Automatic Switch-Off Adjustable
- 1 to 15 min
- Resolution
- 0.1 N
- Memory Interval Of
- 1 Hz
- Operating Time
- 13 Hrs
- Measuring Range
- 0 to 500 N
- Adjustable Measurement Rate
- 1 to 7200 Hz
- Alarm
- Optical, acoustic
- For Use With
- To measure both tensile and compressive forces
- Application
- To measure both tensile and compressive forces
- Automatic Switch-Off Can Be Deactivated
- Yes
- Memory Interval Up To
- 7200 Hz
- Accuracy
- ± 0.05 % F.S
- Measuring Units
- kPa, kg, g, ft, N, lb, t, kN, Pa, Nm, Ncm
- Memory Medium
- Internal memory
- Display
- LCD with illumination
- Storage Capacity
- 32 GB
Description
The Force Gauge / Digital Force Gauge can be used to measure both tensile and compressive forces with high accuracy. Tensile and compressive forces are often measured in the test laboratory. For example, to determine the yield point, the tear-off force or the force required to actuate buttons or switches. The Force Gauge / Digital Force Gauge has an internal measuring cell and can measure forces of up to 500 N / 112.4 lbf. Various eyelets or hooks with M6 threads can be attached to the measuring cells. It is also possible to attach your own devices to the measuring cell using these threads. The internal memory of 32 GB offers space for 30 million measuring points. This allows measurement logs to be created, saved and exported. The Force Gauge / Digital Force Gauge has a USB-C interface that can be used to read the measurement data into the PC software. The Force Gauge / Digital Force Gauge is equipped with a graphic LCD that displays the measured values both numerically and graphically. In addition, a bar chart shows the measured value in the selected measuring range. Various force test stands are available for adapting the Force Gauge / Digital Force Gauge.
