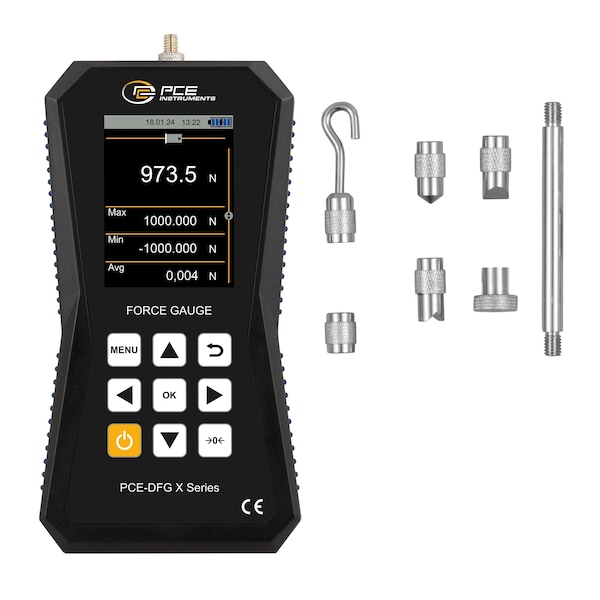

Force gauge for tension and compression, measures 1000 N / 224.8 lbf with high resolution
Mfr # PCE-DFG 1000 X
Zoro # G722432278
product price:Â
$
1,189.99
/ea
Free Shipping & Returns
Key Features
Memory Interval Up To
7200 Hz
Display
LCD with illumination
Includes
1 x Adapter set, 1 x Suitcase, 1 x USB-C cable, 1 x PC software, 1 x User manual
Automatic Switch-Off Adjustable
1 to 15 min
For Use With
To measure both tensile and compressive forces
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- PCE-DFG 1000 X
- Zoro #
- G722432278
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Display Size
- 2.8 in
- Width
- 3.35 in
- Length
- 6.5 in
Details
- Memory Interval Up To
- 7200 Hz
- Display
- LCD with illumination
- Includes
- 1 x Adapter set, 1 x Suitcase, 1 x USB-C cable, 1 x PC software, 1 x User manual
- Automatic Switch-Off Adjustable
- 1 to 15 min
- For Use With
- To measure both tensile and compressive forces
- Operating Time
- 13 Hrs
- Memory Medium
- Internal memory
- Measuring Range
- 0 to 1000 N
- Alarm
- Optical, acoustic
- Resolution
- 0.5 N
- Memory Interval Of
- 1 Hz
- Accuracy
- ± 0.05 % F.S
- Storage Capacity
- 32 GB
- Adjustable Measurement Rate
- 1 to 7200 Hz
- Automatic Switch-Off Can Be Deactivated
- Yes
- Measuring Units
- kPa, kg, g, ft, N, lb, t, kN, Pa, Nm, Ncm
- Application
- To measure both tensile and compressive forces
Description
The Tension Dynamometer / Tension Load Cell / Tension Load Cell can be used to measure both tensile and compressive forces with high accuracy. Tensile and compressive forces are often measured in the test laboratory. For example, to determine the yield point, the tear-off force or the force required to actuate buttons or switches. The device has an internal measuring cell and can measure forces up to 1000 N (224.8 lbf) . Various eyelets or hooks with M6 threads can be attached to the measuring cells. It is also possible to attach your own devices to the measuring cell with these threads. The internal memory of 32 GB offers space for 30 million measuring points. This allows measurement logs to be created, saved and exported. The Tension Tension Dynamometer / Tension Load Cell / Tension Load Cell has a USB-C interface that can be used to read the measurement data into the PC software. The Tension Tension Dynamometer / Tension Load Cell / Tension Load Cell is equipped with a graphic LCD that displays the measured values both numerically and graphically. In addition, a bar chart shows the measured value in the selected measuring range. Various force test stands are available for adapting the force transducer.
