Force gauge for tension and compression, measures 5000 N / 1,124 lbf with high resolution
Mfr # PCE-DFG 5K XF
Zoro # G422432288
product price:Â $1,874.99
/ea
Free Shipping & Returns
Key Features
Storage Interval From
1 Hz
Automatic Power-Off Can Be Deactivated
Yes
Display Size
2,8 in
Measuring Units
N, kg, g, t, kn, Pa, kPa, Nm, Ncm, lb, ft
Application
For measuring compressive forces at hard-to-reach measuring points
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
MFR #
PCE-DFG 5K XF
Zoro #
G422432288
UPC #
-
Country of Origin
Germany
Dimensions
Display Size
2,8 in
Width
3.35 in
Length
6.5 in
Details
Storage Interval From
1 Hz
Automatic Power-Off Can Be Deactivated
Yes
Measuring Units
N, kg, g, t, kn, Pa, kPa, Nm, Ncm, lb, ft
Application
For measuring compressive forces at hard-to-reach measuring points
Display
LCD with backlight
Interface
USB-C
Includes
1 x Pressure cell PCE-DFG 5K XF load cell, 1 x PC software, 1 x Suitcase, 1 x USB-C cable, 1 x Quick Start Guide
Operating Time
13 Hrs
Resolution
1 N
Storage Interval To
7200 Hz
Adjustable Measuring Rate
1 to 7200 Hz
Storage Medium
Internal memory
Accuracy
±0.05 % FS
Storage Capacity
32 GB
For Use With
For measuring compressive forces at hard-to-reach measuring points
Measurement Range
0 to 5000 N
Description

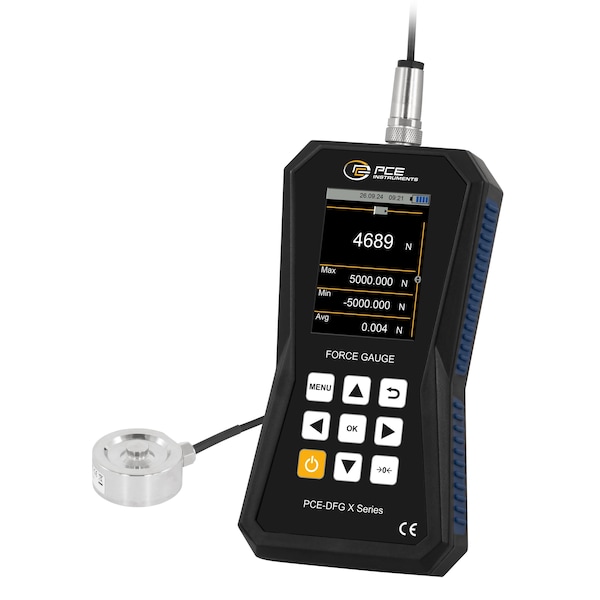

The Tension Dynamometer / Tension Load Cell with an external pressure load cell is designed for measuring compressive forces at measuring locations that are difficult to access. The Tension Dynamometer / Tension Load Cell or rather the pressure load cell has several threaded holes at the bottom that allow it to be mounted securely. The load cell is connected to the Tension Dynamometer / Tension Load Cell via an approx. 3 m / 9.8 ft long sensor cable and, thanks to the compact cell dimensions, it can be used for a wide range of applications. The internal memory of 32 GB can hold 30 million measuring points. This allows measurement protocols to be created, saved and exported. The Tension Dynamometer / Tension Load Cell has a USB-C interface that can be used to import the measurement data into the PC software. The device is equipped with a graphic LCD that displays the measured values both numerically and graphically. In addition, a bar chart shows the measured value within the selected measurement range. The measuring cell is IP67 protected and can therefore also be used in rough industrial environments.
