Lux Meter
Mfr # PCE-LXT-TRM
Zoro # G916547122
product price: $336.99
/ea
Free Shipping & Returns
Key Features
Includes
1 x External light sensor probe with 1.5 m / 4.9 in long cable, 1 x Wall-mounting bracket, 1 x User manual
Sensor
Photodiode with color correction filter according to CIE
Resolution
0.1 lx / 1 lx
Features
Measuring range: 0 - 50,000 lux (lx) in three ranges, Resolution: 0.1 lx / 1 lx depending on range, Accuracy: ± 5% of reading, 4 - 20-mA analog output and control relay
Cord Length
1.5 m / 4.9 ft
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- PCE-LXT-TRM
- Zoro #
- G916547122
- UPC #
- -
- Country of Origin
- Taiwan, Province of China
Dimensions
- Cord Length
- 1.5 m / 4.9 ft
- Length
- 3.2 in
- Width
- 4.2 in
Details
- Includes
- 1 x External light sensor probe with 1.5 m / 4.9 in long cable, 1 x Wall-mounting bracket, 1 x User manual
- Sensor
- Photodiode with color correction filter according to CIE
- Resolution
- 0.1 lx / 1 lx
- Features
- Measuring range: 0 - 50,000 lux (lx) in three ranges, Resolution: 0.1 lx / 1 lx depending on range, Accuracy: ± 5% of reading, 4 - 20-mA analog output and control relay
- Accuracy
- ±5% of reading ±10 digits (<10,000 lux); ±10% of reading ±10 digits (>10,000 lux)
- Environmental Conditions
- Max. 80%RH, 0 to 50°C
- Housing Material
- ABS plastic
- Protection Type
- IP54
- Measurement Range
- 0 - 50,000 lux in three ranges
- Repeatability
- ±5%
- Powered By
- By the transmitter of the light transducer
- Output
- 4 - 20 mA
- Transmitter Supply
- 90 - 260V AC
- Calibration
- Adjustable via slave screw of light transducer
- For Use With
- A lx warning system that has continuous light measurement and light monitoring of photo laboratories and production rooms (e.g. food or drug production ...)
- Application
- A lx warning system that has continuous light measurement and light monitoring of photo laboratories and production rooms (e.g. food or drug production ...)
Description

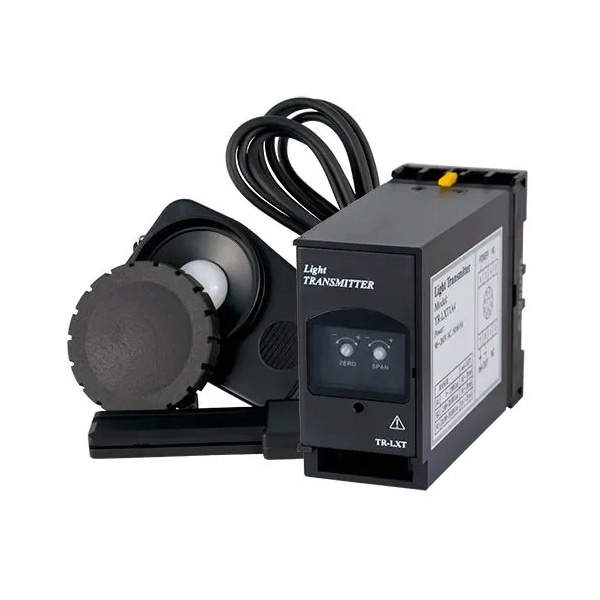

This is a fixed-mount lux meter consisting of a transmitter unit and an external light sensor probe with a 1.5 m / 4.9 ft long cable and wall-mounting bracket. This lux meter allows for the continuous monitoring of light exposure in the workplace. Ideal for use in photography laboratories and production facilities manufacturing light-sensitive food and medical products, the lux meter can be used to control an alarm not included or to save the signals from the transmitter to a data logger not included for documentation and review.HIGHLIGHTS- Measuring range: 0 ... 50,000 lux lx in three ranges- Resolution: 0.1 lx / 1 lx depending on range- Accuracy: ± 5% of reading- 4 to 20-mA analog output and control relay
