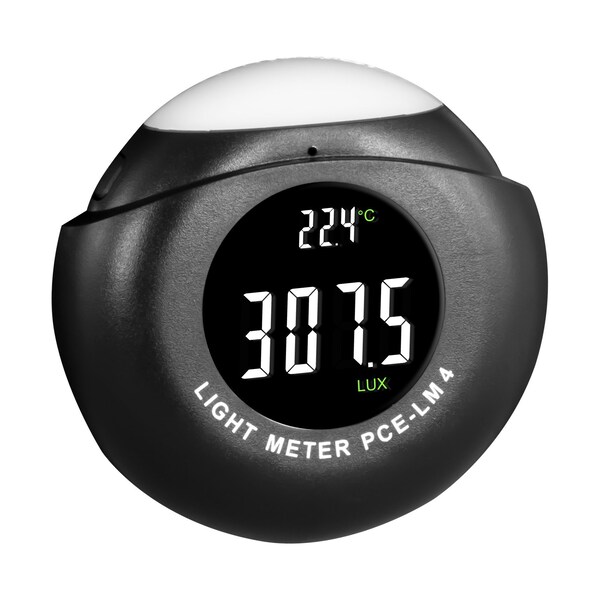

Lux Meter
Mfr # PCE-LM 4
Zoro # G116547120
product price:
$
56.59
/ea
Key Features
Includes
1 x Case, 2 x 1.5V AAA battery, 1 x Operating instructions
Auto Power Off
15 min
Operating Time
60 Hrs
For Use With
Ideal measuring device for anyone who wants to take quick light measurements
Temp. Measuring Range
-20°C - +70°C, Resolution 0.1°C, Accuracy ±1.5°C; -4°F - +158°F, Resolution 0.1°F, Accuracy ±2.7°F
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- PCE-LM 4
- Zoro #
- G116547120
- UPC #
- -
- Country of Origin
- China
- Includes
- 1 x Case, 2 x 1.5V AAA battery, 1 x Operating instructions
- Auto Power Off
- 15 min
- Operating Time
- 60 Hrs
- For Use With
- Ideal measuring device for anyone who wants to take quick light measurements
- Temp. Measuring Range
- -20°C - +70°C, Resolution 0.1°C, Accuracy ±1.5°C; -4°F - +158°F, Resolution 0.1°F, Accuracy ±2.7°F
- Features
- Measuring range up to 200 klx or 20 kfc, Resolution from 0.1 lx, Measuring accuracy: ±3% + 8 digits, MIN / MAX / HOLD, Ambient temperature measurement, Memory for 12 measured values
- Menu Language
- English
- Units
- lx, fc, °C, °F
- Memory
- Internal memory, capacity 12 values
- Light Measuring Range
- Measurement Functions
- MIN, MAX, HOLD
- Application
- Ideal measuring device for anyone who wants to take quick light measurements
- Automatic Switch-Off
- 15 min
- Memory Capacity
- 12 values
- Light Resolutions
- 0.1 lx, 1 lx, 0.01 fc, 0.1 fc
- Display Refresh Rate
- 2 x per second
- Display Type
- LCD with illumination
- Temperature Resolution
- 0.1°C / 0.18°F
- Protection Class (Device)
- IP20
- Temperature Accuracy
- ±1.5℃ / ±2.7°F
- Light Measuring Ranges
- 0 lx to 999.9 lx, 1000 lx to 200 klx, 0 fc to 99.9 fc, 100 fc to 20 kfc
- Memory Medium
- Internal memory
- Temperature Measuring Range
- -20 to 70°C / -4 to 158°F
Description
With its compact size and easy handling, this lux meter is the ideal measuring device for anyone who wants to take quick light measurements. After removing the cover, the lux meter delivers reliable results in seconds. With a large measuring range of up to 200 klx or 20 kfc, the luxmeter offers a wide range of applications in different lighting environments.With the min-max hold value display, the lux meter ensures that the most important values are not overlooked, while the temperature display provides additional information about the measuring environment. The luxmeter has an easy-to-read LC display. Up to 12 measured values can be stored and recalled in the internal memory.The automatic switch-off function prevents uncontrolled battery discharge. The lux meter switches off automatically after 15 minutes when the lid is open and after one minute of inactivity when the lid is closed. An operating time of up to 60 hours can be achieved with standard AAA batteries.HIGHLIGHTS- Measuring range up to 200 klx or 20 kfc- Resolution from 0.1 lx- Measuring accuracy: ±3 % + 8 digits- MIN / MAX / HOLD- Ambient temperature measurement- Memory for 12 measured valuesSPECIFICATIONLight Measuring range 0 lx ... 999.9 lxResolution 0.1 lxAccuracy ± 3 % v.Mw. ±8 digits Light Measuring range 1000 lx ... 200 klxResolution 1 lxAccuracy ± 3 % of VAT ±8 digits <10,000 lx, ± 4 % of VAT ±10 digits >=10,000 lx Light Measuring range 0 fc ... 99.9 fcResolution 0.01 fcAccuracy ± 3 % f.m. ±8 digits <1000 fc, ± 4 % f.m. ±10 digits >=1000 fc Light Measuring range 100 fc ... 20 kfcResolution 0.1 fcAccuracy ± 3 % f.m. ±8 digits <1000 fc, ± 4 % f.m. ±10 digits >=1000 fc Temperature Measuring range -20 °C ... +70 °CResolution 0.1 °CAccuracy ±1.5 Temperature Measuring range -4 °F ... +158 °FResolution 0.1 °FAccuracy ±2.7 °F
