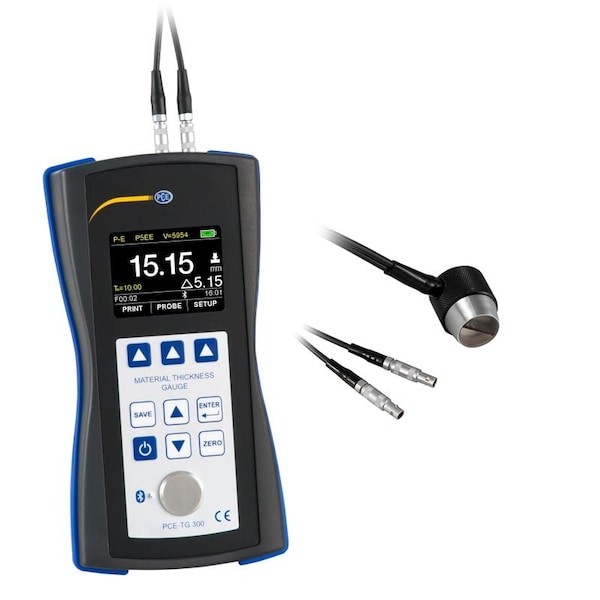

Material thickness meter, 3-300 mm probe with 2.5 MHz sensor (to 122 deg F) and Bluetooth/USB
Mfr # PCE-TG 300-NO2
Zoro # G222432358
product price: $1,727.99
/ea
Free Shipping & Returns
Key Features
Units
mm / inch
View Mode
Normal Mode; Scan Mode; Difference Mode
Resolution (mm)
0.1 mm / 0.01 mm / 0.001 mm (adjustable)
For Use With
To measure the wall thicknesses of all homogeneous materials
Sensor Measuring Range
3.0 to 300.0 mm / 0.118 to 11.81" (steel)
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
- MFR #
- PCE-TG 300-NO2
- Zoro #
- G222432358
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Length (In.)
- 7.3 in
- Sensor Minimum Diameter Of Pipes
- 30 mm / 1.18"
- Sensor Diameter
- 14 mm / 0.55"
- Width (In.)
- 3.8 in
Details
- Units
- mm / inch
- View Mode
- Normal Mode; Scan Mode; Difference Mode
- Resolution (mm)
- 0.1 mm / 0.01 mm / 0.001 mm (adjustable)
- For Use With
- To measure the wall thicknesses of all homogeneous materials
- Sensor Measuring Range
- 3.0 to 300.0 mm / 0.118 to 11.81" (steel)
- Accuracy
- ±0.04 mm H[mm] (<10 mm); ±0.4 % H[mm] (>10 mm) ; H refers to the material thickness of the workpiece
- Measurable Materials
- Metals; Plastics; Ceramics; Epoxy Resin; Glass and All Homogeneous Materials
- Sensor Model
- PCE-TG-NO2
- Sensor Frequency
- 2.5 MHz
- Application
- To measure the wall thicknesses of all homogeneous materials
- Includes
- 1 x Sensor PCE-TG-NO2, 1 x 100 ml coupling gel, 1 x Transport case, 4 x AA batteries, 1 x User manual
- Features
- Large measuring range, Various sensors available, Battery operation, Error and voids detection, Internal measurement data memory, Print via Bluetooth
- Sensor Description
- normal measurement
- Measuring Range (P-E, Pulse-Echo)
- 0.65 to 600 mm / 0.025 to 23.62" (steel)
- Calibration
- sound velocity calibration, zero calibration, two-point calibration
- Measuring Range (E-E, Echo-Echo)
- 2.50 to 100 mm / 0.098 to 2.36" (only with PCE‑TG 300‑P5EE sensor)
- Working Modes
- Pulse-echo mode (fault and void detection), Echo-echo mode (hide layer thicknesses, e.g., paint)
Description
This Ultrasonic testing device with special sensors for various applications. In general, the wall thicknesses of all homogeneous materials can be measured with the thickness meter. For damping or scattering materials such as plastic or cast a special sensor is available. An angled 90 deg sensor also enables measurements at hard-to-reach measuring points. The speed of sound can be set freely on the thickness meter and thus adapted to a wide variety of materials. The measured values are displayed directly on the easy-to-read TFT color display. Due to the internal memory, which can be read out via the optionally available software, different measuring points can be clearly stored. The non-destructive ultrasound measuring method enables the measurement even on end products. Thanks to the Echo-Echo working mode, even coated workpieces can be measured (only with PCE-TG 300-P5EE sensor).
