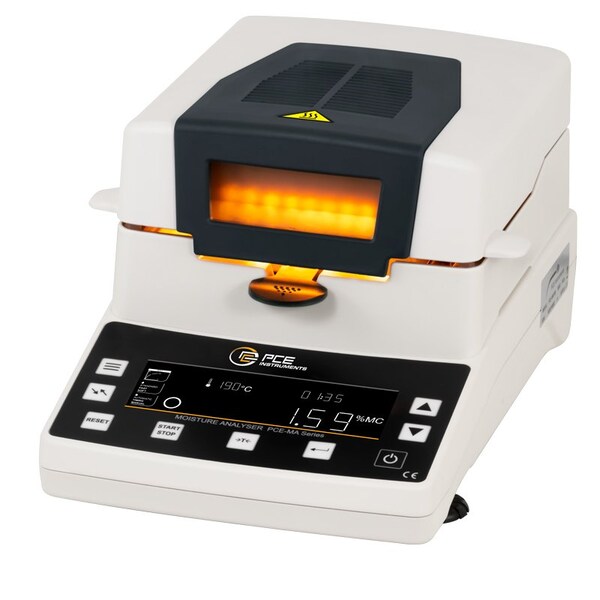

Moisture analyzer for lab drying, 0-200 g range with 0.01 g resolution and 95-390 deg F heating
Mfr # PCE-MA 202
Zoro # G822432468
product price:Â $1,093.99
/ea
Free Shipping & Returns
Key Features
Length (In.)
7.9 in
Includes
1 x Wind protection shield, 1 x Sample pans, 1 x Power supply cord, 1 x Sample cup holder / handle, 1 x 100 g weight in plastic box, 1 x User manual
Dimensions
200 x 180 x 380 mm / 7.9 x 7.1 x 15.0 in
Interface
RS-232
Application
To determine the moisture content based on the measured weight difference, relative to the weight before and after drying the sample
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- PCE-MA 202
- Zoro #
- G822432468
- UPC #
- -
- Country of Origin
- China
Dimensions
- Length (In.)
- 7.9 in
- Dimensions
- 200 x 180 x 380 mm / 7.9 x 7.1 x 15.0 in
- Width (In.)
- 7.1 in
Details
- Includes
- 1 x Wind protection shield, 1 x Sample pans, 1 x Power supply cord, 1 x Sample cup holder / handle, 1 x 100 g weight in plastic box, 1 x User manual
- Interface
- RS-232
- Application
- To determine the moisture content based on the measured weight difference, relative to the weight before and after drying the sample
- For Use With
- To determine the moisture content based on the measured weight difference, relative to the weight before and after drying the sample
- Memory
- 15 drying programs
- Readability
- 10 mg / 0.01 g, 0.001
- Weighing Range
- 200 g
- Heating Time
- 1 to 99 min. adjustable
- Humidity Measurement Range
- 0 to 100%
- Display
- LCD, 9 membrane keys
- Power Supply
- 220 V / 50 Hz or 110 v / 60 Hz
- Heating Element
- Halogen lamp
- Temperature Range
- 40 to 199°C / 104 to 390.2°F
Description
This is an oven-drying moisture analyzer for weighing and heating material samples to determine moisture content. The heating chamber is heated by halogen lamps up to 199 deg C. In this chamber, the moisture analyzer or moisture balance dries the sample to be weighed, and then calculates the moisture content from the weight difference. The moisture analyzer can determine the smallest weight differences thanks to a readout, readability or resolution of 1 mg / .1 g / .1 %. The results are displayed on the large, easy-to-read LCD screen. Up to 15 different drying programs can be stored in the memory of the moisture analyzer. Accordingly, the moisture analyzer is suitable for determining the moisture content of everything from food, biomass, pellets, pastes, animal feed, nuts, seeds, beans, lentils and legumes to soil, sand, ceramic clay, resin and brick materials. With the included 1 g weight, the moisture analyzer can be calibrated quickly and easily at any time.
