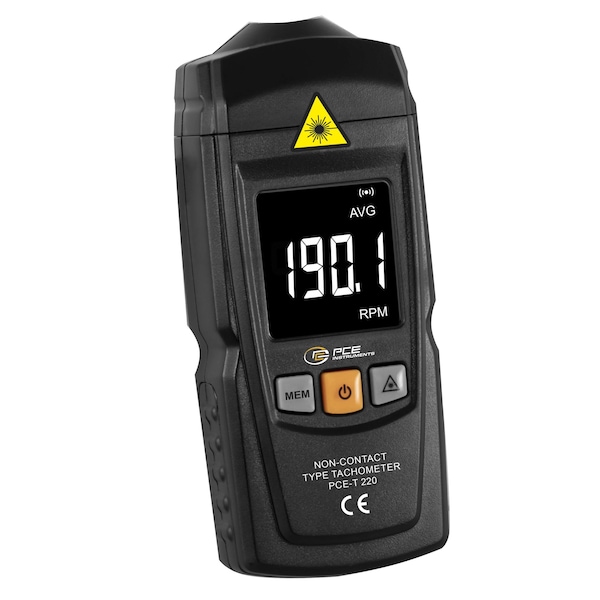

Non-contact tachometer, measures 2.5-99,999 RPM with Class 3A laser and MIN/MAX/AVG functions
Mfr # PCE-T 220
Zoro # G422432332
product price: $83.15
/eaKey Features
Measuring Distance
50 to 500 mm / 2.0 to 19.7 in
Optical Speed Accuracy
± (0.1% of Rd + 5 digits), ± (1% of Rd + 5 digits)
Overall Length
5.0 in
Optical Speed Resolution
0.1 RPM, 1 RPM
Measuring Functions
MIN, MAX, LAST, AVG
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
MFR #
PCE-T 220
Zoro #
G422432332
UPC #
-
Country of Origin
China
Dimensions
Overall Length
5.0 in
Display Size
1.8 in
Overall Width
2.2 in
Details
Measuring Distance
50 to 500 mm / 2.0 to 19.7 in
Optical Speed Accuracy
± (0.1% of Rd + 5 digits), ± (1% of Rd + 5 digits)
Optical Speed Resolution
0.1 RPM, 1 RPM
Measuring Functions
MIN, MAX, LAST, AVG
Display Type
LCD
(Rechargeable) Battery
2 x 1.5V AAA battery, Zinc carbon
Measuring Rate
1 x per second
Protection Class (Device)
IP20
Includes
1 x User manual, 2 x AAA 1.5V battery, 3 x Reflective tape approx. 20 cm
Automatic Power-Off
60 s
Laser
Class 3A 2-5 mW
Optical Speed Measurement Range
2.5 to 999.9 RPM, 1000 to 99999 RPM
Description
Our tachometer is a digital, battery-operated optical measuring device that, thanks to its optical sensor, can be used up to a distance of 50 cm from the measuring point. It covers a measuring range of 2.5 to 99,999 revolutions per minute (rpm) and offers a resolution of 0.1 rpm to deliver reliable results. Equipped with minimum, maximum, last, and average value functions, the tachometer allows you to record current and extreme readings over the measured period. The 1.8-inch LCD display provides a clear readout under all conditions. The compact design, measuring 127 x 55 x 30 mm, makes the device portable and easy to use. The laser enables precise measurements at a distance of 50 to 500 mm. To take a measurement, the trigger button must be held down. The values are updated every second on our tachometer. Our tachometer automatically shuts off after 60 seconds of inactivity to prevent accidental discharge of the 2 AAA batteries. Ideal for use in various industries such as mechanical engineering, automotive, and maintenance, it offers the precision and reliability for a wide range of applications.
