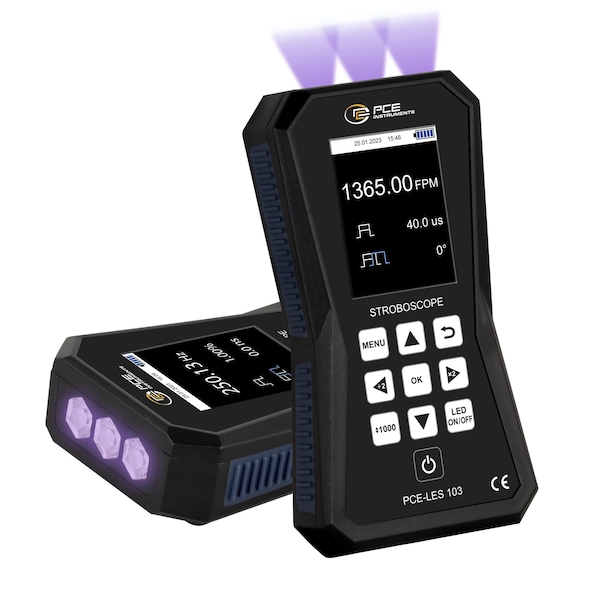

UV stroboscope for motion analysis, provides 60-300,000 FPM with 365 nm UV illumination
Mfr # PCE-LES 103UV-365
Zoro # G622432460
product price: $735.99
/ea
Free Shipping & Returns
Key Features
Length (In.)
6.5 in
Storage Conditions
-20 to 60°C / -4 to 140°F, 35 to 85% r.H.
Includes
1 x USB-C cable, 1 x Quick Start Guide, 1 x Service bag
Frequency Measuring Ranges
60 FPM to 99999.99 FPM, 10000 FPM to 300000 FPM, 1 Hz to 5000 Hz
Display Type
LC color display
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
MFR #
PCE-LES 103UV-365
Zoro #
G622432460
UPC #
-
Country of Origin
Germany
Dimensions
Length (In.)
6.5 in
Width (In.)
3.5 in
Display Size
2.8 in
Details
Storage Conditions
-20 to 60°C / -4 to 140°F, 35 to 85% r.H.
Includes
1 x USB-C cable, 1 x Quick Start Guide, 1 x Service bag
Frequency Measuring Ranges
60 FPM to 99999.99 FPM, 10000 FPM to 300000 FPM, 1 Hz to 5000 Hz
Display Type
LC color display
Application
For non-contact speed and vibration measurement for monitoring and inspecting production facilities, e.g. in the printing and textile industries
Protection Class (Device)
IP52
Operating Conditions
-20 to 60°C / -4 to 140°F, 35 to 85% r.H.
Accuracy
±0.003% of the setting or ±1 LSD
For Use With
For non-contact speed and vibration measurement for monitoring and inspecting production facilities, eg in the printing and textile industries
Power Supply
5V DC, 2A
Phase Shift
-360 to 360°
Operating Time
4.5 Hrsrs(at flash frequency 100 Hrsz, 1%, display brightness 70%)
Light Color
UV light (365 to 370 nm)
Resolution
0.01 FPM (<1000 FPM), 0.1 FPM (<10000 FPM)
Description
Motion analysis of rotating machines is quick and easy with our automotive tester / stroboscope. The automotive tester / stroboscope is equipped with 3 UVA high-performance LEDs, which together generate a light intensity of 22 μW/cm2 at a distance of 3 cm. The automotive tester / stroboscope allows you to set the flash frequency in both FPM and Hz. It is also small, handy and mains-independent thanks to the rechargeable battery. The automotive tester / stroboscope is operated intuitively using the 1 buttons, allowing quick adjustments to be made. The phase shift allows the observation point to be moved variably. The pulse width can be used to set the duration and therefore also the intensity of the flash frequency. The display brightness can be selected in the settings menu and the display can also be switched off after a period of inactivity, which extends the battery life. The automotive tester / stroboscope is supplied with a USB-C charging cable in a service bag. Automotive Tester / Stroboscopes are indispensable tools for monitoring and inspecting production facilities, e.g. in the printing and textile industries. But also for general maintenance and inspection tasks in all industrial sectors. They also enable non-contact speed and vibration measurement: if the flash frequency of the automotive tester / stroboscope matches the movement frequency, the measured object appears stationary.
