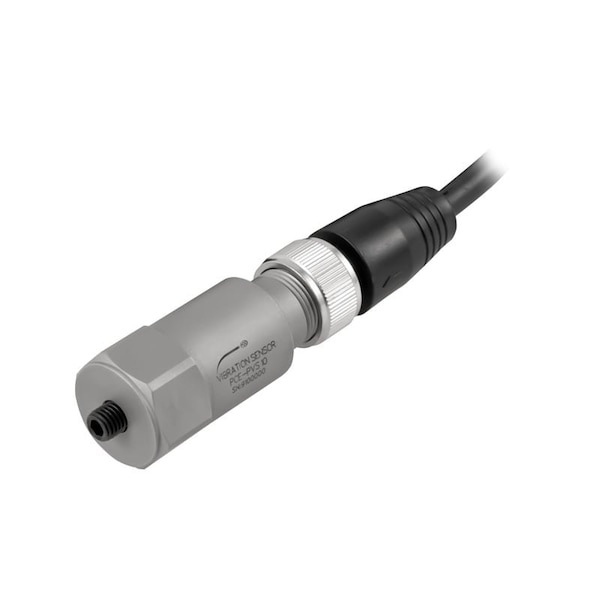

Vibration sensor, +/-12.7 mm/s range, 3-1500 Hz with 4-20 mA output and M6 mounting
Mfr # PCE-PVS 10
Zoro # G422432318
product price:Â $818.99
/ea
Free Shipping & Returns
Key Features
Electrical Connections
Pin A: + 4 to 20 mA Pin B: - 4 to 20 mA
Output Impedance
<100 ohms
Sensitivity
<5%
Isolation From Ground
> 108 ohms
Frequency Range (Hz)
3 to 1500 Hz
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- PCE-PVS 10
- Zoro #
- G422432318
- UPC #
- -
- Country of Origin
- China
Dimensions
- Dimensions
- Ø22 x51
- Length
- 0.9 in
- Width
- 2.0 in
Details
- Electrical Connections
- Pin A: + 4 to 20 mA Pin B: - 4 to 20 mA
- Output Impedance
- <100 ohms
- Sensitivity
- <5%
- Isolation From Ground
- > 108 ohms
- Frequency Range (Hz)
- 3 to 1500 Hz
- Includes
- 1 x MIL-C 5015 plug to 5 m / 16.4 ft cable, 1 x Instruction manual
- Operating Temperature
- -40 to 85°C / -40 to 185°F
- Mounting Thread
- M6
- Application
- For the continuous monitoring of the vibration speed
- Design
- Vertical connection
- Shock Limit
- ± 1000 g
- Power Supply
- 12 to 24V DC in current loop
- Features
- Horizontal or vertical installation,Process signal output,MILC5015 connector,M6 process connection,Different measuring ranges,Robust construction
- Connection Type
- 2 pin MIL-C-5015
- For Use With
- For the continuous monitoring of the vibration speed
- Output
- 2 conductors 4- 20 mA
- Measuring Range
- ± 12.7 mm / s
Description
Vibration Sensor for monitoring the vibration speed / 4 ... 2 mA output MIL-C-515 connection / 3 ... 15 Hz bandwidth The Vibration Sensor has been developed for the continuous monitoring of the vibration speed. The vibration sensor is available in different versions. Depending on the type of vibration sensor, a distinction is made between design and measuring range. The Vibration Sensor measures the vibration speed in the range of +/- 12.7 mm / s or +/- 25.4 mm / s in the frequency range between 3 Hz and 1500 kHz. The measured vibration speed is output as a 4 ... 2 mA process current. The Vibration Sensor is looped through a MIL-C-515 connector to a controller or process display. Depending on the design, the connection socket is attached to the vibration sensor vertically or horizontally. The Vibration Sensor can be operated with a voltage of 12 ... 24 V DC.
