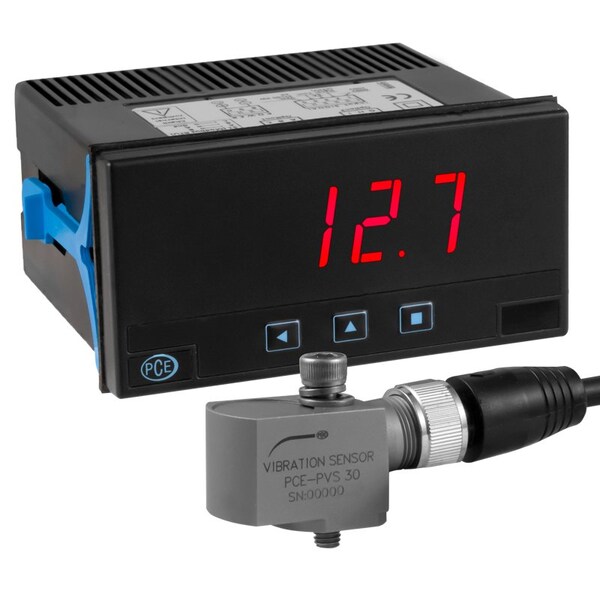

Vibration sensor, +/-12.7 mm/s range, 3-1500 Hz with 4-20 mA output and M6 mounting with display
Mfr # PCE-PVS 30-DPD-U
Zoro # G622432316
product price:Â $1,089.99
/ea
Free Shipping & Returns
Key Features
Output Impedance
<100 ohms
Electrical Connections
Pin A: + 4 to 20 mA, Pin B: - 4 to 20 mA
Includes
1 x MIL-C 5015 plug to 5 m / 16.4 ft cable, 1 x Instruction manual
Frequency Range (Hz)
3 to 1500 Hz
Built-In Display
PCE-DPD-U
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- PCE-PVS 30-DPD-U
- Zoro #
- G622432316
- UPC #
- -
- Country of Origin
- China
Dimensions
- Dimensions
- 23 x 23 x 25 mm
- Length
- 3.8 in
- Width
- 1.9 in
Details
- Output Impedance
- <100 ohms
- Electrical Connections
- Pin A: + 4 to 20 mA, Pin B: - 4 to 20 mA
- Includes
- 1 x MIL-C 5015 plug to 5 m / 16.4 ft cable, 1 x Instruction manual
- Frequency Range (Hz)
- 3 to 1500 Hz
- Built-In Display
- PCE-DPD-U
- Shock Limit
- ± 1000 g
- Isolation Against Ground
- > 108 ohms
- Sensitivity
- <5%
- Mounting Thread
- M6
- Design
- Sidelight connection
- Power Supply
- 12 to 24V DC in current loop
- Connection Type
- 2-pin MIL-C-5015
- For Use With
- For the continuous monitoring of vibration velocity
- Measuring Range
- ± 12.7 mm/s
- Application
- For the continuous monitoring of vibration velocity
- Operating Temperature
- -40 to 85°C / -40 to 185°F
Description
The accelerometer was developed for the continuous monitoring of vibration velocity. The accelerometer is available in various designs. Depending on the type of accelerometer, a distinction is made between design and measuring range. The accelerometer measures vibration velocity in the range of +/- 12.7 mm/s or +/- 25.4 mm/s in the frequency range between 3 Hz and 1500 kHz. The measured vibration velocity is output as a 4 to 20 mA process current. The vibration sensor is connected to a controller or process display in a current loop via a MIL-C-5015 connector. Depending on the design, the connection socket is mounted vertically or horizontally on the accelerometer. The accelerometer can be operated with a voltage of 12 to 24 V DC.
