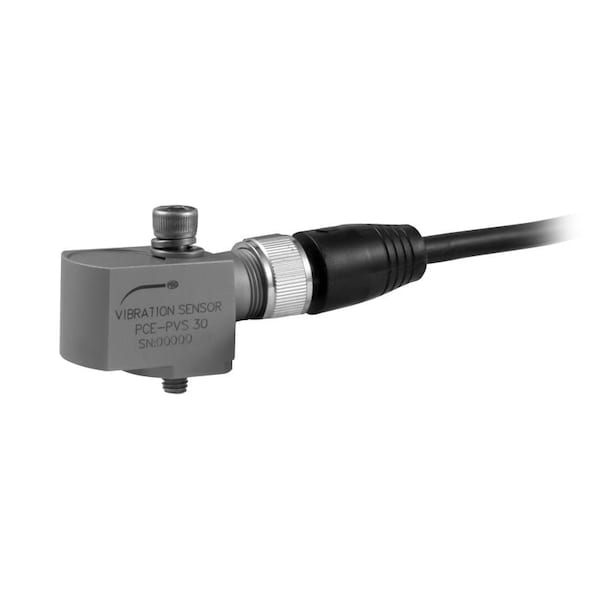

Vibration sensor, +/-12.7 mm/s range, 3-1500 Hz with 4-20 mA output and M6 mounting
Mfr # PCE-PVS 30
Zoro # G122432267
product price:Â $818.99
/ea
Free Shipping & Returns
Key Features
Shock Limit
± 1000 g
Width
0.9 in
For Use With
For the continuous monitoring of vibration velocity
Measuring Range
± 12.7 mm/s
Features
Horizontal or vertical mounting, Process signal output, MILC5015 connector, M6 process connection, Different measuring ranges, Robust construction
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- PCE-PVS 30
- Zoro #
- G122432267
- UPC #
- -
- Country of Origin
- China
Dimensions
- Width
- 0.9 in
- Length
- 0.9 in
- Dimensions
- 23 x 23 x 25 mm / 0.91 x 0.91 x 0.98 in
Details
- Shock Limit
- ± 1000 g
- For Use With
- For the continuous monitoring of vibration velocity
- Measuring Range
- ± 12.7 mm/s
- Features
- Horizontal or vertical mounting, Process signal output, MILC5015 connector, M6 process connection, Different measuring ranges, Robust construction
- Includes
- 1 x MIL-C 5015 plug to 5 m / 16.4 ft cable, 1 x Instruction manual
- Power Supply
- 12 to 24V DC in current loop
- Output Impedance
- <100 ohms
- Mounting Thread
- M6
- Operating Temperature
- -40 to 85°C / -40 to 185°F
- Application
- For the continuous monitoring of vibration velocity
- Connection Type
- 2-pin MIL-C-5015
- Isolation Against Ground
- > 108 ohms
- Design
- Sidelight connection
- Electrical Connections
- Pin A: + 4 to 20 mA, Pin B: - 4 to 20 mA
Description
Vibration Sensor for monitoring the vibration speed / 4 ... 2 mA output MIL-C-515 connection / 3 ... 1500 Hz bandwidth The Vibration Sensor has been developed for the continuous monitoring of the vibration speed. The vibration sensor is available in different versions. Depending on the type of vibration sensor, a distinction is made between design and measuring range. The Vibration Sensor measures the vibration speed in the range of +/- 12.7 mm / s or +/- 25.4 mm / s in the frequency range between 3 Hz and 1500 kHz. The measured vibration speed is output as a 4 ... 2 mA process current. The Vibration Sensor is looped through a MIL-C-515 connector to a controller or process display. Depending on the design, the connection socket is attached to the vibration sensor vertically or horizontally. The Vibration Sensor can be operated with a voltage of 12 ... 24 V DC.
