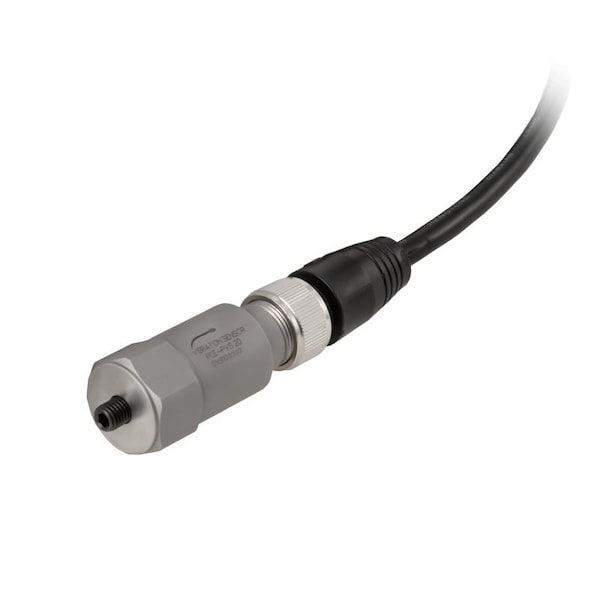

Vibration sensor, +/-25.4 mm/s range, 3-1500 Hz with 4-20 mA output and M6 mounting
Mfr # PCE-PVS 20
Zoro # G622432293
product price:Â $818.99
/ea
Free Shipping & Returns
Key Features
Dimensions
Ø22 x51
Design
Vertical connection
Connection Type
2-pin MIL-C-5015
Length
0.9 in
Mounting Thread
M6
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- PCE-PVS 20
- Zoro #
- G622432293
- UPC #
- -
- Country of Origin
- China
Dimensions
- Dimensions
- Ø22 x51
- Length
- 0.9 in
- Width
- 2.0 in
Details
- Design
- Vertical connection
- Connection Type
- 2-pin MIL-C-5015
- Mounting Thread
- M6
- For Use With
- For the continuous monitoring of vibration velocity
- Features
- Horizontal or vertical mounting, Process signal output, MILC5015 connector, M6 process connection, Different measuring ranges, Robust construction
- Shock Limit
- ± 1000 g
- Electrical Connections
- Pin A: + 4 to 20 mA, Pin B: - 4 to 20 mA
- Output Impedance
- <100 ohms
- Operating Temperature
- -40 to 85°C / -40 to 185°F
- Application
- For the continuous monitoring of vibration velocity
- Power Supply
- 12 to 24V DC in current loop
- Isolation Against Ground
- > 108 ohms
- Measuring Range
- ± 25.4 mm/s
- Sensitivity
- <5%
- Includes
- 1 x MIL-C 5015 plug to 5 m / 16.4 ft cable, 1 x Instruction manual
Description
Vibration Sensor for monitoring the vibration speed / 4 ... 2 mA output MIL-C-515 connection / 3 ... 1500 Hz bandwidth The Vibration Sensor has been developed for the continuous monitoring of the vibration speed. The vibration sensor is available in different versions. Depending on the type of vibration sensor, a distinction is made between design and measuring range. The Vibration Sensor measures the vibration speed in the range of +/- 12.7 mm / s or +/- 25.4 mm / s in the frequency range between 3 Hz and 1500 kHz. The measured vibration speed is output as a 4 ... 2 mA process current. The Vibration Sensor is looped through a MIL-C-515 connector to a controller or process display. Depending on the design, the connection socket is attached to the vibration sensor vertically or horizontally. The Vibration Sensor can be operated with a voltage of 12 ... 24 V DC.
