  11. Line Voltage Mechanical Thermostat, Heat or Cool, 40 to 110F, Knob, 120 to 277V AC, 1C, 1H

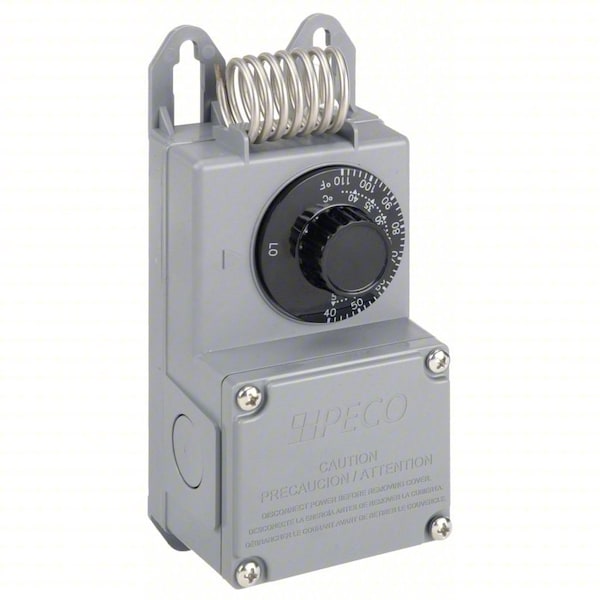

Peco Line Voltage Mechanical Thermostat, Heat or Cool, 40 to 110F, Knob, 120 to 277V AC, 1C, 1H TF115-001 - main

Line Voltage Mechanical Thermostat, Heat or Cool, 40 to 110F, Knob, 120 to 277V AC, 1C, 1H

  • Mfr # TF115-001

  • Zoro # G3075134

product price: $56.59
/ea

Key Features

Application
Heat or Cool
Switch Action
Open/Close on Rise
Switch Type
SPDT
Number of Cooling Stages
1
Number of Heating Stages
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TF115-001
Zoro #
G3075134
UPC #
879978000295
Country of Origin
Korea, Republic of

Dimensions

Sensing Bulb Dia.
1 1/4 in
Overall Height
6-7/16 in
Overall Depth
2-1/2 in
Sensor Diameter
1 1/4 in
Overall Width
3-1/8 in

Details

Application
Heat or Cool
Switch Action
Open/Close on Rise
Switch Type
SPDT
Number of Cooling Stages
1
Number of Heating Stages
1
Temperature Control Range
40 to 110 Degrees F
Control Type
Knob
Voltage
120 to 277V AC
Item
Line Voltage Mechanical Thermostat
Resistive Amps @ 208VAC
25 A
Number of Switches
1
Contact Rating Resistive @ 120V
25 A
Sensor Type
Hydraulic Air Coil
Contact Rating Resistive @ 277V
25 A
Locked Rotor Amps @ 120V
80 A
Standards
CSA Certified, NEC 547, UL Listed
Contact Rating Resistive @ 240V
25 A
Enclosure Type
Rain Tight
Locked Rotor Amps @ 240V
60 A
Temperature Sensitivity
+/-3 Degrees F
Maximum Operating Temperature
110 Degrees F
Enclosure NEMA Rating
4X
Enclosure Color
Gray
Minimum Operating Temperature
40 Degrees F
Number of Poles
1
Full Load Amps @ 240V AC
12 A
Pilot Duty Rating
125 VA @ 120 to 277V AC
Differential Type
Fixed
Full Load Amps @ 120V AC
16 A
Maximum Control Temperature
110 Degrees F
Temperature Differential
3 Degrees F Fixed
Minimum Control Temperature
40 Degrees F
Temperature Scale
Fahrenheit/Celsius
Housing Material
Plastic
Programming Capability
Not Programmable
Mounting Direction
Horizontal

Description

This PECO TF115-001 Line Volt Mechanical Tstat has an open/close on rise switch action, which makes it easy to turn the heat or air conditioning on and off. This line voltage mechanical thermostat is designed for indoor/outdoor use. It comes with a stainless steel, fluid filled coil sensor that measures both temperature and humidity. The thermostat control range is between 40 degrees F and 110 degrees F. You can set the differential at 3 degrees F fixed. When you need a reliable line voltage mechanical thermostat, this PECO model will meet your needs perfectly.
