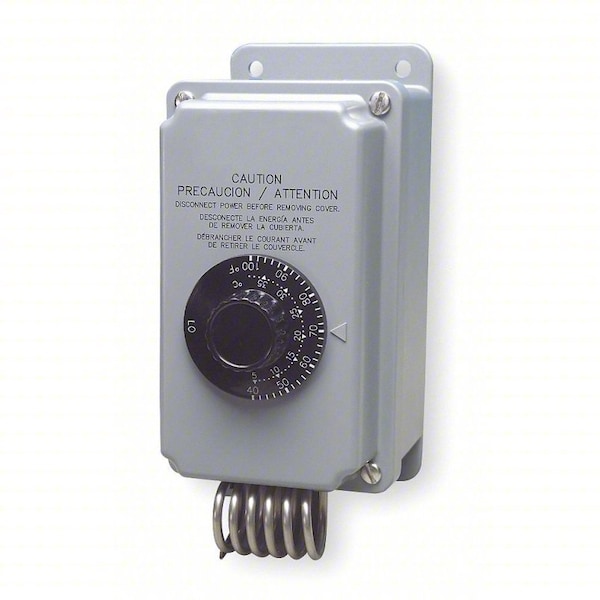

Peco Line Voltage Mechanical Thermostat, Heat or Cool, 40 to 100F, 120 to 277V AC, 2C, 2H TH109-009 - main

Line Voltage Mechanical Thermostat, Heat or Cool, 40 to 100F, 120 to 277V AC, 2C, 2H

  • Mfr # TH109-009

  • Zoro # G2532293

product price: $109.99
/ea
Free Shipping & Returns

Key Features

Application
Heat or Cool
Switch Action
Open/Close on Rise
Switch Type
(2) SPDT
Number of Cooling Stages
2
Number of Heating Stages
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TH109-009
Zoro #
G2532293
UPC #
879978000288
Country of Origin
Korea, Republic of

Dimensions

Sensing Bulb Dia.
1 1/4 in
Sensor Diameter
1 1/4 in
Overall Width
3-1/2 in
Overall Depth
5 in
Overall Height
7-5/16 in

Details

Application
Heat or Cool
Switch Action
Open/Close on Rise
Switch Type
(2) SPDT
Number of Cooling Stages
2
Number of Heating Stages
2
Temperature Control Range
40 to 100 Degrees F
Voltage
120 to 277V AC
Item
Line Voltage Mechanical Thermostat
Number of Switches
2
Contact Rating Resistive @ 120V
25 A
Contact Rating Resistive @ 240V
25 A
Locked Rotor Amps @ 240V
60 A
Standards
CSA Certified, NEC 547, UL Listed
Contact Rating Resistive @ 277V
25 A
Enclosure Type
Rain Tight
Resistive Amps @ 208VAC
25 A
Includes
Oversized Enclosures to Accommodate Internally Mounted Relays or Terminal Blocks
Locked Rotor Amps @ 120V
80 A
Sensor Type
Hydraulic Air Coil
Maximum Control Temperature
100 Degrees F
Enclosure Color
Gray
Temperature Differential
3 Degrees F
Full Load Amps @ 240V AC
12 A
Enclosure NEMA Rating
4X
Number of Poles
1
Full Load Amps @ 120V AC
16 A
Minimum Operating Temperature
40 Degrees F
Minimum Control Temperature
40 Degrees F
Temperature Scale
Fahrenheit/Celsius
Differential Type
Fixed
Pilot Duty Rating
125 VA @ 120 to 277V AC
Maximum Operating Temperature
100 Degrees F
Temperature Sensitivity
+/-3 Degrees F
Changeover Type
Automatic
Programming Capability
Not Programmable
Housing Material
Plastic
Mounting Direction
Horizontal

Description

Mech Tstat,Heat or Cool,Plastic,40/100F
