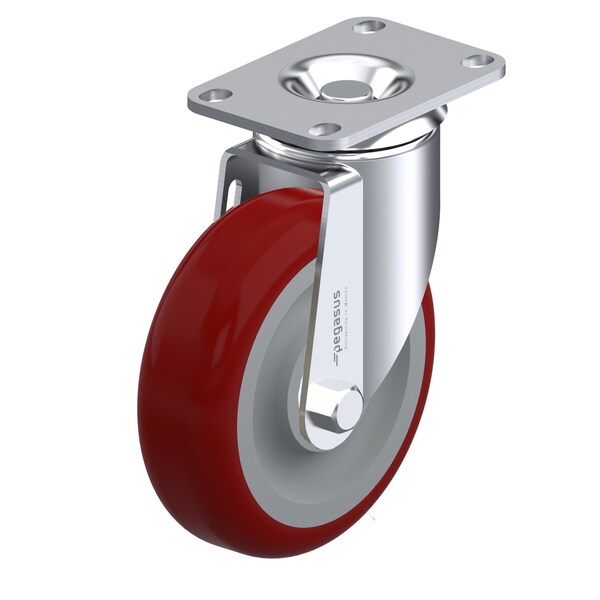

Pegasus Caster, Swivl Plate, Red Urethane, 220 lb. P12S-URP030K-12 - main

Caster, Swivl Plate, Red Urethane, 220 lb.

  • Mfr # P12S-URP030K-12

  • Zoro # G0239119

product price:  $13.15
/ea

Key Features

Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
Caster Mounting Type
Plate
Wheel Width
1-1/4 in
Standards
RoHS, ICWM, NSF
Number of Wheels
1
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
P12S-URP030K-12
Zoro #
G0239119
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
3 in
Wheel Width
1-1/4 in
Mounting Bolt Dia.
5/16 in
Overall Height
4-1/4 in
Swivel Radius
2-13/16 in
Mounting Plate Thickness
0.118 in
Mounting Plate Size
2-1/2 in x 3-5/8 in

Details

Item
Swivel Caster
Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
Caster Mounting Type
Plate
Standards
RoHS, ICWM, NSF
Number of Wheels
1
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Caster Brake Included
No
Replacement Wheel
Mfr. No. P-URP-030x013/038K
System of Measurement
Inch
Tread Color
Red
Caster Brake Type
No Brake Included
Inside Bolt Hole Spacing
1-3/4 in x 2-13/16 in
Caster Sub-Type
Swivel
Core Color
Gray
Non-Marking
Yes
Frame Finish
Zinc Plated
Tread
Standard
Includes
Thread Guards
Caster Frame Material
Steel
Extended Lead
No
Load Capacity
220 lb
Wheel Core Material
Polypropylene
Includes Thread Guards
Yes
Load Rating Range
Light Duty
Resistant To
High Chemical Resistance To Many Aggressive Substances
Series
P12 Series
Swivel Raceway Type
Double Ball
Number of Mounting Holes
4
ESD Conductive
No
Tread Shape
Standard
Wheel Bearing Type
Precision Ball
Wheel Hardness Rating
50-60 Shore D
Wheel/Tread Material
Polyurethane
Operating Temperature Range
-15 Degrees To 160 Degrees F

Description

Caster,Swivl Plate,Red Urethane,220 lb.
