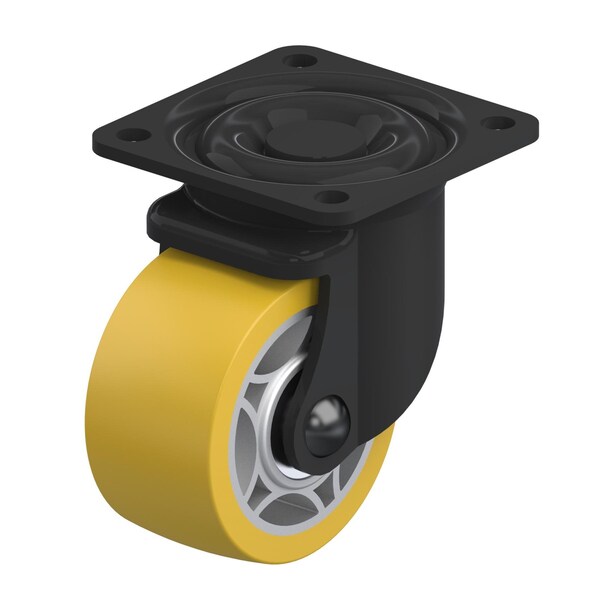

Pegasus Cstr, Bus Machine, Swvl Plt, Urthan, 660 lb. P10S-UA030K-P - main

Cstr, Bus Machine, Swvl Plt, Urthan, 660 lb.

  • Mfr # P10S-UA030K-P

  • Zoro # G0238522

product price:  $30.79
/ea

Key Features

System of Measurement
Inch
Overall Height
3-15/16 in
Number of Wheels
1
Caster Brake Included
No
Caster Brake Type
No Brake Included
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
P10S-UA030K-P
Zoro #
G0238522
UPC #
-
Country of Origin
China

Dimensions

Overall Height
3-15/16 in
Wheel Dia.
3 in
Mounting Bolt Dia.
5/16 in
Wheel Width
1-9/16 in
Swivel Radius
2-7/16 in
Mounting Plate Thickness
0.138 in
Mounting Plate Size
3-1/4 in x 3-1/4 in

Details

Item
Swivel Caster
System of Measurement
Inch
Number of Wheels
1
Caster Brake Included
No
Caster Brake Type
No Brake Included
Caster Mounting Type
Plate
Tread Color
Yellow
Core Color
Silver
Non-Marking
Yes
Caster Sub-Type
Swivel
Frame Finish
Black Powder Coated
Outside Bolt Hole Spacing
2-1/2 in x 2-1/2 in
Standards
RoHS, ICWM
Tread
Standard
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Inside Bolt Hole Spacing
2-1/2 in x 2-1/2 in
Caster Frame Material
Steel
Extended Lead
No
Swivel Raceway Type
Double Ball
Load Capacity
660 lb
Includes Thread Guards
No
Load Rating Range
Medium Duty
Resistant To
High Chemical Resistance To Many Aggressive Substances
Tread Shape
Standard
Series
P10 Series
ESD Conductive
No
Number of Mounting Holes
4
Wheel Core Material
Aluminum
Wheel/Tread Material
Polyurethane
Wheel Hardness Rating
92 Shore A
Wheel Bearing Type
Precision Ball
Operating Temperature Range
-15 Degrees To 160 Degrees F

Description

Cstr,Bus Machine,Swvl Plt,Urthan,660 lb.
