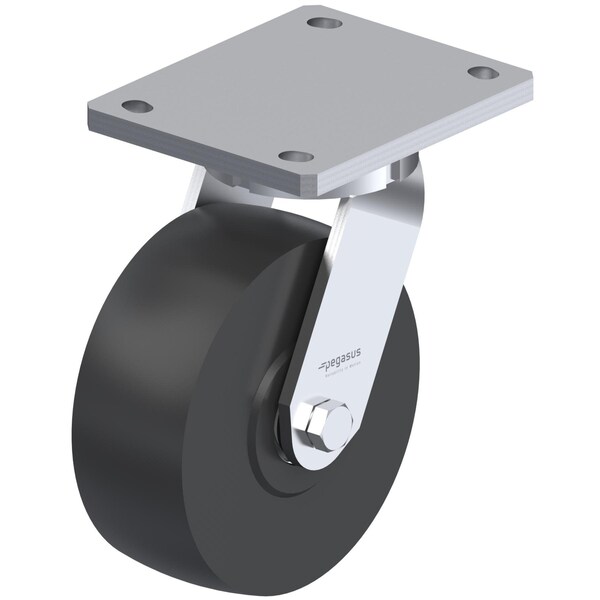

Pegasus Cstr, Kingpinless Swvl Plte, Nyln, 7200 lb. P27S-NMB080K-20 - main

Cstr, Kingpinless Swvl Plte, Nyln, 7200 lb.

  • Mfr # P27S-NMB080K-20

  • Zoro # G0252041

product price:  $417.99
/ea
Free Shipping & Returns

Key Features

Standards
RoHS, ICWM
Inside Bolt Hole Spacing
4-1/2 in x 6 in
Overall Height
10-1/2 in
Extended Lead
No
Replacement Wheel
Mfr. No. P-NMB-080x040/100K
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P27S-NMB080K-20
Zoro #
G0252041
UPC #
-
Country of Origin
China

Dimensions

Overall Height
10-1/2 in
Swivel Radius
6-1/16 in
Wheel Width
4 in
Mounting Bolt Dia.
1/2 in
Wheel Dia.
8 in
Mounting Plate Size
6-1/4 in x 7-1/2 in
Mounting Plate Thickness
0.531 in

Details

Item
Kingpinless Swivel Caster
Standards
RoHS, ICWM
Inside Bolt Hole Spacing
4-1/2 in x 6 in
Extended Lead
No
Replacement Wheel
Mfr. No. P-NMB-080x040/100K
Caster Brake Type
No Brake Included
Outside Bolt Hole Spacing
4-1/8 in x 6-1/8 in
Caster Frame Material
Steel
Caster Sub-Type
Kingpinless Swivel
Core Color
Black
Number of Wheels
1
Non-Marking
Yes
Frame Finish
Zinc Plated
Caster Brake Included
No
Application
Retail, Industrial, Commercial, Corrosion Resistance
System of Measurement
Inch
Series
P27 Series
Tread Shape
Standard
Caster Mounting Type
Plate
Number of Mounting Holes
4
Accessories
Optional: P-DL27-20 (Directional Lock)
Load Rating Range
Heavy Duty
Tread Color
Black
Tread
Standard
Resistant To
High Chemical Resistance To Many Aggressive Substances
Wheel Core Material
Nylon
ESD Conductive
No
Includes Thread Guards
No
Load Capacity
9500 lb
Swivel Raceway Type
Kingpinless Single Ball
Wheel Bearing Type
Precision Ball
Wheel/Tread Material
Machined Nylon
Wheel Hardness Rating
70-80 Shore D
Operating Temperature Range
-20 Degrees To 250 Degrees F

Description

Cstr,Kingpinless Swvl Plte,Nyln,7200 lb.
