  11. Cstr, Shck Absorb, Swvl Plt, Urethn, 330 lb.

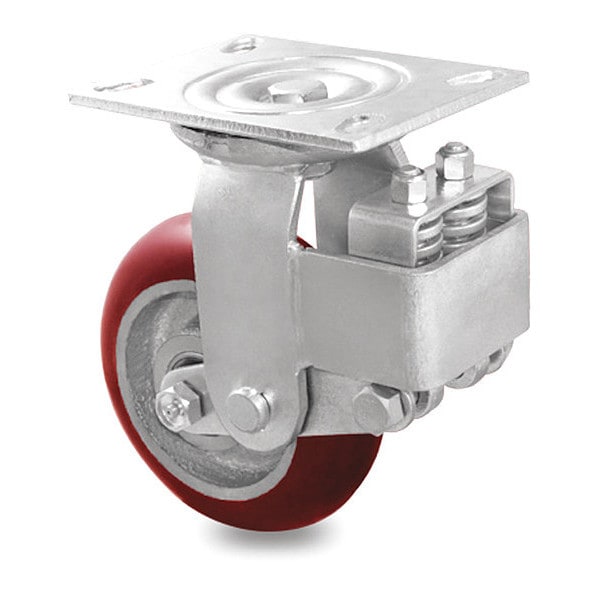

Pegasus Cstr, Shck Absorb, Swvl Plt, Urethn, 330 lb. P22S-URY060K-16 - main

Cstr, Shck Absorb, Swvl Plt, Urethn, 330 lb.

  • Mfr # P22S-URY060K-16

  • Zoro # G0251253

product price: $100.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Polyurethane
Caster Brake Type
No Brake Included
Wheel Dia.
6 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P22S-URY060K-16
Zoro #
G0251253
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
6 in
Wheel Width
2 in
Mounting Plate Size
4-1/2 in x 6-1/4 in
Mounting Plate Thickness
0.236 in
Mounting Bolt Dia.
1/2 in
Overall Height
8-5/8 in
Swivel Radius
4-3/4 in

Details

Item
Swivel Caster
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Polyurethane
Caster Brake Type
No Brake Included
Caster Mounting Type
Plate
Wheel Bearing Type
Precision Ball
Wheel Hardness Rating
92 Shore A
Number of Mounting Holes
4
Tread Shape
Crowned
Caster Frame Material
Stainless Steel
Core Color
Red
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Tread
Crowned
Tread Color
Red
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Caster Brake Included
No
Standards
RoHS, ICWM
Replacement Wheel
Mfr. No. P-URY-060x020/050K
Frame Finish
Zinc Plated
Extended Lead
No
Resistant To
High Chemical Resistance To Many Aggressive Substances
Load Rating Range
Medium Duty
Max. Spring Deflection
55/64 in
Load Capacity
330 lb
Series
P22 Series
ESD Conductive
No
Includes Thread Guards
No
Swivel Raceway Type
Double Ball
Wheel Core Material
Cast Iron
Operating Temperature Range
-15 Degrees To 160 Degrees F
Maximum Compression Force
1000 lb

Description

Cstr,Shck Absorb,Swvl Plt,Urethn,330 lb.
