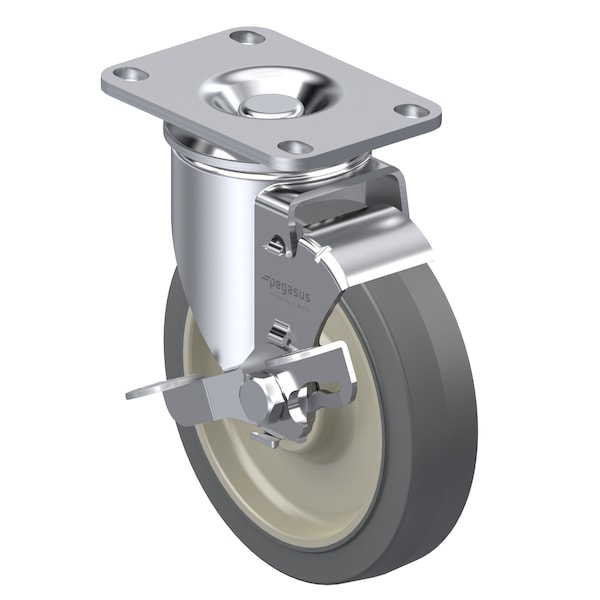

Pegasus Cstr, Swivl Plt, Gray Surlastc, 150 lb., Brk P12S-PRP030D-12-WB - main

Cstr, Swivl Plt, Gray Surlastc, 150 lb., Brk

  • Mfr # P12S-PRP030D-12-WB

  • Zoro # G0240010

product price:  $18.15
/ea

Key Features

Caster Mounting Type
Plate
Caster Brake Included
Yes
System of Measurement
Inch
Application
Retail, Industrial, Commercial
Standards
RoHS, ICWM, NSF
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P12S-PRP030D-12-WB
Zoro #
G0240010
UPC #
-
Country of Origin
China

Dimensions

Overall Height
4-1/4 in
Mounting Bolt Dia.
5/16 in
Wheel Dia.
3 in
Wheel Width
1-1/4 in
Swivel Radius
2-13/16 in
Mounting Plate Thickness
0.118 in
Mounting Plate Size
2-1/2 in x 3-5/8 in

Details

Item
Swivel Caster With Brake
Caster Mounting Type
Plate
Caster Brake Included
Yes
System of Measurement
Inch
Application
Retail, Industrial, Commercial
Standards
RoHS, ICWM, NSF
Tread Color
Gray
Frame Finish
Zinc Plated
Includes
Strap Type Brake
Caster Sub-Type
Swivel
Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
Tread
Standard
Number of Wheels
1
Replacement Wheel
Mfr. No. P-PRP-030x013/038D
Caster Brake Type
Strap Type Brake
Core Color
Gray
Inside Bolt Hole Spacing
1-3/4 in x 2-13/16 in
Non-Marking
Yes
Extended Lead
No
Caster Frame Material
Steel
Load Rating Range
Light Duty
Series
P12 Series
Load Capacity
200 lb
Resistant To
High Chemical Resistance To Many Aggressive Substances
Includes Thread Guards
No
Tread Shape
Standard
Wheel Core Material
Polypropylene
Number of Mounting Holes
4
Swivel Raceway Type
Double Ball
ESD Conductive
No
Wheel Hardness Rating
85-95 Shore A
Wheel Bearing Type
Delrin
Wheel/Tread Material
Thermoplastic Rubber
Operating Temperature Range
-4 Degrees To 140 Degrees F

Description

Cstr,Swivl Plt,Gray Surlastc,150 lb.,Brk
