  6. Swivel Plate Caster, Polyurethane, 1000 lb
Zoro Select Swivel Plate Caster, Polyurethane, 1000 lb P21S-UP080R-14 - main

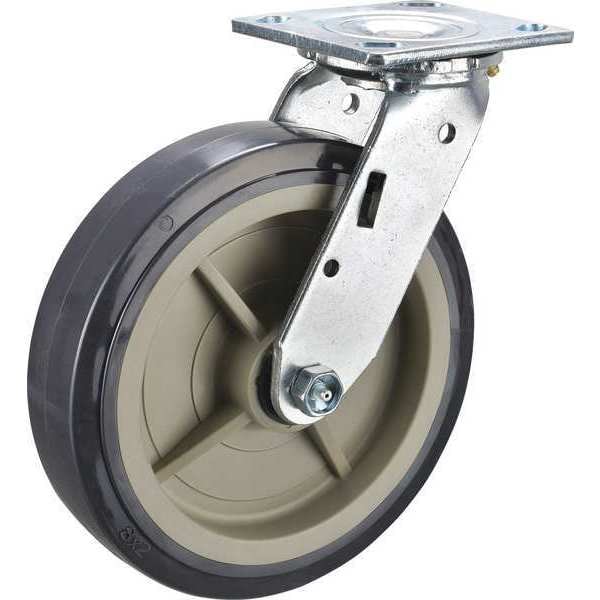

Swivel Plate Caster, Polyurethane, 1000 lb

  • Mfr # P21S-UP080R-14

  • Zoro # G7185245

product price:  $37.39
/ea

Key Features

Caster Sub-Type
Swivel
Wheel Color
Gray
Wheel Dia.
8 in
Caster Temp. Range Available
Yes
Thread Guards
No
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
P21S-UP080R-14
Zoro #
G7185245
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
8 in
Stem Dia.
No Stem
Overall Height
9-1/2in
Swivel Radius
5 3/4 in
Mounting Bolt Dia.
3/8 in
Wheel Width
2 in
Mounting Height
9 1/2 in
Mounting Plate Size
4in x 4-1/2in
Outside Slot Spacing - Length
3.625 in
Mounting Plate Length
4 1/2 in
Mounting Plate Thickness
1/4in
Outside Slot Spacing - Width
3 in
Overall Wheel Width
2 in
Inside Slot Spacing - Width
2.625 in
For Axle Dia.
1/2 in
Mounting Plate Width
4 in
Bolt Hole Spacing - Length
2.625 in
Inside Slot Spacing - Length
3 in

Details

Caster Sub-Type
Swivel
Wheel Color
Gray
Caster Temp. Range Available
Yes
Thread Guards
No
Item
Swivel Caster
Load Rating
1000 lb
Extended Lead
No
Caster Plate Hole Pattern
B
Inside Bolt Hole Spacing
3 in x 3 in
Replacement Wheel
Mfr. No. P-UP-080x020/050R
Caster Brake Included
No
Number of Wheels
1
Core Color
Gray
Features
Hardened Raceway
Frame Finish
Zinc Plated
Includes
Complete Caster
Caster Frame Material
Steel
Caster Stem Type
No Stem/Plate Included
Non-Marking
Yes
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Standards
ANSI ICWM
Application
General Manufacturing Dollies, Rolling Support Equipment
Caster Brake Type
No Brake
Caster Mounting Type
Plate
System of Measurement
Inch
Tread Color
Gray
Tread
Standard
Includes Thread Guards
No
Tread Shape
Standard
Swivel Raceway Type
Double Ball
Load Rating Range
Medium-Duty
Number of Mounting Holes
4
Wheel Core Material
Polypropylene
Wheel Bearing Type
Roller
Swivel Construction
Kingpin
Wheel/Tread Hardness Rating
Hard
Swivel Lock Type
No Lock Included
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Gray
Resistant To
High Chemical Resistance To Many Aggressive Substances
Load Capacity
1000 lb
Accessories
Optional: P-DL21-14 (Directional Lock)
ESD Conductive
No
Series
P21 Series
Wheel Hardness Rating
55 Shore D
Load Capacity - Maximum
1,000 lb
Compatible With
P-UP-080X020/050R
Wheel Core Type
Solid
Mounting Hole Type
Slot
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Mounting Plate Shape
Rectangle
Wheel Bearing Material
Steel
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Operating Temperature Range
-40 Degrees to 180 Degrees F
Operating Temperature - Maximum
180 Degrees F
Operating Temperature - Minimum
-40 Degrees F

Description

Swivel, Plate Caster, Load Rating 1000 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
