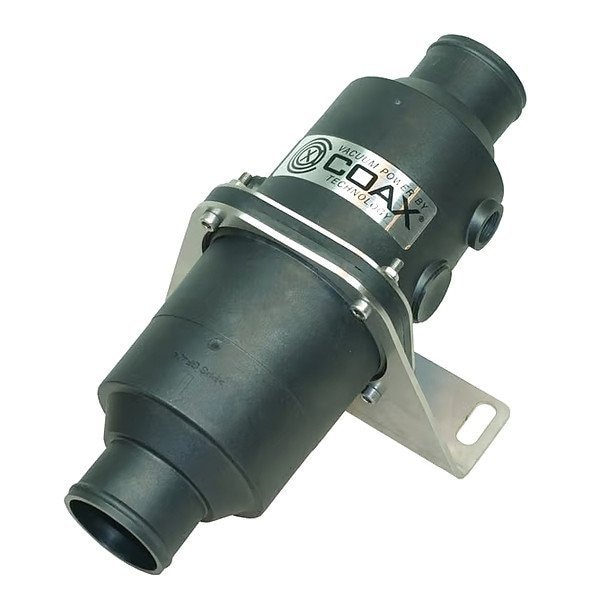

Vacuum Pump
Mfr # Round pump COAX(R) 6xSi32-3
Zoro # G216153146
product price:Â $2,803.99
/ea
Free Shipping & Returns
Key Features
Pressure Port Size
1/8 in
Vacuum Port Size
3/8 in
Weight
1,130 g
Includes
6x COAX(R) Si MIDI Cartridges
Valve Type
Normally Closed Vacuum and Blowoff
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
- MFR #
- Round pump COAX(R) 6xSi32-3
- Zoro #
- G216153146
- UPC #
- -
- Country of Origin
- Sweden
Dimensions
- Pressure Port Size
- 1/8 in
- Vacuum Port Size
- 3/8 in
- Overall Height
- 5 3/8 in
- Overall Length
- 10 5/8 in
- Overall Width
- 4 1/16 in
Details
- Item
- Vacuum Pump
- Weight
- 1,130 g
- Includes
- 6x COAX(R) Si MIDI Cartridges
- Valve Type
- Normally Closed Vacuum and Blowoff
- Cartridge Type
- Si
- Pressure Port Type
- G
- Control Valve
- Normally Closed
- Vacuum Port Type
- G
- Air Consumption
- 10.5 L/sec
- Maximum Operating Temperature
- 80 Degrees C
- Series
- COAX(R)
- Standards
- DIN ISO 8573-1 Class 4, IP65
- Minimum Operating Temperature
- -10 Degrees C
- Maximum Vacuum Pressure
- 75 kPa
- Maximum Flow Rate
- 22.25 scfm
- Maximum Supply Pressure
- 0.7 MPa
- Minimum Vacuum Pressure
- 0 in Hg
Description
Item Vacuum Pump, Air Consumption 10.5 L/sec, Cartridge Type Si, Control Valve Normally Closed, Includes 6x COAX(R) Si MIDI Cartridges, Maximum Flow Rate 22.25 scfm, Maximum Operating Temperature 80 Degrees C, Maximum Supply Pressure 0.7 MPa, Maximum Vacuum Pressure 75 kPa, Minimum Operating Temperature -10 Degrees C, Minimum Vacuum Pressure 0 in Hg, Overall Height 5 3/8 in, Overall Length 10 5/8 in, Overall Width 4 1/16 in, Pressure Port Size 1/8 in, Pressure Port Type G, Series COAX(R)
