Piab

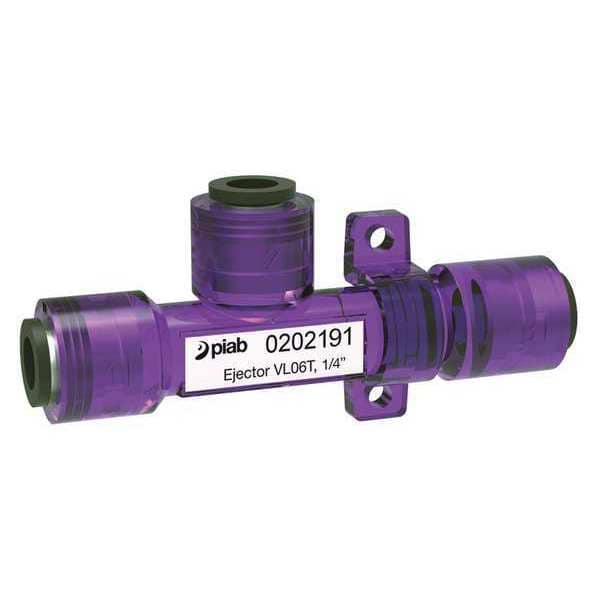

Vacuum Ejector, Inline, 31.5mm H, 1/4 in.

product price: $51.89
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Pressure Port Size 1/4 in
  • Vacuum Port Size 1/4 in
  • Exhaust Type 1/4 in Tube
  • Vacuum Flow Rate 16.0 lpm
  • Length 66.2 mm
See all product information

Product Information

Dimensions

Pressure Port Size 1/4 in
Vacuum Port Size 1/4 in
Length 66.2 mm
Width 31.5 mm
Height 31.5 mm
Overall Width 31.5 mm
Overall Length 66.2 mm

Details

Exhaust Type 1/4 in Tube
Vacuum Flow Rate 16.0 lpm
Item Vacuum Ejector
Supply Pressure Range 0 to 102 psi
Ejector Type Single Stage Venturi
Vacuum Pressure @ 75 PSI -70 kPa
Weight 12 g
Temp. Range 14 Degrees to 176 Degrees F
Vacuum Pressure Range 0 to 71 KPA
Maximum Flow Rate 16 lpm
Maximum Supply Pressure 102 psi
Maximum Operating Temperature 176 Degrees F
Pressure Port Type Tube
Vacuum Port Type Tube

Description

Item Vacuum Ejector, Maximum Flow Rate 16 lpm, Maximum Operating Temperature 176 Degrees F, Maximum Supply Pressure 102 psi, Overall Length 66.2 mm, Overall Width 31.5 mm, Pressure Port Size 1/4 in, Pressure Port Type Tube, Vacuum Port Size 1/4 in, Vacuum Port Type Tube, Vacuum Pressure @ 75 PSI -70 kPa, Weight 12 g
