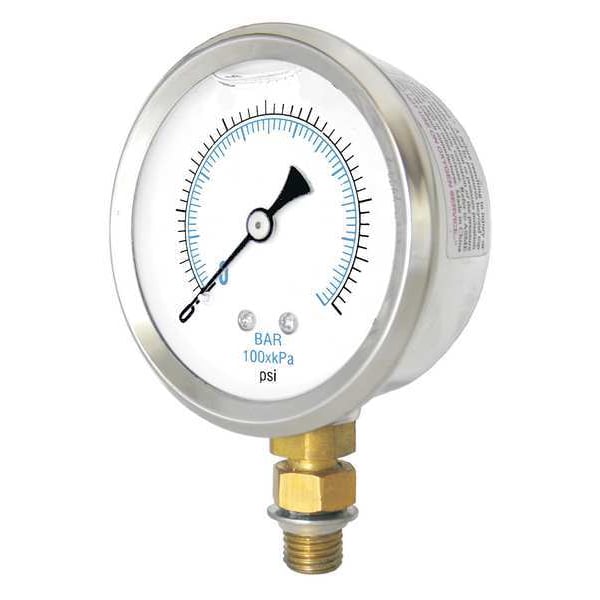

Hydraulic Cylinder Pressure Gauge, 0 to 3,000 psi psi, 2 1/2 in Dial, 1/4 in SAE, Bottom Location

  • Mfr # 201L-25XP-SAE4

  • Zoro # G6725397

product price:
$
26.79
/ea

Key Features

Accuracy
+/-3-2-3%
Process Connection Location
Bottom
Process Connection Size
7/16 in
Process Connection Type
SAE
Dial Size (In.)
2 1/2 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
201L-25XP-SAE4
Zoro #
G6725397
UPC #
-
Country of Origin
China

Dimensions

Process Connection Size
7/16 in
Dial Size (In.)
2 1/2 in
Length
3.55"
Case Depth
1.4 in
Nominal Dial Size
2 1/2 in
Manufacturer Warranty Length
1 yr
Case Diameter
2.8 in
Nominal Dial Diameter
2 1/2 in

Details

Item
Hydraulic Cylinder Pressure Gauge
Accuracy
+/-3-2-3%
Process Connection Location
Bottom
Process Connection Type
SAE
Application
Hydraulics
Gauge Case Material
Stainless Steel
Series
201L
Lens Material
Polycarbonate
Primary Pressure Range
0 to 3,000 psi
Primary Scale Units
psi
IP/NEMA Rating
IP66
Liquid-Filled Case
Yes
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Smallest Graduation
50 psi
For Use With
Hydraulic Applications, Media Compatible with Copper Alloy/Brass
Gauge Primary Range Smallest Graduation
50
Gauge Application
Suitable for Air, Water, Oil, Gas or Other Media not Corrosive to Copper Alloy
Gauge Filled With
Glycerin
Calibration Certificate Included
No
Gauge Primary Range Numbered Graduations
500
Includes
Vent Plug
Case Color
Metallic
Case Material
Stainless Steel
Socket Material
Copper Alloy
Connection Type
SAE
Standards
ASME
Wetted Materials
Copper
Scale Type
Single
Pressure Range Type
Pressure
Field Fillable
Yes
Bezel Material
Stainless Steel
Primary Scale Minor Graduations
50
Sensor Material
Copper Alloy
Removable Bezel
No
Includes Vent Plug
Yes
Freeze Resistant Movement
No
Accuracy Scale
Mid-Scale
Primary Scale Numeric Increments
500
Pointer Color
Black
Process Connection Gender
Male
Ambient Operating Temperature Range
30 Degrees to 160 Degrees F (Glycerin Filled)
Pressure Gauge Type
Hydraulic Cylinder Pressure Gauge
Includes Mounting Hardware
No
Dial Color
White
Gauge Case Liquid
Glycerin
Secondary Scale Units
bar
Vibration Resistance
Liquid-Filled
Requires Adapter
No
Bezel Mounting Type
Fixed
Adjustable Pointer
No
Maximum Pressure
3000
Operating Temperature Range
30 Degrees to 160 Degrees F
NEMA Enclosure Rating
4X
IP Rating
IP66
Process Media Temperature - Maximum
150 Degrees F
Secondary Scale Pressure Measurement - Minimum
0 bar
Secondary Scale Pressure Measurement - Maximum
200 bar
Primary Scale Pressure Measurement - Minimum
0 psi
Primary Scale Pressure Measurement - Maximum
3,000 psi
Process Media Temperature - Minimum
-4 Degrees F
Case Liquid
Glycerin
Operating Temperature - Maximum
160 Degrees F
Operating Temperature - Minimum
-30 Degrees F

Description

Pressure Gauge,0 to 3000 psi,2 1/2" Dial
