  5. Industrial Compound Gauge, 30 to 0 to 30 psi, 1 1/2 in Dial, 1/8 in NPT, Bottom Location

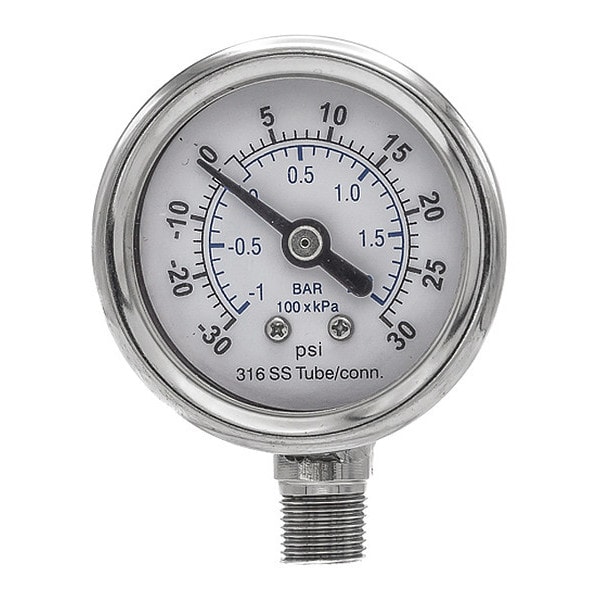

Pic Gauges Industrial Compound Gauge, 30 to 0 to 30 psi, 1 1/2 in Dial, 1/8 in NPT, Bottom Location PRO-301D-158CC-01 - main

Industrial Compound Gauge, 30 to 0 to 30 psi, 1 1/2 in Dial, 1/8 in NPT, Bottom Location

  • Mfr # PRO-301D-158CC-01

  • Zoro # G7287237

product price:  $15.15
/ea

Key Features

Accuracy
+/-2-1-2%
Process Connection Location
Bottom
Process Connection Size
1/8 in
Process Connection Type
NPT
Dial Size (In.)
1 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
PRO-301D-158CC-01
Zoro #
G7287237
UPC #
-
Country of Origin
India

Dimensions

Process Connection Size
1/8 in
Dial Size (In.)
1 1/2 in
Manufacturer Warranty Length
1 yr
Nominal Dial Size
1 1/2 in
Nominal Dial Diameter
1 1/2 in

Details

Item
Industrial Compound Gauge
Accuracy
+/-2-1-2%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
General Purpose
Gauge Case Material
Stainless Steel
Series
300
Lens Material
Polycarbonate
Primary Pressure Range
30 to 0 to 30
Primary Scale Units
in Hg/psi
IP/NEMA Rating
Not Rated
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Case Color
Metallic
Calibration Certificate Included
No
Socket Material
316 Stainless Steel
Includes
Vent Plug
Gauge Primary Range Numbered Graduations
10/5
Case Material
Stainless Steel
Gauge Special Options
Field Liquid Fillable
Smallest Graduation
1 psi, 2 in Hg
Gauge Primary Range Smallest Graduation
10/5
Graduations
10 in Hg, 5 psi
Standards
ASME
Connection Type
MNPT
Pointer Material
Aluminum
Non-Sparking
No
Accuracy Grade
ASME B40.100 Grade A
Freeze Resistant Movement
No
Field Fillable
Yes
Accuracy Scale
Mid-Scale
Sensor Material
316 Stainless Steel
Includes Mounting Hardware
No
Primary Scale Numeric Increments
5, 10
Ambient Operating Temperature Range
-30 Degrees to 180 Degrees F
Secondary Pressure Range
0 to 2
Cleaned for Oxygen Service
No
Dry Dampening Feature
None
Removable Bezel
No
Gauge Case Liquid
None
Includes Calibration Certificate
No
Scale Type
Dual
Pressure Range Type
Compound
Dial Face Material
Stainless Steel
Bezel Material
Stainless Steel
Dial Color
White
Secondary Scale Units
bar
Includes Vent Plug
No
Process Connection Gender
Male
Pointer Color
Black
Pressure Gauge Type
Industrial Pressure Gauge
Primary Scale Minor Graduations
5, 10
Bezel Mounting Type
Fixed
Vibration Resistance
Field-Fillable
Operating Temperature Range
-30 Degrees to 180 Degrees F
Secondary Scale Pressure Measurement - Minimum
0 bar
Process Media Temperature - Maximum
180 Degrees F
Secondary Scale Vacuum Measurement - Maximum
2 bar
Compatible with Series
300
Secondary Scale Vacuum Measurement - Minimum
0 bar
Process Media Temperature - Minimum
-30 Degrees F
Primary Scale Pressure Measurement - Minimum
0 psi
Case Liquid
None
Primary Scale Vacuum Measurement - Minimum
0 in Hg
Primary Scale Vacuum Measurement - Maximum
30 psi
Operating Temperature - Minimum
-30 Degrees F
Compatible with Brand
Universal
NEMA Enclosure Rating
No Enclosure
Operating Temperature - Maximum
180 Degrees F
Secondary Scale Pressure Measurement - Maximum
2 bar
Primary Scale Pressure Measurement - Maximum
30 psi

Description

Industrial Compound Gauge, Nominal Dial Size 1 1/2 in, Accuracy +/-2-1-2 Percent, Gauge Case Material Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Polycarbonate, Process Connection Size 1/8 in, Field Fillable Yes, Process Connection Location Bottom, Case Color Metallic, IP/NEMA Rating Not Rated, Primary Pressure Range 30 to 0 to 30, Dry Dampening Feature None, Vibration Resistance Field-Fillable, Dial Color White
