  5. Industrial Compound Gauge, 30 to 0 to 60 psi, 4 in Dial, 1/2 in NPT, Bottom Location

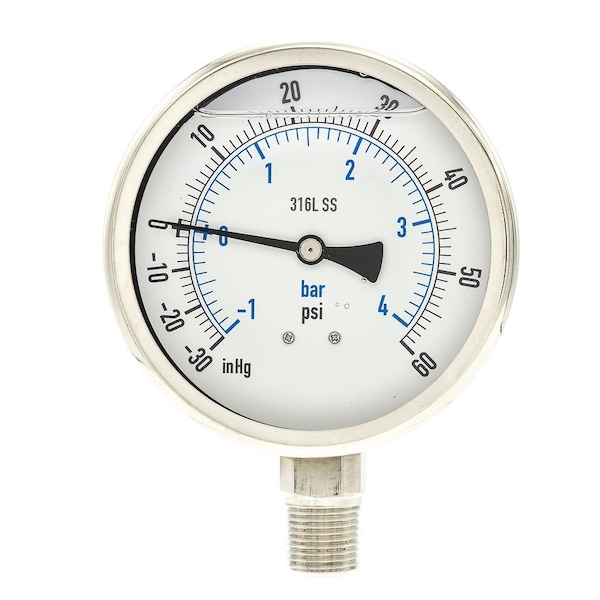

Pic Gauges Industrial Compound Gauge, 30 to 0 to 60 psi, 4 in Dial, 1/2 in NPT, Bottom Location PRO-301L-402CD-01 - main

Industrial Compound Gauge, 30 to 0 to 60 psi, 4 in Dial, 1/2 in NPT, Bottom Location

  • Mfr # PRO-301L-402CD-01

  • Zoro # G9188837

product price:  $43.89
/ea

Key Features

Accuracy
+/-2-1-2%
Process Connection Location
Bottom
Process Connection Size
1/2 in
Process Connection Type
NPT
Dial Size (In.)
4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
PRO-301L-402CD-01
Zoro #
G9188837
UPC #
-
Country of Origin
India

Dimensions

Process Connection Size
1/2 in
Dial Size (In.)
4 in
Length
5.26"
Case Depth
1.74 in
Case Diameter
4.3 in
Manufacturer Warranty Length
1 yr
Nominal Dial Size
4 in
Nominal Dial Diameter
4 in

Details

Item
Industrial Compound Gauge
Accuracy
+/-2-1-2%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
Industrial
Gauge Case Material
Stainless Steel
Series
300
Lens Material
Polycarbonate
Primary Pressure Range
30 to 0 to 60
Primary Scale Units
in Hg/psi
IP/NEMA Rating
Not Rated
Liquid-Filled Case
Yes
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Smallest Graduation
1 psi, 2 in Hg
Gauge Application
In Applications Where Vibration or Pulsation is Present
Gauge Special Options
Heavy Duty
For Use With
Brass, Industrial Applications, Media Compatible with Copper Alloy
Gauge Primary Range Smallest Graduation
2/1
Case Color
Metallic
Gauge Filled With
Glycerin
Calibration Certificate Included
No
Gauge Primary Range Numbered Graduations
30/10
Graduations
10 psi, 30 in Hg
Case Material
Stainless Steel
Includes
Vent Plug
Socket Material
316 Stainless Steel
Wetted Materials
Stainless Steel
Connection Type
MNPT
Standards
ASME
Ambient Operating Temperature Range
30 Degrees to 160 Degrees F
Includes Calibration Certificate
No
Sensor Material
316 Stainless Steel
Pressure Gauge Type
Industrial Pressure Gauge
Primary Scale Numeric Increments
10, 30
Pointer Color
Black
Secondary Pressure Range
0 to 4
Cleaned for Oxygen Service
No
Scale Type
Dual
Includes Vent Plug
No
Accuracy Grade
ASME B40.100 Grade A
Secondary Scale Units
bar
Bezel Mounting Type
Fixed
Removable Bezel
No
Pointer Material
Aluminum
Field Fillable
No
Dry Dampening Feature
None
Pressure Range Type
Compound
Gauge Case Liquid
Glycerin
Non-Sparking
No
Freeze Resistant Movement
No
Primary Scale Minor Graduations
1, 2
Dial Face Material
Stainless Steel
Dial Color
White
Accuracy Scale
Mid-Scale
Includes Mounting Hardware
No
Bezel Material
Stainless Steel
Process Connection Gender
Male
Vibration Resistance
Liquid-Filled
Maximum Pressure
60
Operating Temperature Range
30 Degrees to 160 Degrees F
Process Media Temperature - Maximum
160 Degrees F
Secondary Scale Vacuum Measurement - Minimum
0 bar
Secondary Scale Pressure Measurement - Minimum
0 bar
Process Media Temperature - Minimum
30 Degrees F
Operating Temperature - Minimum
30 Degrees F
NEMA Enclosure Rating
No Enclosure
Operating Temperature - Maximum
160 Degrees F
Secondary Scale Pressure Measurement - Maximum
4 bar
Secondary Scale Vacuum Measurement - Maximum
4 bar
Primary Scale Vacuum Measurement - Maximum
60 psi
Primary Scale Vacuum Measurement - Minimum
0 in Hg
Compatible with Series
300
Primary Scale Pressure Measurement - Minimum
0 psi
Primary Scale Pressure Measurement - Maximum
60 psi
Compatible with Brand
Universal
Case Liquid
Glycerin

Description

Industrial Compound Gauge, Nominal Dial Size 4 in, Accuracy +/-2-1-2 Percent, Gauge Case Material Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Polycarbonate, Process Connection Size 1/2 in, Field Fillable No, Process Connection Location Bottom, Case Color Metallic, IP/NEMA Rating Not Rated, Primary Pressure Range 30 to 0 to 60, Dry Dampening Feature None, Vibration Resistance Liquid-Filled, Dial Color White
