  5. Industrial Pressure Gauge, 0 to 160 psi, 2 in Dial, 1/4 in BSPT, Bottom Location

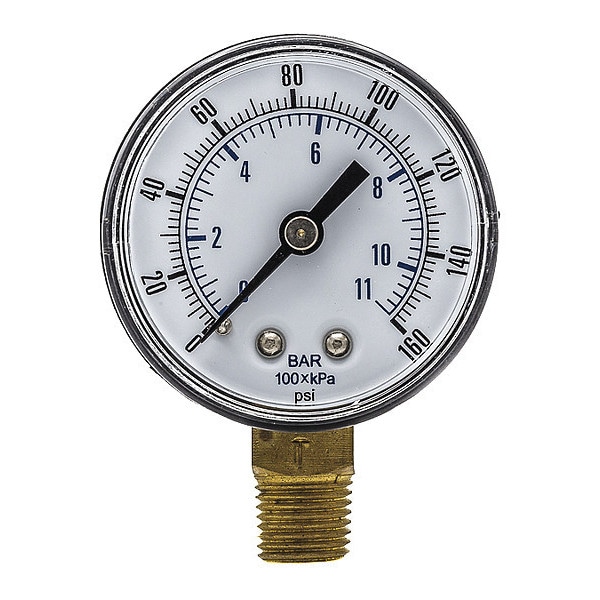

Pic Gauges Industrial Pressure Gauge, 0 to 160 psi, 2 in Dial, 1/4 in BSPT, Bottom Location SEP-101D-204F-BSPT - main

Industrial Pressure Gauge, 0 to 160 psi, 2 in Dial, 1/4 in BSPT, Bottom Location

  • Mfr # SEP-101D-204F-BSPT

  • Zoro # G7286668

product price:  $5.45
/ea

Key Features

Accuracy
+/-3-2-3%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
BSPT
Application
Commercial
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
SEP-101D-204F-BSPT
Zoro #
G7286668
UPC #
-
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
2 in
Case Diameter
2.09 in
Nominal Dial Size
2 in
Case Depth
1.14 in
Manufacturer Warranty Length
1 yr
Nominal Dial Diameter
2 in

Details

Item
Industrial Pressure Gauge
Accuracy
+/-3-2-3%
Process Connection Location
Bottom
Process Connection Type
BSPT
Application
Commercial
Gauge Case Material
Steel
Series
SEP 100
Lens Material
Plastic
Primary Pressure Range
0 to 160
Primary Scale Units
psi
IP/NEMA Rating
Not Rated
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Gauge Application
General-Purpose Case
Includes
Plastic Case
Case Color
Black
Socket Material
Copper Alloy
Case Material
Steel
Graduations
20 psi
Gauge Secondary Range Values
0 to 11
Gauge Primary Range Smallest Graduation
20
Gauge Primary Range Numbered Graduations
20
Calibration Certificate Included
No
Standards
ASME
Connection Type
BSPT
Gauge Case Liquid
None
Vibration Resistance
None
Ambient Operating Temperature Range
-40 Degrees to 140 Degrees F
Primary Scale Minor Graduations
20
Accuracy Grade
ASME B40.100 Grade B
Secondary Pressure Range
0 to 11
Includes Calibration Certificate
No
Primary Scale Numeric Increments
20
Includes Mounting Hardware
No
Cleaned for Oxygen Service
No
Dry Dampening Feature
None
Dial Color
White
Process Connection Gender
Male
Freeze Resistant Movement
No
Secondary Scale Units
bar
Sensor Material
Copper Alloy
Pointer Color
Black
Scale Type
Dual
Pressure Range Type
Pressure
Removable Bezel
No
Non-Sparking
No
Includes Vent Plug
No
Pressure Gauge Type
Industrial Pressure Gauge
Field Fillable
No
Pointer Material
Aluminum
Accuracy Scale
Mid-Scale
Operating Temperature Range
-50 Degrees to 160 Degrees F
Case Liquid
None
Secondary Scale Vacuum Measurement - Minimum
0 bar
Operating Temperature - Maximum
140 Degrees F
NEMA Enclosure Rating
No Enclosure
Compatible with Brand
Universal
Primary Scale Pressure Measurement - Maximum
160 psi
Secondary Scale Pressure Measurement - Minimum
0 bar
Primary Scale Vacuum Measurement - Minimum
0 psi
Operating Temperature - Minimum
-40 Degrees F
Secondary Scale Pressure Measurement - Maximum
11 bar
Secondary Scale Vacuum Measurement - Maximum
11 bar
Process Media Temperature - Maximum
140 Degrees F
Process Media Temperature - Minimum
-40 Degrees F
Compatible with Series
SEP 100
Primary Scale Vacuum Measurement - Maximum
160 psi
Primary Scale Pressure Measurement - Minimum
0 psi

Description

Industrial Pressure Gauge, Nominal Dial Size 2 in, Accuracy +/-3-2-3 Percent, Gauge Case Material Steel, Process Connection Type BSPT, Process Connection Gender Male, Lens Material Plastic, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Black, IP/NEMA Rating Not Rated, Primary Pressure Range 0 to 160, Dry Dampening Feature None, Vibration Resistance None, Dial Color White, Pressure Gauge Type Industrial Pressure Gauge, Liquid-Filled Case No
