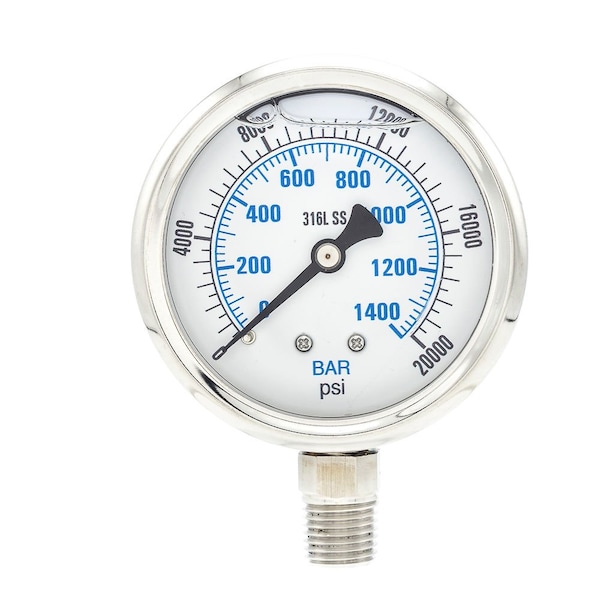

Pic Gauges Industrial Pressure Gauge, 0 to 20,000 psi, 2 1/2 in Dial, 1/4 in NPT, Bottom Location PRO-301L-254W-01 - main

Industrial Pressure Gauge, 0 to 20,000 psi, 2 1/2 in Dial, 1/4 in NPT, Bottom Location

  • Mfr # PRO-301L-254W-01

  • Zoro # G6526423

product price:  $48.45
/ea

Key Features

Accuracy
+/-2-1-2%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
2 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
PRO-301L-254W-01
Zoro #
G6526423
UPC #
-
Country of Origin
India

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
2 1/2 in
Length
3.61"
Manufacturer Warranty Length
1 yr
Nominal Dial Size
2 1/2 in
Case Diameter
2.70 in
Nominal Dial Diameter
2 1/2 in

Details

Item
Industrial Pressure Gauge
Accuracy
+/-2-1-2%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
General Purpose
Gauge Case Material
Stainless Steel
Series
300
Lens Material
Polycarbonate
Primary Pressure Range
0 to 20,000
Primary Scale Units
psi
IP/NEMA Rating
Not Rated
Liquid-Filled Case
Yes
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Gauge Primary Range Smallest Graduation
200
Case Color
Metallic
Graduations
2000 psi
Gauge Filled With
Glycerin
Calibration Certificate Included
No
Gauge Application
In Applications Where Vibration or Pulsation is Present
For Use With
Media Compatible with 316L Stainless Steel, Medium to High Pressures
Smallest Graduation
200 psi
Includes
Vent Plug
Gauge Primary Range Numbered Graduations
2000
Socket Material
316 Stainless Steel
Case Material
Stainless Steel
Standards
ASME
Wetted Materials
Stainless Steel
Connection Type
MNPT
Accuracy Grade
ASME B40.100 Grade A
Bezel Material
Stainless Steel
Secondary Pressure Range
0 to 1379
Scale Type
Dual
Pointer Material
Aluminum
Sensor Material
316 Stainless Steel
Accuracy Scale
Mid-Scale
Process Connection Gender
Male
Vibration Resistance
Liquid-Filled
Cleaned for Oxygen Service
No
Non-Sparking
No
Primary Scale Numeric Increments
2,000
Removable Bezel
No
Pressure Gauge Type
Industrial Pressure Gauge
Includes Mounting Hardware
No
Primary Scale Minor Graduations
200
Field Fillable
No
Includes Calibration Certificate
No
Pointer Color
Black
Ambient Operating Temperature Range
30 Degrees to 160 Degrees F
Dial Face Material
Stainless Steel
Dial Color
White
Includes Vent Plug
Yes
Freeze Resistant Movement
No
Gauge Case Liquid
Glycerin
Dry Dampening Feature
None
Pressure Range Type
Pressure
Secondary Scale Units
bar
Bezel Mounting Type
Fixed
Maximum Pressure
20000
Operating Temperature Range
30 Degrees to 160 Degrees F
Operating Temperature - Maximum
160 Degrees F
Process Media Temperature - Minimum
34 Degrees F
Secondary Scale Vacuum Measurement - Maximum
1,400 bar
Secondary Scale Vacuum Measurement - Minimum
0 bar
Secondary Scale Pressure Measurement - Minimum
0 bar
Primary Scale Pressure Measurement - Maximum
20,000 psi
Secondary Scale Pressure Measurement - Maximum
1,379 bar
NEMA Enclosure Rating
No Enclosure
Process Media Temperature - Maximum
160 Degrees F
Operating Temperature - Minimum
30 Degrees F
Case Liquid
Glycerin
Primary Scale Vacuum Measurement - Minimum
0 psi
Compatible with Brand
Universal
Compatible with Series
PRO-300
Primary Scale Pressure Measurement - Minimum
0 psi
Primary Scale Vacuum Measurement - Maximum
20,000 psi

Description

Industrial Pressure Gauge, Nominal Dial Size 2 1/2 in, Accuracy +/-2-1-2 Percent, Gauge Case Material Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Polycarbonate, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Metallic, IP/NEMA Rating Not Rated, Primary Pressure Range 0 to 20,000, Dry Dampening Feature None, Vibration Resistance Liquid-Filled, Dial Color White
