Pic Gauges Industrial Pressure Gauge, 0 to 3,000 psi, 2 in Dial, 1/4 in NPT, Center Back Location PRO-302D-204P-01 - main

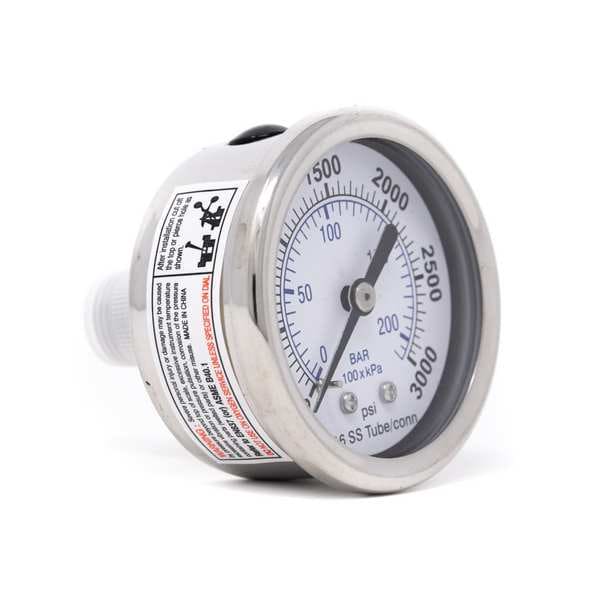

Industrial Pressure Gauge, 0 to 3,000 psi, 2 in Dial, 1/4 in NPT, Center Back Location

  • Mfr # PRO-302D-204P-01

  • Zoro # G7287368

product price:  $16.95
/ea

Key Features

Accuracy
+/-3-2-3%
Process Connection Location
Center Back
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
2 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
PRO-302D-204P-01
Zoro #
G7287368
UPC #
-
Country of Origin
India

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
2 in
Manufacturer Warranty Length
1 yr
Nominal Dial Size
2 in
Nominal Dial Diameter
2 in

Details

Item
Industrial Pressure Gauge
Accuracy
+/-3-2-3%
Process Connection Location
Center Back
Process Connection Type
NPT
Application
General Purpose
Gauge Case Material
Stainless Steel
Series
300
Lens Material
Plastic
Primary Pressure Range
0 to 3,000
Primary Scale Units
psi
IP/NEMA Rating
Not Rated
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Calibration Certificate Included
No
Gauge Primary Range Smallest Graduation
500
Socket Material
316 Stainless Steel
Graduations
500 psi
Gauge Primary Range Numbered Graduations
500
Case Material
Stainless Steel
Case Color
Metallic
Gauge Secondary Range Values
0 to 200
Gauge Special Options
Field Liquid Fillable
Includes
Vent Plug
Standards
ASME
Connection Type
MNPT
Includes Vent Plug
No
Pointer Color
Black
Pressure Gauge Type
Industrial Pressure Gauge
Accuracy Grade
ASME B40.100 Grade A, ASME B40.100 Grade B
Sensor Material
316 Stainless Steel
Process Connection Gender
Male
Primary Scale Minor Graduations
500
Includes Calibration Certificate
No
Pointer Material
Aluminum
Ambient Operating Temperature Range
-30 Degrees to 180 Degrees F
Freeze Resistant Movement
No
Field Fillable
Yes
Secondary Scale Units
bar
Secondary Pressure Range
0 to 207
Dial Color
White
Non-Sparking
No
Bezel Material
Stainless Steel
Includes Mounting Hardware
No
Cleaned for Oxygen Service
No
Vibration Resistance
Field-Fillable
Scale Type
Dual
Dry Dampening Feature
None
Removable Bezel
No
Accuracy Scale
Mid-Scale
Pressure Range Type
Pressure
Primary Scale Numeric Increments
500
Gauge Case Liquid
None
Bezel Mounting Type
Crimped
Operating Temperature Range
-30 Degrees to 180 Degrees F
Compatible with Brand
Universal
Case Liquid
None
Secondary Scale Vacuum Measurement - Minimum
0 bar
Primary Scale Vacuum Measurement - Minimum
0 psi
Secondary Scale Pressure Measurement - Maximum
207 bar
Operating Temperature - Minimum
-30 Degrees F
Process Media Temperature - Minimum
-30 Degrees F
Primary Scale Pressure Measurement - Maximum
3,000 psi
Operating Temperature - Maximum
180 Degrees F
Secondary Scale Pressure Measurement - Minimum
0 bar
Compatible with Series
300
NEMA Enclosure Rating
No Enclosure
Process Media Temperature - Maximum
180 Degrees F
Primary Scale Pressure Measurement - Minimum
0 psi
Secondary Scale Vacuum Measurement - Maximum
200 bar
Primary Scale Vacuum Measurement - Maximum
3,000 psi

Description

Industrial Pressure Gauge, Nominal Dial Size 2 in, Accuracy +/-3-2-3 Percent, Gauge Case Material Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Plastic, Process Connection Size 1/4 in, Field Fillable Yes, Process Connection Location Center Back, Case Color Metallic, IP/NEMA Rating Not Rated, Primary Pressure Range 0 to 3,000, Dry Dampening Feature None, Vibration Resistance Field-Fillable, Dial Color White
