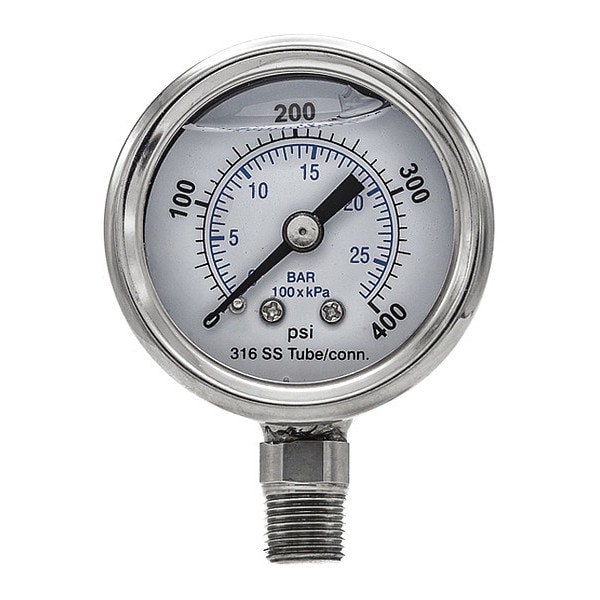

Industrial Pressure Gauge, 0 to 400 psi, 1 1/2 in Dial, 1/8 in NPT, Bottom Location

  • Mfr # PRO-301L-158I-01

  • Zoro # G7951458

product price:
$
16.69
/ea

Key Features

Accuracy
+/-2-1-2%
Process Connection Location
Bottom
Process Connection Size
1/8 in
Process Connection Type
NPT
Dial Size (In.)
1 1/2 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
PRO-301L-158I-01
Zoro #
G7951458
UPC #
-
Country of Origin
India

Dimensions

Process Connection Size
1/8 in
Dial Size (In.)
1 1/2 in
Manufacturer Warranty Length
1 yr
Nominal Dial Size
1 1/2 in
Nominal Dial Diameter
1 1/2 in

Details

Item
Industrial Pressure Gauge
Accuracy
+/-2-1-2%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
General Purpose
Gauge Case Material
Stainless Steel
Series
300
Lens Material
Polycarbonate
Primary Pressure Range
0 to 400
Primary Scale Units
psi
IP/NEMA Rating
Not Rated
Liquid-Filled Case
Yes
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Case Material
Stainless Steel
Gauge Filled With
Glycerin
Socket Material
316 Stainless Steel
Gauge Primary Range Smallest Graduation
50
Case Color
Metallic
Includes
Vent Plug
Graduations
50 psi
Gauge Secondary Range Values
0 to 28
Gauge Primary Range Numbered Graduations
50
Calibration Certificate Included
No
Standards
ASME
Connection Type
MNPT
Vibration Resistance
Liquid-Filled
Ambient Operating Temperature Range
30 Degrees to 160 Degrees F
Accuracy Grade
ASME B40.100 Grade A
Secondary Scale Units
bar
Pointer Color
Black
Includes Vent Plug
No
Process Connection Gender
Male
Sensor Material
316 Stainless Steel
Bezel Mounting Type
Fixed
Includes Calibration Certificate
No
Non-Sparking
No
Dry Dampening Feature
None
Includes Mounting Hardware
No
Dial Face Material
Stainless Steel
Primary Scale Minor Graduations
50
Primary Scale Numeric Increments
50
Bezel Material
Stainless Steel
Accuracy Scale
Mid-Scale
Removable Bezel
No
Freeze Resistant Movement
No
Scale Type
Dual
Dial Color
White
Secondary Pressure Range
0 to 27.6
Pressure Gauge Type
Industrial Pressure Gauge
Gauge Case Liquid
Glycerin
Pressure Range Type
Pressure
Cleaned for Oxygen Service
No
Pointer Material
Aluminum
Field Fillable
No
Operating Temperature Range
-30 Degrees to 180 Degrees F
Secondary Scale Pressure Measurement - Maximum
27.6 bar
Operating Temperature - Maximum
160 Degrees F
NEMA Enclosure Rating
No Enclosure
Operating Temperature - Minimum
30 Degrees F
Process Media Temperature - Minimum
30 Degrees F
Primary Scale Pressure Measurement - Minimum
0 psi
Compatible with Series
300
Secondary Scale Vacuum Measurement - Maximum
28 bar
Secondary Scale Vacuum Measurement - Minimum
0 bar
Secondary Scale Pressure Measurement - Minimum
0 bar
Primary Scale Pressure Measurement - Maximum
400 psi
Case Liquid
Glycerin
Process Media Temperature - Maximum
160 Degrees F
Compatible with Brand
Universal

Description

Industrial Pressure Gauge, Nominal Dial Size 1 1/2 in, Accuracy +/-2-1-2 Percent, Gauge Case Material Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Polycarbonate, Process Connection Size 1/8 in, Field Fillable No, Process Connection Location Bottom, Case Color Metallic, IP/NEMA Rating Not Rated, Primary Pressure Range 0 to 400, Dry Dampening Feature None, Vibration Resistance Liquid-Filled, Dial Color White
