- Item

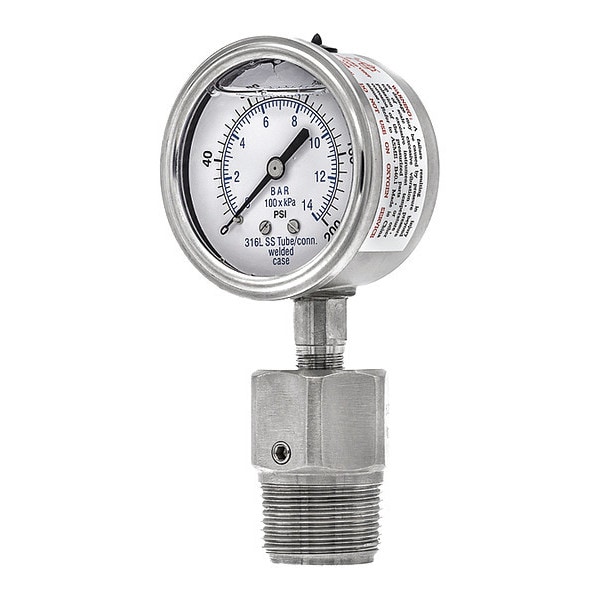

- Pressure Gauge with Diaphragm Seal
- Accuracy
- +/-2-1-2%
- Process Connection Location
- Bottom
- Process Connection Type
- NPT
- Application
- Added Durability
- Gauge Case Material
- Stainless Steel
- Series
- 301L; 5JJJ
- Lens Material
- Polycarbonate
- Primary Pressure Range
- 0 to 200
- Primary Scale Units
- psi
- IP/NEMA Rating
- IP65
- Liquid-Filled Case
- Yes
- Hazardous Location Rating
- Not Rated
- Panel-Mountable
- No
- Blowout Safety Back
- No
- Graduations
- 40 psi
- Socket Material
- Stainless Steel
- Gauge Primary Range Numbered Graduations
- 40
- Gauge Filled With
- Glycerin
- Case Material
- Stainless Steel
- Case Color
- Gray
- Gauge Primary Range Smallest Graduation
- 40
- Calibration Certificate Included
- No
- Gauge Secondary Range Values
- 0 to 14
- Gauge Special Options
- Diaphragm
- Connection Type
- MNPT
- Standards
- ASME B40.100
- Seal Compatible Process Media
- 316 Stainless Steel
- Diaphragm Seal Type
- Threaded
- Adjustable Pointer
- No
- Accuracy Scale
- Mid-Scale
- Ambient Operating Temperature Range
- 30 Degrees to 160 Degrees F
- Seal Diaphragm Material
- 316 Stainless Steel
- Field Fillable
- Yes
- Primary Scale Minor Graduations
- 5
- Dry Dampening Feature
- Anti-Vibration Movement
- Vibration Resistance
- Liquid-Filled
- Bezel Material
- Stainless Steel
- Includes Calibration Certificate
- No
- Sensor Material
- 316 Stainless Steel
- Dial Color
- White
- Compatible Process Media
- Media Compatible with 316 Stainless Steel
- Movement Type
- Anti-Vibration
- Bezel Mounting Type
- Fixed
- Seal Fill Liquid
- Glycerin
- Scale Type
- Dual
- Process Temperature Range
- -40 Degrees to 300 Degrees F
- Accuracy Grade
- ASME B40.100 Grade A
- Case Construction
- Welded
- Primary Scale Numeric Increments
- 40
- Pressure Gauge Type
- Process Pressure Gauge with Diaphragm Seal
- Pointer Material
- Aluminum
- Includes Vent Plug
- No
- Secondary Pressure Range
- 0 to 14
- Case Finish
- None
- Removable Bezel
- No
- Freeze Resistant Movement
- No
- Secondary Scale Units
- bar
- Pressure Range Type
- Pressure
- Seal Lower Housing Material
- 316 Stainless Steel
- Clog Resistant
- No
- Cleaned for Oxygen Service
- No
- Process Connection Gender
- Male
- Gauge Case Liquid
- Glycerin
- Pointer Color
- Black
- Includes Mounting Hardware
- No
- Diaphragm Seal Material
- 316 Stainless Steel
- Operating Temperature Range
- -30 Degrees to 180 Degrees F
- Secondary Scale Pressure Measurement - Minimum
- 0 bar
- Includes Acid Leak Detection
- No Acid Leak Detection Included
- NEMA Enclosure Rating
- No Enclosure
- Operating Temperature - Maximum
- 160 Degrees F
- Process Media Temperature - Maximum
- 300 Degrees F
- Process Media Temperature - Minimum
- -40 Degrees F
- Secondary Scale Vacuum Measurement - Minimum
- 0 bar
- Secondary Scale Vacuum Measurement - Maximum
- 14 bar
- Primary Scale Vacuum Measurement - Maximum
- 200 psi
- IP Rating
- IP65
- Primary Scale Pressure Measurement - Maximum
- 200 psi
- Primary Scale Pressure Measurement - Minimum
- 0 psi
- Operating Temperature - Minimum
- 30 Degrees F
- Secondary Scale Pressure Measurement - Maximum
- 14 bar
- Case Liquid
- Glycerin
- Primary Scale Vacuum Measurement - Minimum
- 0 psi
