  9. Vacuum Gauge, 1/8 in. NPT, 2 in.

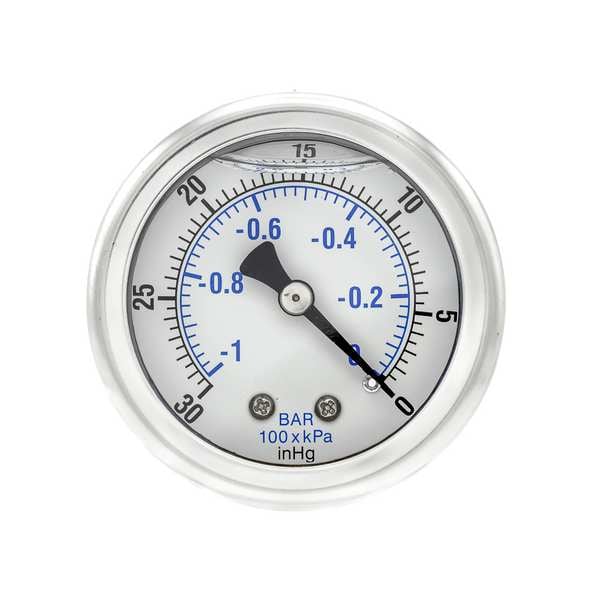

Pic Gauges Vacuum Gauge, 1/8 in. NPT, 2 in. 202L-208A - main

Vacuum Gauge, 1/8 in. NPT, 2 in.

  • Mfr # 202L-208A

  • Zoro # G5119549

product price: $16.79
/ea

Key Features

Pressure and Vacuum Gauge Type
Vacuum Gauge
Gauge Application
Corrosion-Resistant Case
Liquid Filled
Yes
Gauge Nominal Dial Size
2 in
Basic Gauge Case Material
Stainless Steel
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
202L-208A
Zoro #
G5119549
UPC #
-
Country of Origin
China

Dimensions

Gauge Nominal Dial Size
2 in
Gauge Connection Size
1/8 in
Connection Size
1/8 in NPT
Manufacturers Warranty Length
1 yr
Case Diameter
2.28 in
Case Depth
1.18 in
Nominal Dial Size
2 in
Process Connection Size
1/8 in
Manufacturer Warranty Length
1 yr
Nominal Dial Diameter
2 in

Details

Pressure and Vacuum Gauge Type
Vacuum Gauge
Gauge Application
Corrosion-Resistant Case
Liquid Filled
Yes
Basic Gauge Case Material
Stainless Steel
Basic Gauge Wetted Parts
Copper
Gauge Connection Type
MNPT
Gauge Connection Location
Center Back
Gauge Primary Range Units
in Hg
Range
30 in to 0 in Hg Vac
Gauge Primary Range Smallest Graduation
0.5
Basic Gauge Socket Material
Copper
Includes
Vent Plug
Gauge Case Material
Stainless Steel
Gauge Panel Mountable
No
Gauge Sensor Material
Copper Alloy
Case Color
Metallic
Basic Gauge Sensor Material
Copper
Gauge Socket Material
Copper Alloy
Series
202L
Gauge Lens Material
Polycarbonate
Gauge Filled With
Glycerin
Gauge Case Color
Stainless Steel
Operating Temp. Range
30 Degrees to 160 Degrees F
Item
Industrial Vacuum Gauge
Smallest Graduation
0.5 in Hg
Basic Gauge Lens Material
Plastic
Gauge Accuracy
+/-3-2-3%
Calibration Certificate Included
No
Gauge Primary Range Values
-30 to 0
Connection Location
Center Back
Accuracy Grade
ASME B40.100 Grade B
Dial Face Material
Aluminum
Case Material
Stainless Steel
Bezel Mounting Type
Removable
Process Connection Location
Center Back
Secondary Pressure Range
-1 to 0 bar
Scale Type
Dual
Pointer Color
Black
Vibration Resistance
Liquid-Filled
Ambient Operating Temperature Range
30 Degrees to 160 Degrees F
Liquid-Filled Case
Yes
Dial Color
White
Sensor Material
Copper Alloy
Non-Sparking
No
Freeze Resistant Movement
No
Field Fillable
No
Cleaned for Oxygen Service
No
Accuracy Scale
Mid-Scale
Includes Calibration Certificate
No
Includes Mounting Hardware
No
Case Construction
Stainless Steel
Process Connection Gender
Male
Hazardous Location Rating
Not Rated
Secondary Scale Units
bar
Application
General Purpose
Socket Material
Copper Alloy
Process Connection Type
NPT
Primary Pressure Range
30 to 0
Primary Scale Units
in Hg
Bezel Material
Stainless Steel
Includes Vent Plug
Yes
Pressure Gauge Type
Industrial Pressure Gauge
Blowout Safety Back
No
Lens Material
Polycarbonate
Pressure Range Type
Vacuum
IP/NEMA Rating
Not Rated
Dry Dampening Feature
None
Removable Bezel
No
Primary Scale Minor Graduations
0.5
Gauge Case Liquid
Glycerin
Standards
ASME
Panel-Mountable
No
Pointer Material
Aluminum
Accuracy
+/-3-2-3%
Process Media Temperature - Maximum
160 Degrees F
Secondary Scale Vacuum Measurement - Maximum
0 bar
Process Media Temperature - Minimum
30 Degrees F
Secondary Scale Pressure Measurement - Maximum
0 bar
Operating Temperature - Maximum
160 Degrees F
Case Liquid
Glycerin
Primary Scale Vacuum Measurement - Minimum
0 in Hg
Secondary Scale Vacuum Measurement - Minimum
-1 bar
Primary Scale Vacuum Measurement - Maximum
0 psi
Secondary Scale Pressure Measurement - Minimum
-1 bar
Compatible with Series
202L
Compatible with Brand
Universal
Primary Scale Pressure Measurement - Minimum
-30 psi
NEMA Enclosure Rating
No Enclosure
Operating Temperature - Minimum
30 Degrees F
Primary Scale Pressure Measurement - Maximum
0 psi

Description

Industrial Vacuum Gauge, Nominal Dial Size 2 in, Accuracy +/-3-2-3 Percent, Gauge Case Material Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Polycarbonate, Process Connection Size 1/8 in, Field Fillable No, Process Connection Location Center Back, Case Color Metallic, IP/NEMA Rating Not Rated, Primary Pressure Range 30 to 0, Dry Dampening Feature None, Vibration Resistance Liquid-Filled, Dial Color White
