  9. Handheld Micromanometer, Type Digital
Tsi Alnor

Handheld Micromanometer, Type Digital

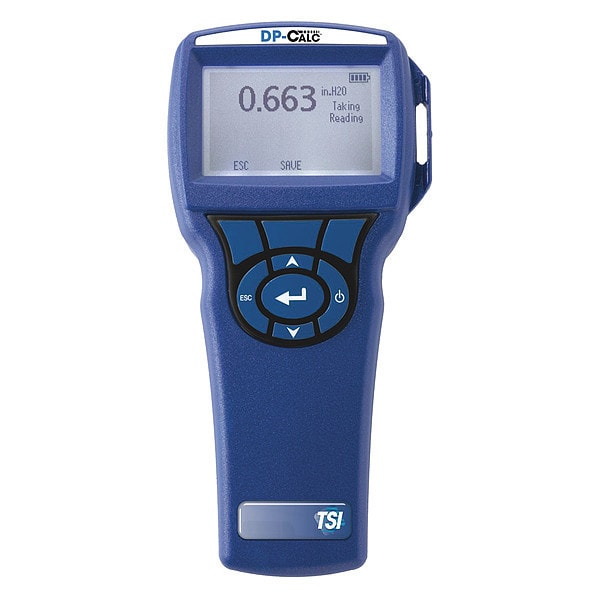

Tsi Alnor Handheld Micromanometer, Type Digital 5815
Tap to zoom
Hover or click to zoom
$560.00
  • Item: Digital Manometer
  • For Use With: Pitot Tube
  • Type: Digital
See full product details
This item ships free.
Total: $560.00

Tsi Alnor #5815 Specifications

  • Item: Digital Manometer
  • For Use With: Pitot Tube
  • Type: Digital
  • Pressure Range: 0 to 38 in wc
  • Accuracy: +/-1%
  • Operating Temp. Range: 40 Degrees to 113 Degrees F
  • Velocity: 250 to 15,500 fpm
  • Calibration Certificate Included: Yes, NIST
  • Standards and Approvals: No
  • Alarm: No
  • Display: Backlit
  • Manufacturers Warranty Length: 2 yr
  • Includes: (4) Alkaline Batteries, Calibration Certificate, Hard Carrying Case, Instrument, Operation and Service Manual
  • Storage Temp. Range: -40 Degrees to 140 Degrees F
  • Data Storage: None, Uses Storage on Compatible iOS or Android Device
  • Resolution: 0.02 in wc
  • Max. Pressure: 7 psi
  • Connection Type: Fits 3/16 in ID Tubing
  • Operating Range: 0 to 3.73 kPa
  • Battery Type: (4) AA
  • Number of Pressures Measured: Dual
  • Connections: 3/16 in Hose Barb
  • Batteries Required: Yes
  • (hidden) Connections: 3/16 in Hose Barb
  • Manometer Type: General Purpose Digital Manometer
  • (hidden) accuracy builder: +/-1.00% of Reading 5815
  • Series: DP-CALC
  • Maximum Operating Temperature: 113 Degrees F
  • Minimum Operating Temperature: 40 Degrees F
  • Storage Temperature Range: -4 Degrees to 140 Degrees F
  • NIST Traceable Certificate: Yes
  • Display Units: hPa, in H2O, kPa, mm Hg, Pa
  • (hidden) Smartphone Type: TSI ALNOR 5815
  • Minimum Pressure: -15 in wc
  • For Tubing Diameter: 3/16 in
  • Batteries Included: Yes
  • Type of Pressure: Differential
  • Operating Pressure Range: -15 to +15 in. H2O
  • Digital Display Features: Digit Backlit
  • Application: Air
  • Maximum Pressure: 15 in wc
  • Data Hold: No
  • Process Connection Size: 3/16 in
  • Standards: ISO Certified
  • (hidden) manometer builder: TSI ALNOR 5815
  • Process Connection Type: Hose Barb
  • Weight: 0.6 lb
  • Maximum Operating Pressure: 15 in wc
  • Country of Origin (subject to change): United States

Description

Handheld Micromanometer, Type Digital, Pressure Range 0 to 38 in wc, Operating Range 0 to 3.73 kPa, Max. Pressure 7 psi, Accuracy +/-1.0 Percent, Display Backlit, Velocity 250 to 15,500 fpm, Resolution 0.02 in wc, Operating Temp. Range 40 Degrees to 113 Degrees F, Storage Temp. Range -40 Degrees to 140 Degrees F, For Use With Pitot Tube, Standards and Approvals No, Data Storage None, Uses Storage on Compatible iOS or Android Device, Alarm No, Connection Type Fits 3/16 in ID Tubing
