Safety Relay
Mfr # 774500
Zoro # G823561808
product price:Â
$
837.99
/ea
Free Shipping & Returns
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 774500
- Zoro #
- G823561808
- UPC #
- -
- Country of Origin
- Germany
Description

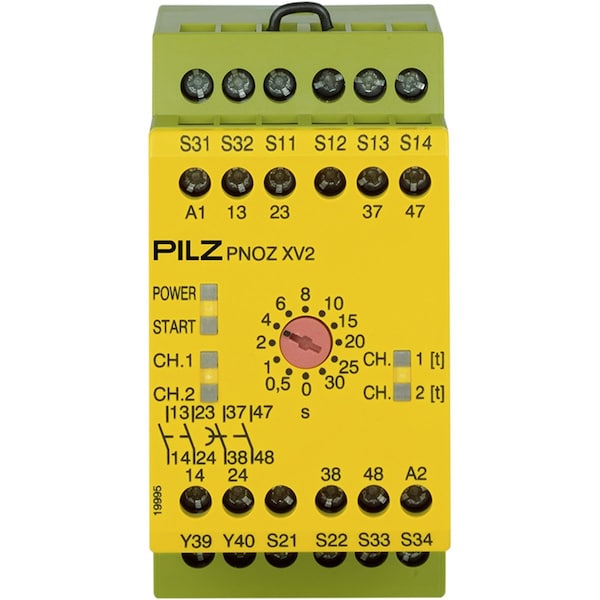

Industrial safety relay designed for emergency stop (E-STOP) and safety gate monitoring in machine safety systems. It provides reliable delayed safety switching with configurable time functions for controlled machine shutdown. Specifications: -Type: Safety Relay (Standalone) -Series: PNOZ XV2 -Supply Voltage: 24V DC -Inputs: 1-/2-channel safety input with short circuit detection -Safety Outputs: 2 N/O (instantaneous) + 2 N/O (delayed) -Contact Rating: 5-8 A (AC15 / DC13 depending on load) -Switching Voltage: Up to 240V AC / 24V DC -Delay Function: Adjustable 0.1 s to 30 s (multiple selectable steps) -Start Mode: Automatic / manual reset selectable -Mounting Type: DIN Rail (45 mm width) -Connection Type: Screw Terminal -Housing Material: ABS / PC (flame retardant UL 94 V0) -Protection Class: IP40 (housing), IP20 (terminals) -Operating Temperature: -10 deg C to +55 deg C -Application: E-STOP, safety gates, delayed shutdown systems -Standards: EN ISO 13849-1, EN 60204-1, EN 60947-5-1
Restrictions
This item has been restricted from sale in the following states:
CA
