Safety Relay
Mfr # 750105
Zoro # G623561848
product price:Â
$
643.99
/ea
Free Shipping & Returns
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 750105
- Zoro #
- G623561848
- UPC #
- -
- Country of Origin
- Germany
Description

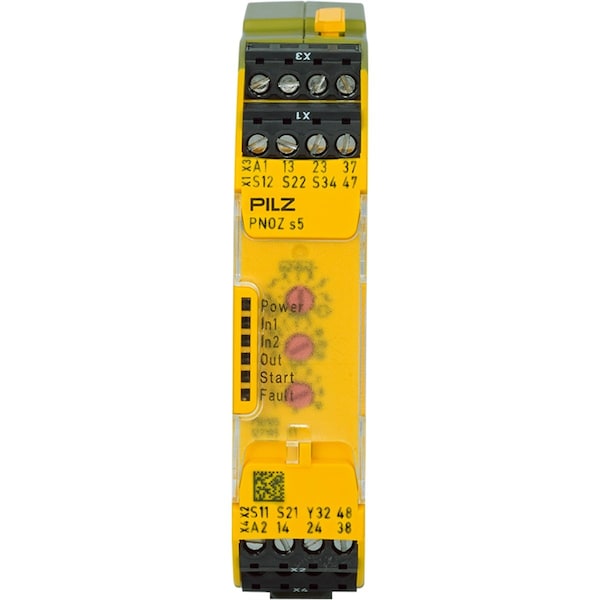

This is a standalone safety relay from the PNOZsigma series designed for monitoring emergency stop circuits and safety gates. It includes a time delay function for safety-related switching applications in industrial machines. Specifications: -Model: PNOZ s5 / Product ID: 750105 -Type: Safety relay (standalone device) -System: PNOZsigma series -Function: E-STOP, safety gate, light curtain monitoring -Input Configuration: 1/2-channel wiring with/without short circuit detection -Safe Outputs: 2 N/O + 2 N/O (time delayed) + 1 auxiliary semiconductor output -Time Range: 0.04 s to 300 s adjustable -Supply Voltage: 24 V DC -Power Consumption: 4 W -Mounting: DIN rail (22.5 mm width) -Terminal Type: Plug-in screw terminals -Housing Material: Polycarbonate (PC) -Protection Class: IP40 (housing), IP20 (terminals) -Operating Temperature: -10 deg C to +55 deg C -Dimensions: 98 x 22.5 x 120 mm
