  5. Electric Operated Drum Pump, 12VDC, 9 Max. Flow Rate , 23/64 HP, Cast iron, 3/4" Inlet

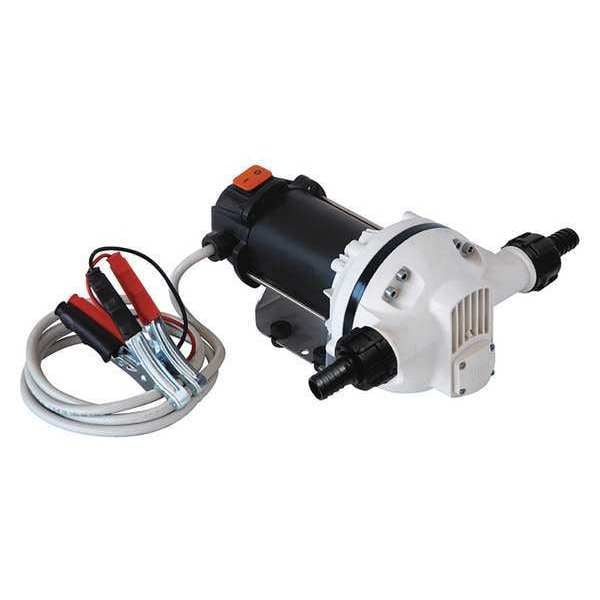

Piusi Electric Operated Drum Pump, 12VDC, 9 Max. Flow Rate , 23/64 HP, Cast iron, 3/4" Inlet F00204080 - main

Electric Operated Drum Pump, 12VDC, 9 Max. Flow Rate , 23/64 HP, Cast iron, 3/4" Inlet

  • Mfr # F00204080

  • Zoro # G8500068

product price:  $355.99
/ea
Free Shipping & Returns

Key Features

Voltage
12VDC
HP
23/64
Housing Material
Cast iron
GPM
9
Inlet Size
3/4"
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
F00204080
Zoro #
G8500068
UPC #
810015630082
Country of Origin
Italy

Dimensions

Inlet Size
3/4"
Outlet Size
1"
Manufacturers Warranty Length
2 yr. Manufacturing Defects
Cord Length
72 in
Overall Length
14 in
For Container Size
275 gal, 330 gal

Details

Voltage
12VDC
HP
23/64
Housing Material
Cast iron
GPM
9
Seal Material
NBR
Self-Priming
Yes
Max. Viscosity
1 cps
Item
Electric Operated Drum Pump
Max. GPM for Water
43
Adapter Type
PDC
Metered
No
Agency Compliance
ISO 22241
Motor Enclosure
OAO
Motor Type
Brushed DC Motor
Max. Liquid Temp.
104 Degrees F
Duty
Intermittent
Max. Head
13 ft.
Max. Pressure
23 psi
Motor RPM
2,800 RPM
Features
COMPATIBLE WITH DEF
Includes
PUMP
Wetted Materials
Delrin, EPDM Nylon, NBR, Stainless steel
Adapter Material
Polypropylene, Stainless Steel
For Use With
50/50 Antifreeze, Diesel Exhaust Fluid
Duty Cycle
Intermittent
Max. Head - Pumps
45 ft
Includes Suction Tube
Yes
Max. Head Pressure
22 psi
Runs Dry
No
Noise Level
75 db
Compatible Chemicals
Antifreeze (Coolant), DEF
Max. Fluid Temp.
104 Degrees F
Includes Bung Adapter
No
For Container Type
Tote
Diesel Exhaust Fluid Compatible
Yes
Includes Nozzle
No
Thermal Protection
No
Pump Connection OD
3/4 in
Housing Material - Pumps
Nylon
Motor HP
1/10 hp
Pump Connection Type
Hose Barb
Food Grade
No
For Media Type
Antifreeze, DEF
Pump Connection ID
3/4 in
Full Load Amps
22.0 A
Discharge Connection Type
Hose Barb
Min. Fluid Temp.
12 Degrees F
Includes Discharge Hose
No
Variable Speed
No
Series
NO
Max. Flow Rate
9 gpm
Power Source
Electric
Gear Lube
NT
Rated Voltage
12V DC
Grease
NT
Max. Outlet Pressure
22 psi
Explosion Proof
No

Description

Electric Drum Pump, Max. Head Pressure 22 psi, Max. Outlet Pressure 22 psi, For Use With 50/50 Antifreeze, Diesel Exhaust Fluid, Rated Voltage 12 V DC, Pump Connection ID 1 in, Hose Length Not Applicable, Cord Length 72 in, Includes Bung Adapter No, Runs Dry No, Nozzle Operation Not Applicable, Thermal Protection No, Power Source Corded Electric, Variable Speed No, Includes Discharge Hose No, Self-Priming Yes, Compatible Chemicals Antifreeze (Coolant), DEF, Discharge Connection Type Hose Barb
