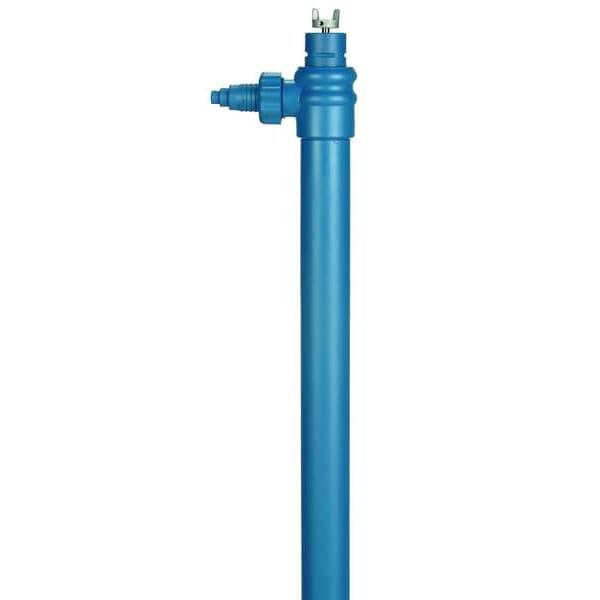

Drum Pump Tube, Suction Tube 48 L

Mfr # DPFP007
Zoro # G3316433

$437.66

4% off

$416.99

Free Shipping & Returns

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

For Use With PF
Suction Tube Type Constant
Overall Length 50 in
Discharge Tube Outlet ID Size 1"
Max. Viscosity 2000 CPS

See all product information

Brand Finish Thompson
MFR # DPFP007
Zoro # G3316433
UPC #
638845478212
Country of Origin United States
Category Fuel Transfer Accessories

Dimensions

Overall Length	50 in
Discharge Tube Outlet ID Size	1"
Suction Tube Length	48 in
Discharge Tube Outlet OD Size	1-7/16"
Outlet Size	1 in Barb
Height	48"
For Container Size	55 gal, 275 gal

Details

Item	Drum Pump Tube
For Use With	PF
Suction Tube Type	Constant
Max. Viscosity	2000 CPS
Seal Material	FKM
Adapter Material	Polypropylene
Wetted Materials	Polypropylene, PTFE, PVDF, Viton, Alloy 625
Self-Priming	Yes
Food Grade	No
Diesel Exhaust Fluid Compatible	No
Max. Fluid Temp.	160 Degrees F
Series	PF
For Container Type	Drum, Tote
Min. Fluid Temp.	35 Degrees F
Discharge Tube Outlet OD	1 7/16 in
Suction Tube ID	2 in
Max. Flow Rate	40 gpm
Max. Head	80 ft
Suction Tube OD	1 3/16 in
For Media Type	Acetic Acid, Citric Acid, Formic Acid, Hydrochloric Acid, Phosphoric Acid (40% Solution), Sulfuric Acid, Antifreeze, Ethylene Glycol, Calcium Chloride, Sodium Bicarbonate, Ammonium Hydroxide, Sodium Hydroxide, Potassium Hydroxide (50%), Water, Sodium Bisulfate, Sodium Bisulfite, Fertilizers, Fungicides, Herbicides
Runs Dry	No
Not Recommended Chemicals	Acetic Acid (Glacial), Chromic Acid 5%, Chromic Acid 10%, Chromic Acid 30%, Chromic Acid 50%, Hydrofluoric Acid (20%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Nitric Acid (10% Solution), Nitric Acid (20% Solution), Nitric Acid (50% Solution), Nitric Acid (Concentrated Solution), Sulfuric Acid (75% - 100%), Acetone, Methyl Ethyl Ketone (MEK), Ethyl (Ethanol), Isopropyl (Isopropanol), Methyl (Methanol), Glycerin, Cyclohexane, Gasoline, Heptane, Hexane, Kerosene, Stoddard Solvent (Mineral Spirits), Diesel Fuel, Hydraulic Oils (Petroleum), Hydraulic Oils (Synthetic), Ethyl Acetate, Biodiesel, Formaldehyde 40%, Formaldehyde, Hydrazine, Sodium Hypochlorite/Bleach (to 20%), Lacquer Thinners, Toluene, Xylene, Trichlorethylene (50%), DEF, E85, Anhydrous Ammonia, Ammonia (Liquids), Automatic Transmission Fluid, Brake Fluid, Naphtha, Paint Thinner, Turpentine, Windshield Washer Fluid
Suction Tube Material	Polypropylene
Discharge Connection Type	Hose Barb
Compatible Chemicals	Acetic Acid 20%, Acetic Acid 80%, Citric Acid 50%, Formic Acid, Hydrochloric/Muriatic Acid (20%), Hydrochloric/Muriatic Acid (37%), Hydrochloric/Muriatic Acid (100%), Phosphoric Acid (40% Solution), Sulfuric Acid (to 10%), Sulfuric Acid (10% - 75%), Antifreeze (Coolant), Ethylene Glycol, Calcium Chloride, Sodium Bicarbonate (10%), Ammonium Hydroxide, Sodium Hydroxide/Caustic Soda (20%), Sodium Hydroxide/Caustic Soda (50%), Sodium Hydroxide/Caustic Soda (80%), Potassium Hydroxide (50%), Fresh Water, Salt Water, Deionized Water, Sodium Bisulfate, Sodium Bisulfite, Fertilizers, Fungicides, Herbicides
Discharge Tube Outlet ID	1 in
Max. Head Pressure	34.6 psi
Grease	NT
Gear Lube	NT

Description

Drum Pump Tube, Suction Tube Length 48 in, Pump Package Type Drum Pump Tube, Suction Tube Material Polypropylene, Suction Tube ID 2 in, Suction Tube OD 1 3/16 in, Discharge Tube Outlet ID 1 in, Discharge Tube Outlet OD 1 7/16 in, Discharge Connection Type Hose Barb, Overall Length 50 in, For Container Size 55 gal, 275 gal, For Container Type Drum, Tote, Max. Flow Rate 40 gpm, Max. Viscosity 2000 CPS, Min. Fluid Temp. 35 Degrees F, Max. Fluid Temp. 160 Degrees F, Max. Head 80 ft
