  9. Electric Operated Drum Pump, 12VDC, 9 Max. Flow Rate , Polyethylene

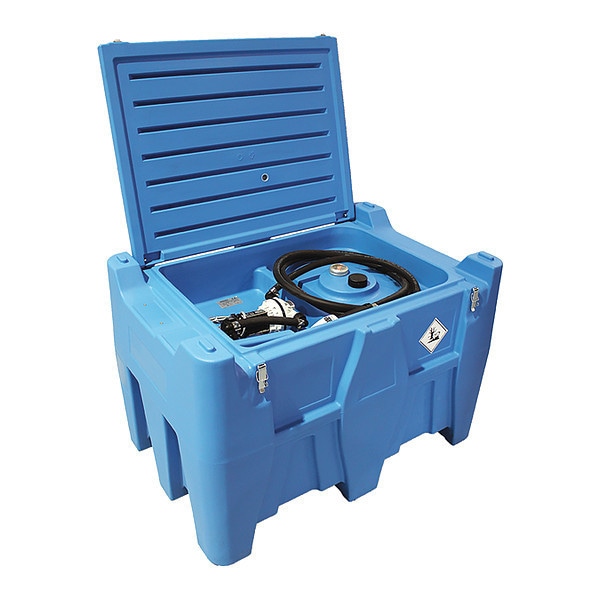

Piusi Electric Operated Drum Pump, 12VDC, 9 Max. Flow Rate , Polyethylene F00102010 - main

Electric Operated Drum Pump, 12VDC, 9 Max. Flow Rate , Polyethylene

  • Mfr # F00102010

  • Zoro # G8500180

product price: $2,518.99
/ea
Additional $170.00 delivery surcharge applies per item.
See details

Key Features

Voltage
12VDC
Application
Agriculture, Automotive, Fleet, Industrial, Marine, Off-Road
Housing Material
Polyethylene
GPM
9
Seal Material
NBR
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
F00102010
Zoro #
G8500180
UPC #
810015630532
Country of Origin
Italy

Dimensions

Discharge Tube Length
20 ft.
Manufacturers Warranty Length
2 yr. Manufacturing Defects
Hose Length
12 ft
Cord Length
72 in
Hose Inside Dia.
3/4 in
Hose Outside Dia.
1 1/8 in
For Container Size
110 gal
Bung Connection Dia.
2 in
Spout Discharge Size
3/5 in

Details

Voltage
12VDC
Application
Agriculture, Automotive, Fleet, Industrial, Marine, Off-Road
Housing Material
Polyethylene
GPM
9
Seal Material
NBR
Self-Priming
Yes
Max. Viscosity
1 cps
Item
Electric Operated Drum Pump
Includes
ADPATER, DELIVERY HOSE, DISCHARGE HOSE, METER, NOZZLE , PUMP, TANK
Features
COMPATIBLE WITH DEF
Adapter Type
1" BSP
Hose Material
EPDM
Adapter Material
Stainless Steel
Wetted Materials
Delrin, EPDM Nylon, NBR, Stainless steel
Agency Compliance
ISO 22241
For Use With
Diesel Exhaust Fluid
Max. Liquid Temp.
104 Degrees F
Metered
Yes
Motor Type
Brushed DC Motor
Nozzle Material
Nylon, Stainless Steel, Viton
Duty Cycle
Intermittent
Motor Enclosure
OAO
Full Load Amps
22.0 A
Food Grade
No
Noise Level
75 db
Pump Connection Type
Hose Barb
Includes Bung Adapter
Yes
Power Source
Electric
Hose Cover Material
EPDM
Discharge Tube Outlet ID
3/4 in
Compatible Chemicals
Antifreeze (Coolant), DEF
Includes Nozzle
Yes
Discharge Connection Type
Hose Barb
Pump Connection OD
1 in
Motor HP
1/10 hp
Suction Tube ID
3/4 in
Thermal Protection
No
Max. Fluid Temp.
104 Degrees F
Max. Head - Pumps
45 ft
Max. Flow Rate
9 gpm
For Media Type
Antifreeze, DEF
Series
NO
Min. Fluid Temp.
12 Degrees F
Nozzle Operation
Automatic
Motor RPM
2,800 RPM
Suction Tube Material
Polypropylene
Max. Head Pressure
22 psi
Includes Discharge Hose
Yes
For Container Type
Tote
Diesel Exhaust Fluid Compatible
Yes
Suction Tube OD
1 1/8 in
Runs Dry
No
Variable Speed
No
Housing Material - Pumps
Nylon
Includes Suction Tube
Yes
Includes Spout
Yes
Pump Connection ID
1 in
Discharge Tube Outlet OD
1 1/8 in
Spout Material
Stainless Steel
Hose Tube Material
EPDM
Gear Lube
NT
Max. Outlet Pressure
22 psi
Adapter Connection Type
Buttress
Grease
NT
Explosion Proof
No
Rated Voltage
12V DC

Description

Electric Drum Pump, Hose Inside Dia. 3/4 in, Max. Head Pressure 22 psi, Max. Outlet Pressure 22 psi, For Use With Diesel Exhaust Fluid, Rated Voltage 12 V DC, Pump Connection ID 1 in, Suction Tube OD 1 1/16 in, Hose Length 12 ft, Cord Length 72 in, Includes Bung Adapter Yes, Runs Dry No, Nozzle Operation Automatic, Thermal Protection No, Power Source Corded Electric, Variable Speed No, Includes Discharge Hose Yes, Self-Priming Yes, Compatible Chemicals Antifreeze (Coolant), DEF
