For Use With
|
Corrosive Chemicals, Sodium Hypochlorite-Chlorine Bleach
|
|
Housing Material
|
Polypropylene / PVDF
|
|
Includes
|
Clamp, Hose, Motor, Pump
|
|
Motor Type
|
Universal AC
|
|
Voltage
|
115VAC
|
|
Action Type
|
Piston
|
|
Max. Flow GPM
|
17 gpm
|
|
Application
|
For Transferring Antifreeze Solvents, Thinners, Automotive Additives, industrial Chemicals, Oil Based Fluids and Other Non Corrosive Fluids
|
|
Max. Temp.
|
160 Degrees F
|
|
Discharge Tubing Material
|
PVC
|
|
Wetted Materials
|
316 Stainless Steel and PVC, FKM, Polypropylene, PTFE, PVDF
|
|
Hz
|
60
|
|
Adapter Material
|
Polypropylene
|
|
Adapter Type
|
Bung
|
|
Phase
|
1
|
|
RPM
|
6000 to 13,000
|
|
Max. Liquid Temp.
|
160 Degrees F
|
|
HP
|
1/3
|
|
Agency Compliance
|
CSA
|
|
DEF Compatible
|
No
|
|
GPM
|
7 to 17
|
|
Max. Head
|
5 to 20 ft.
|
|
Max. Viscosity
|
300 cps
|
|
Seal Material
|
Fluoroelastomer
|
|
Standards
|
CSA Certified
|
|
Max. GPM for Water
|
17
|
|
Suction Tube Type
|
Intake Tube
|
|
Motor Enclosure
|
ODP
|
|
Item
|

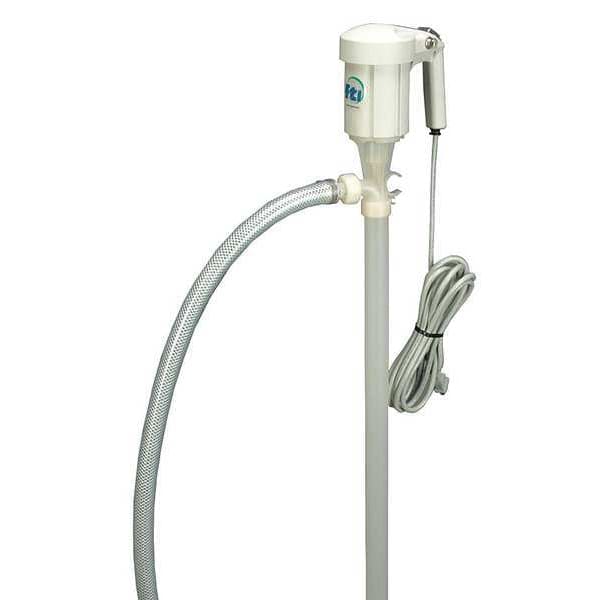

Electric Operated Drum Pump
|
|
Self-Priming
|
Yes
|
|
pH Range
|
1 to 14
|
|
Type
|
Motor and Tube
|
|
Max. Pressure
|
8 psi
|
|
Max. GPM for Oil
|
7
|
|
Metered
|
No
|
|
Includes Discharge Hose
|
Yes
|
|
Includes Nozzle
|
No
|
|
For Media Type
|
Acetic Acid, Ammonium Hydroxide, Antifreeze, Automatic Transmission Fluid, Bleach, Calcium Chloride, Chromic Acid, Citric Acid, Ethylene Glycol, Fertilizers, Formic Acid, Fungicides, Herbicides, Hydrochloric Acid, Nitric Acid, Phosphoric Acid (40% Solution), Sodium Bicarbonate, Sodium Bisulfate, Sodium Bisulfite, Sulfuric Acid, Trichlorethylene, Water
|
|
Plug Type
|
NEMA 5-15
|
|
Runs Dry
|
No
|
|
Noise Level
|
74 db
|
|
Series
|
EF
|
|
Variable Speed
|
Yes
|
|
Frequency (Hz)
|
60 Hz
|
|
Power Source
|
Electric
|
|
Not Recommended Chemicals
|
Acetic Acid (Glacial), Acetone, Ammonia (Liquids), Anhydrous Ammonia, Biodiesel, Brake Fluid, Cyclohexane, DEF, Diesel Fuel, E85, Ethyl (Ethanol), Ethyl Acetate, Formaldehyde, Formaldehyde 40%, Gasoline, Glycerin, Heptane, Hexane, Hydraulic Oils (Petroleum), Hydraulic Oils (Synthetic), Hydrazine, Hydrofluoric Acid (20%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Isopropyl (Isopropanol), Kerosene, Lacquer Thinners, Methyl (Methanol), Methyl Ethyl Ketone (MEK), Naphtha, Nitric Acid (Concentrated Solution), Paint Thinner, Potassium Hydroxide (50%), Sodium Hydroxide/Caustic Soda (20%), Sodium Hydroxide/Caustic Soda (50%), Sodium Hydroxide/Caustic Soda (80%), Stoddard Solvent (Mineral Spirits), Sulfuric Acid (75% - 100%), Toluene, Turpentine, Windshield Washer Fluid, Xylene
|
|
Duty Cycle
|
Continuous
|
|
Discharge Tube Outlet ID
|
3/4 in
|
|
Max. Head - Pumps
|
20 ft
|
|
Full Load Amps
|
2.0 A
|
|
Suction Tube ID
|
1 1/4 in
|
|
Hose Tube Material
|
PVC
|
|
Suction Tube Material
|
Polypropylene
|
|
Compatible Chemicals
|
Acetic Acid 20%, Acetic Acid 80%, Ammonium Hydroxide, Antifreeze (Coolant), Automatic Transmission Fluid, Calcium Chloride, Chromic Acid 10%, Chromic Acid 30%, Chromic Acid 5%, Chromic Acid 50%, Citric Acid 50%, Deionized Water, Ethylene Glycol, Fertilizers, Formic Acid, Fresh Water, Fungicides, Herbicides, Hydrochloric/Muriatic Acid (100%), Hydrochloric/Muriatic Acid (20%), Hydrochloric/Muriatic Acid (37%), Nitric Acid (10% Solution), Nitric Acid (20% Solution), Nitric Acid (50% Solution), Phosphoric Acid (40% Solution), Salt Water, Sodium Bicarbonate (10%), Sodium Bisulfate, Sodium Bisulfite, Sodium Hypochlorite/Bleach (to 20%), Sulfuric Acid (10% - 75%), Sulfuric Acid (to 10%), Trichlorethylene (50%)
|
|
Discharge Tube Outlet OD
|
1 in
|
|
Motor HP
|
1/3 hp
|
|
Diesel Exhaust Fluid Compatible
|
No
|
|
Housing Material - Pumps
|
Polypropylene, PVDF
|
|
Max. Head Pressure
|
8 psi
|
|
Thermal Protection
|
No
|
|
Discharge Connection Type
|
Hose Barb
|
|
Food Grade
|
No
|
|
Number of Phases
|
1
|
|
For Container Type
|
Drum
|
|
Max. Fluid Temp.
|
160 Degrees F
|
|
Pump Connection Type
|
Smooth Bore
|
|
Includes Bung Adapter
|
No
|
|
Includes Suction Tube
|
Yes
|
|
Motor RPM
|
8000 to 14,000
|
|
Max. Flow Rate
|
17 gpm
|
|
Suction Tube OD
|
1 1/4 in
|
|
Min. Fluid Temp.
|
0 Degrees F
|
|
Explosion Proof
|
No
|
|
Grease
|
NT
|
|
Gear Lube
|
NT
|
|
Max. Outlet Pressure
|
8 psi
|
|
Rated Voltage
|
115V AC
|
