Shop PLAST-O-MATIC

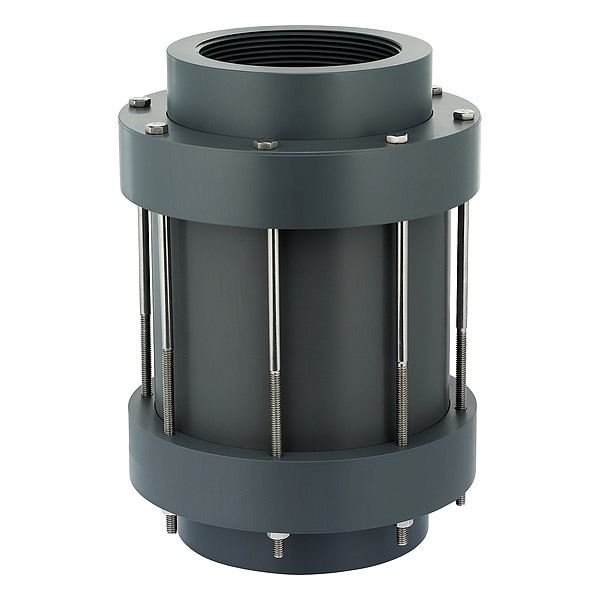

2" FNPT Polypropylene Disc Check Valve

  • Mfr # CKS200VT-NC-PP
  • Zoro # G3971362
product price:
$
394.99
/ea
Free Shipping & Returns

Key Features

Pipe Size
2"
Connection Type
Threaded
Connection
FNPT
Body Material
Polypropylene
Max. Water Pressure - Valves
100 psi @ 75 Degrees F
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CKS200VT-NC-PP
Zoro #
G3971362
UPC #
-
Country of Origin
United States

Dimensions

Pipe Size
2"
Width
4 3/32 in
Pipe or Tube Size - Check Valves
2 in
Overall Height
8 13/32 in
Length
8 3/8 in
Size
2"
Overall Length
8.38 in
Pipe or Tube Size
2 in
Height - Cap to Inlet Center
4 5/8 in
Connection Size - Side 1
2 in
Nominal Valve Size
2 in
Wire Rope Length
8.38 in

Details

Connection Type
Threaded
Connection
FNPT
Body Material
Polypropylene
Max. Water Pressure - Valves
100 psi @ 75 Degrees F
Max. Steam Pressure - Valves
Not Rated
Flow - Valves
45.0 gpm
Item - Check Valves
Check Valve
Cap to Inlet Center
4 5/8 in
Body Material - Valves
Polypropylene
Cracking Pressure
1 psi
Full Flow - Valves
No
Application - Valves
Corrosives
Mounting Position
Any
Seat Material
FKM
Mechanism and Body Design
Inline Disc
Seat Material - Check Valves
Viton
Spring Material
PFA Encapsulated Stainless Steel
Mounting Orientation - Check Valves
Horizontal, Vertical
Min. Temp. - Valves
32 Degrees F
Spring Material - Check Valves
PFA
Sub-Category
Polypropylene
Seal Material
FKM
Flow Design
Single
Max. Pressure
100 psi
Connection Type - Check Valves
FNPT x Socket
Cracking Pressure - Check Valves
1.000 to 1.500 psi
Seal Material - Check Valves
Viton
Max. Temp. - Valves
180 Degrees F
Material of Construction
polypropylene
Max. Temp.
180 Degrees F
Standards
LEAD FREE COMPLIANT
Item
Check Valve
Flow
45 gpm
Mounting Orientation
Horizontal, Vertical
Seal
Viton
For Media
Corrosives
Connection Gender - Side 2
Female
Connection Type - Side 1
NPT
Operating Temperature - Minimum
32 Degrees F
Check Mechanism Material
FKM
Connection Gender - Side 1
Female
Check Mechanism
Poppet
Includes Counterweight
No Counterweight
3-A Standard Compliance
Not Rated
Maximum Pressure - Operating
100 psi
Silent Check
Silent
Valve Body Style
Inline
Maximum Pressure - Steam
Not Rated
Connection Type - Side 2
Socket
Operating Temperature - Maximum
180 Degrees F
Valve Series
CKS

Description

PLAST-O-MATIC CKS200VT-NC is a 2 in inline disc check valve with a polypropylene body for use with compatible corrosive media. This self-acting valve is intended to allow flow in one direction and close to help reduce reverse flow in piping and process systems. It features a single-flow design and a poppet check mechanism, with a 1.000 to 1.500 psi cracking pressure and a rated flow of 45 gpm.

Key Features:

  • 2 in valve size with FNPT x Socket end connections; side 1 has a 1 NPT female connection and side 2 has a socket connection.
  • Polypropylene body with Viton seal and seat materials; check mechanism material: FKM.
  • Inline disc body design with single-flow configuration.
  • Maximum operating pressure: 100 psi; maximum water pressure: 100 psi at 75 Degrees F.
  • Temperature range: 32 Degrees F to 180 Degrees F.
  • Cracking pressure: 1.000 to 1.500 psi.
  • Flow capacity: 45 gpm.
  • Mounting orientation: horizontal or vertical; mounting position: any.
  • Spring material: PFA-encapsulated stainless steel.
  • Overall dimensions: 8.38 in L x 8 13/32 in H x 4 3/32 in W.
