3" FNPT Polypropylene Disc Check Valve

  • Mfr # CKS300VT-NC-PP

  • Zoro # G4107162

product price:
$
756.99
/ea
Free Shipping & Returns

Key Features

Pipe Size
3"
Connection Type
Threaded
Connection
FNPT
Body Material
PolyPro
Standards
LEAD FREE COMPLIANT
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
CKS300VT-NC-PP
Zoro #
G4107162
UPC #
-
Country of Origin
United States
Connection Type
Threaded
Connection
FNPT
Body Material
PolyPro
Standards
LEAD FREE COMPLIANT
Max. Temp. - Valves
180 Degrees F
Max. Steam Pressure - Valves
Not Rated
Spring Material
PFA Encapsulated Stainless Steel
Cracking Pressure - Check Valves
1.000 to 1.500 psi
Seat Material
FKM
Seal Material - Check Valves
Viton
Full Flow - Valves
No
Min. Temp. - Valves
32 Degrees F
Item - Check Valves
Check Valve
Mechanism and Body Design
Inline Disc
Sub-Category
Polypropylene
Flow Design
Single
Max. Water Pressure - Valves
100 psi @ 75 Degrees F
Flow - Valves
100 gpm
Max. Temp.
180 Degrees F
Mounting Orientation - Check Valves
Horizontal, Vertical
Application - Valves
Corrosives
Material of Construction
polypropylene
Seat Material - Check Valves
Viton
Mounting Position
Any
Max. Pressure
100 psi
Item
Check Valve
Body Material - Valves
Polypropylene
Cracking Pressure
1 psi
Spring Material - Check Valves
PFA
Connection Type - Check Valves
FNPT x Socket
Cap to Inlet Center
4 5/8 in
Seal Material
FKM
Flow
100 gpm
Mounting Orientation
Horizontal, Vertical
Seal
Viton
Connection Gender - Side 1
Female
Silent Check
Silent
Maximum Pressure - Operating
100 psi
For Media
Corrosives
Includes Counterweight
No Counterweight
Connection Type - Side 1
NPT
Maximum Pressure - Steam
Not Rated
Connection Type - Side 2
Socket
Connection Gender - Side 2
Female
Operating Temperature - Maximum
180 Degrees F
Operating Temperature - Minimum
32 Degrees F
Valve Body Style
Inline
3-A Standard Compliance
Not Rated
Check Mechanism
Poppet
Check Mechanism Material
FKM
Valve Series
CKS

Description

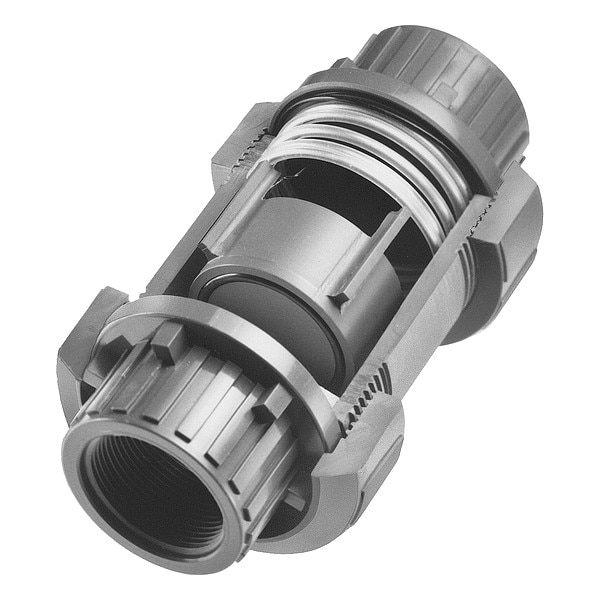

PLAST-O-MATIC CKS300VT-NC-PP is a 3 in. inline disc check valve for one-way flow control with compatible corrosive media. It features a polypropylene body, a poppet-style check mechanism, Viton/FKM seal and seat materials, and a PFA-encapsulated stainless steel spring. Cracking pressure: 1.000 to 1.500 psi. Mounting orientation: horizontal or vertical.

Key Features:

  • 3 in. nominal valve size with FNPT x socket end connections
  • Side 1 female NPT connection and side 2 socket connection
  • Polypropylene body for use with compatible corrosive media
  • Inline disc body design with single-flow configuration
  • Poppet check mechanism with FKM check mechanism material
  • Viton seal and seat materials
  • Rated flow: 100 gpm
  • Maximum operating pressure: 100 psi
  • Maximum water pressure: 100 psi at 75 degrees F
  • Operating temperature range: 32 to 180 degrees F
  • Manufacturer-designated silent check design
  • Overall length: 9.88 in.
  • Overall height: 9 29/32 in.
